10
574
Functions and Display

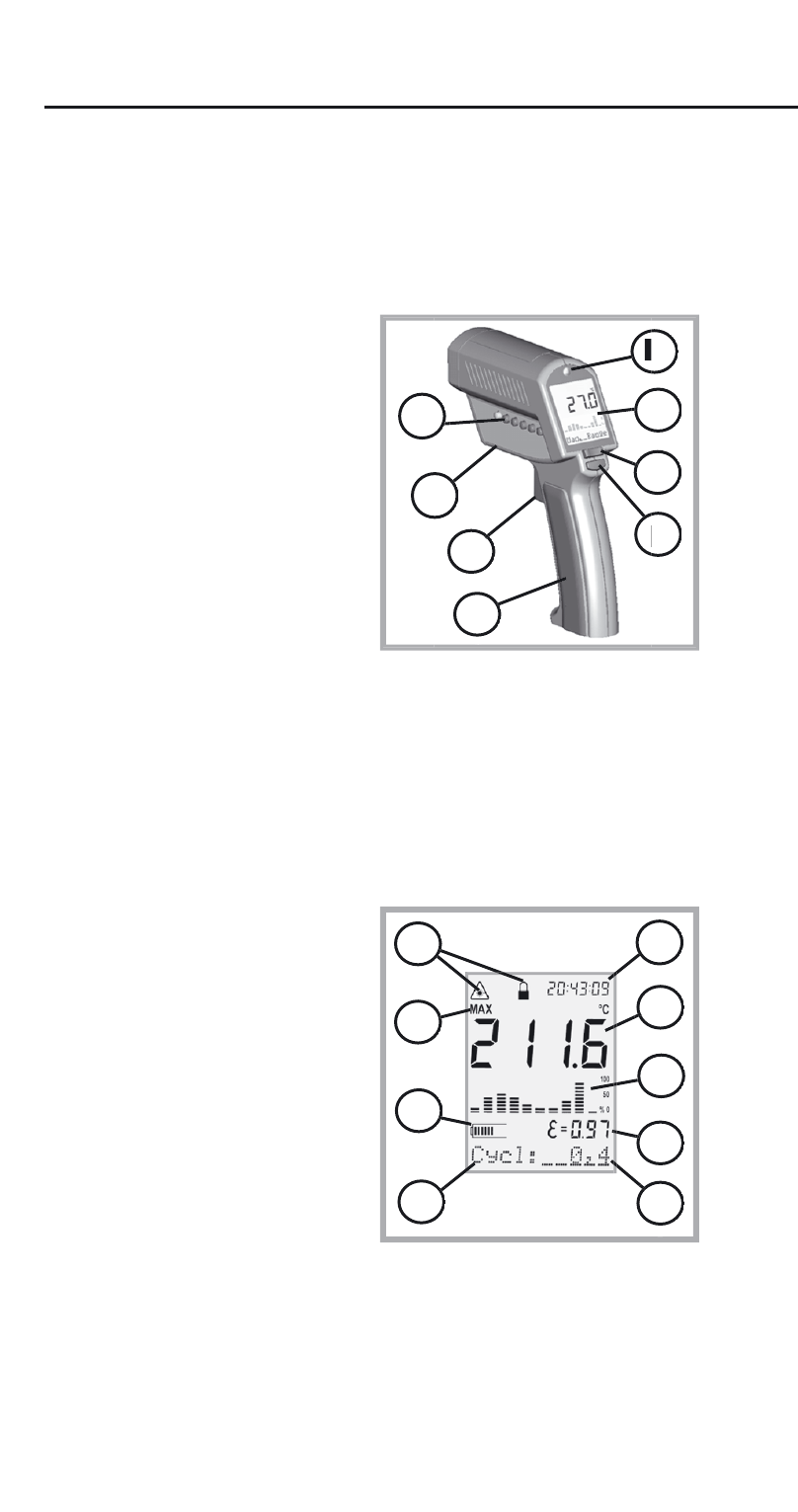

Function keys and display:
(A) Visual and audible
alarm
(B) Display
(C) Up and Down keys
(D) Enter
(E) Handle and battery
compartment
(DIP switches for
adjustments are
inside handle)
(F) Trigger
(G) Tripod mount
(H) 6 main function keys
FUNCTIONS
USER INTERFACE
Displayed functions:
(1) Laser condition /
Lock symbol
(2) Time (or date)
(3) Main temperature
display
(4) Graphic display
(5) Emissivity value
(6) Status bar
(7) Mode indicator
(8) Battery life indicator
(9) MAX, MIN, DIF, AVG
symbols
DISPLAY
A
B
C
D
E
F
G
H
1 2
3
4
5
6 7
8
9
