33

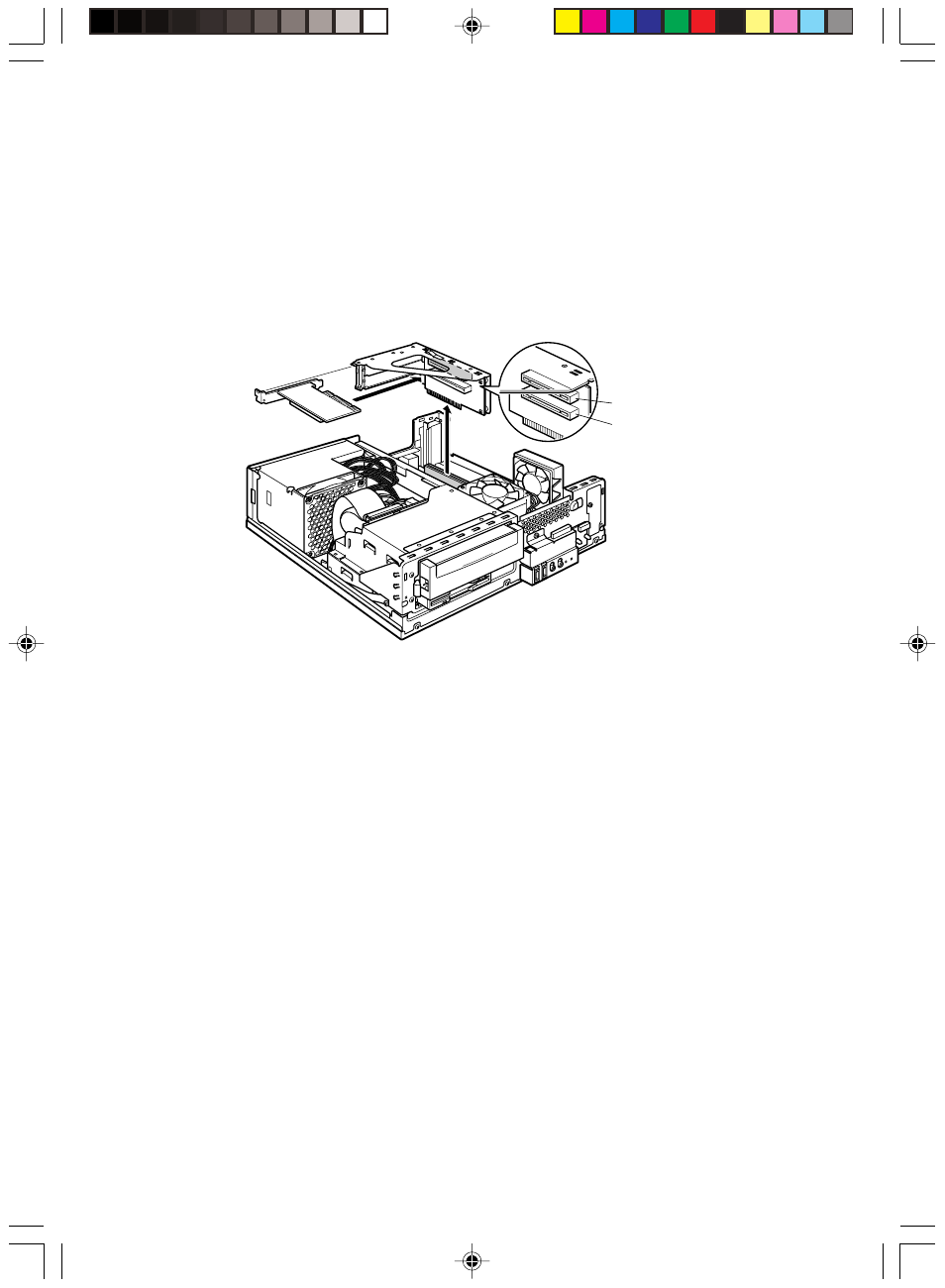

Locations for expansion cards to be installed
To install an expansion card, insert it into the expansion card slot of the main unit of the personal
computer.
1 Slide the lock buttons on the both sides of the main unit of the personal computer to the
front of it and remove the upper cover.
Slide the lock buttons to the main unit of the personal computer to the front side, then raise the
main unit to remove.
Expansion cards to be installed
PCI-standard expansion cards can be installed in this computer.
For IDE-RAID models, the IDE-RAID card is installed in the PCI2 slot.
Up to 176-mm expansion cards (half size) can be installed in PCI1 - 2.
PCI1
PCI2
