25
■ Removing the Main Unit Cover
When connecting peripheral devices, remove the upper cover so that the internal of
the computer is exposed.
How to remove the main unit cover
When the foot is installed, remove the foot from the main unit of the personal computer to place the
computer in the horizontal position before removing the upper cover.

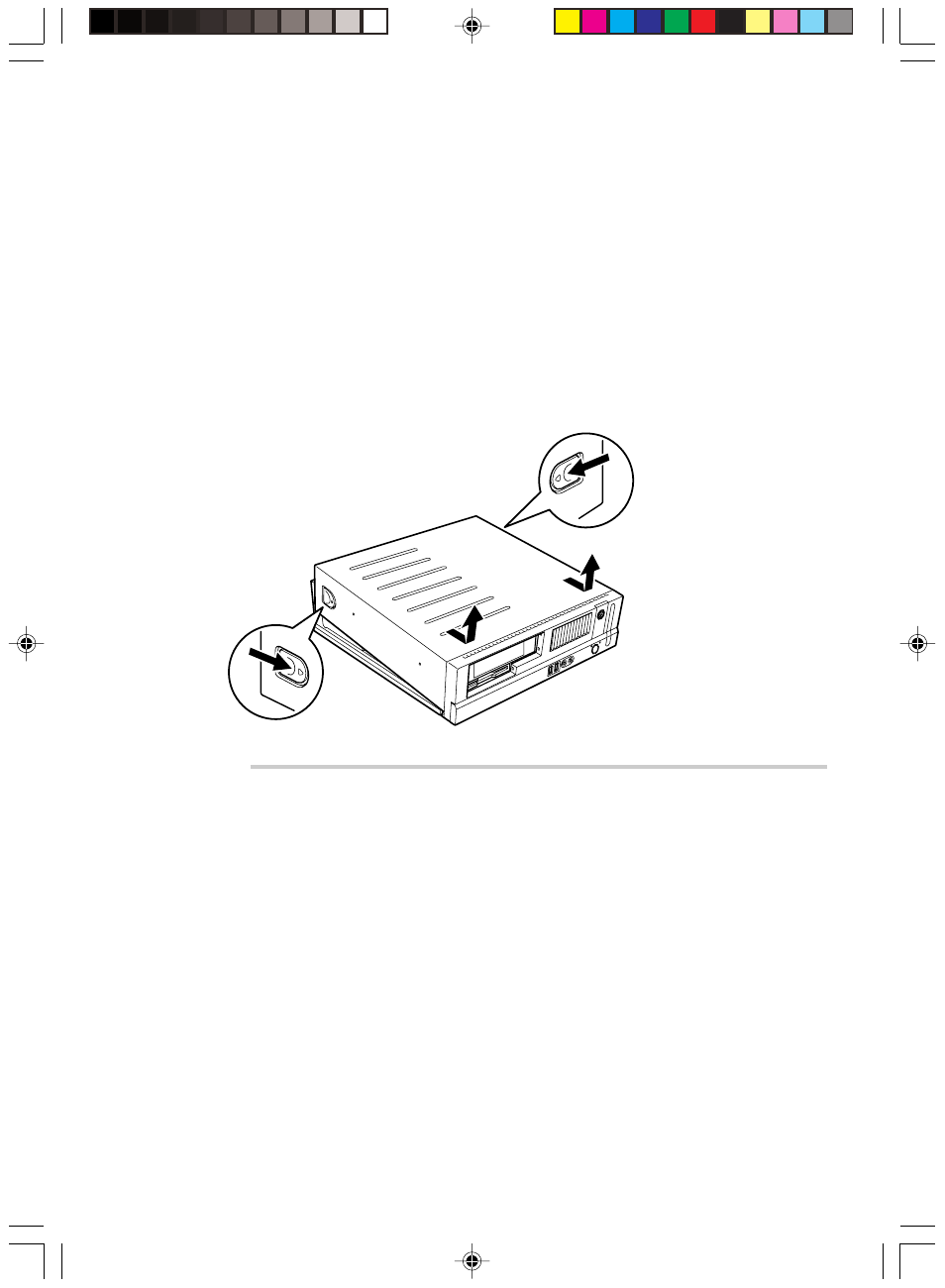

1 Slide the lock buttons on the both sides of the main unit of the personal computer to the
front of it and remove the upper cover.
Slide the lock buttons to the main unit of the personal computer to the front side, then raise the
main unit to remove.
POINT
When installing, refer to removing steps.
