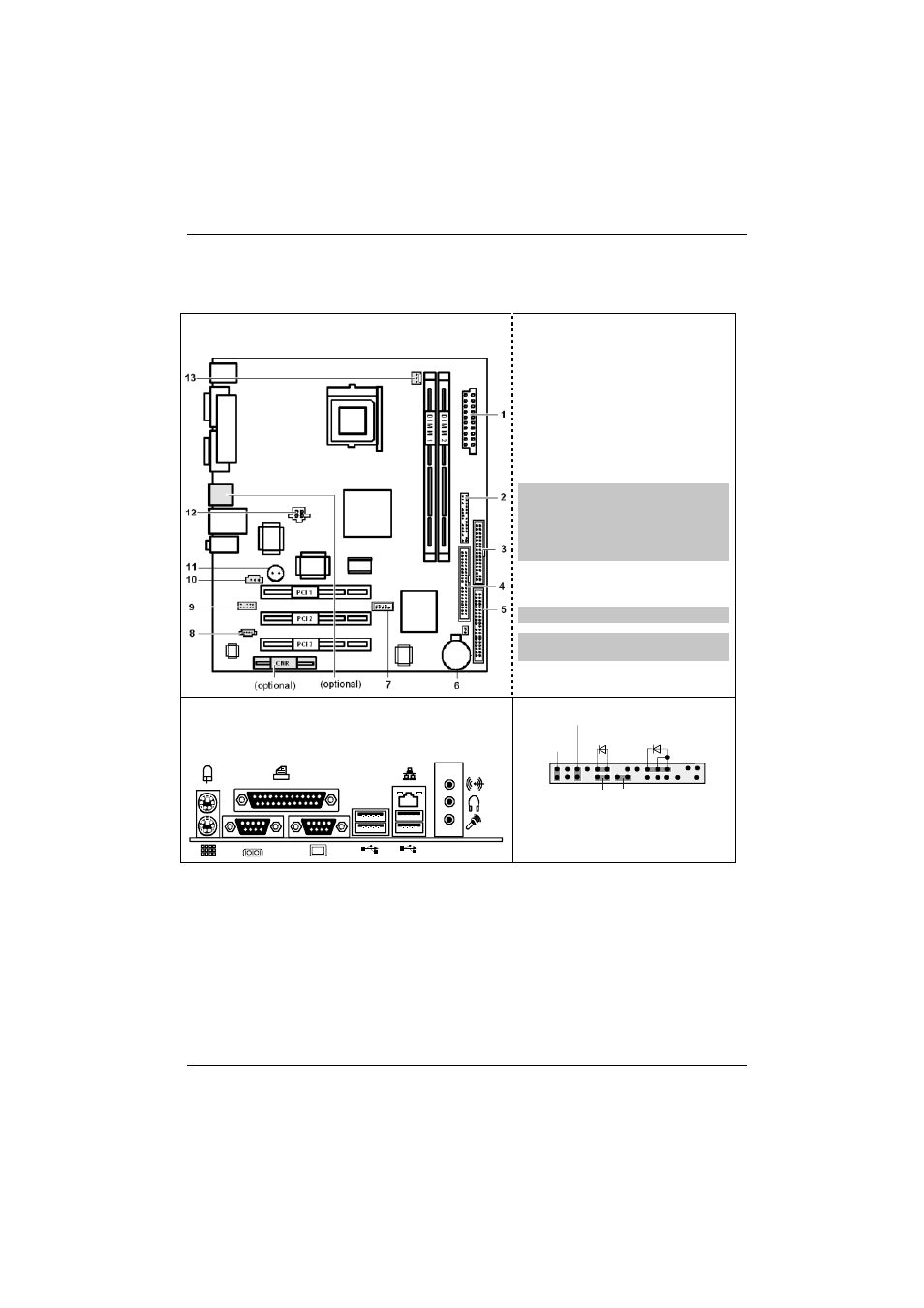

Übersicht/Overview Mainboard D1740
Interne Anschlüsse und Steckplätze /
internal connectors and slots
1 = Stromversorgung /
Power Supply
2 = Bedienfeld / Frontpanel
3 = Diskettenlaufwerk /
Floppy disk drive
4 = IDE-Laufwerke 3/4 /
IDE-drives 3/4
5 = IDE-Laufwerke 1/2 /
IDE-drives 1/2
6 = Batterie / Battery
7 = USB
8 = AUX-Audio-In /
AUX-Audio Input
9 = Audio-Bedienfeld /
Audio Frontpanel
10 = SPDIF-Ausgang / SPDIF Out
11 = Summer / Buzzer
12 = Stromversorgung Prozessor /
Power supply processor
13 = Prozessorlüfter 1 / Fan 1 (CPU)
Optionale Komponenten /
Optional components
Externe Anschlüsse / External connectors
AUDIO
LAN
USB
Port
USB
Port
(optional)
1) Cable is not included in the delivery scope.
2) 2-pin or 3-pin connector possible
1
2
HD-LED
1)
Power On/Off
Recovery
Reset
1)
Power On
LED 1) 2)
Password
A26361-D1740-Z120-1-6319, Ausgabe: 3 Umschlag/Cover
