External ports
Interfaces and connectors
The positions of the interfaces and connectors are shown on page "Cover".
The components and connectors marked are not necessarily present on the mainboard.
External ports

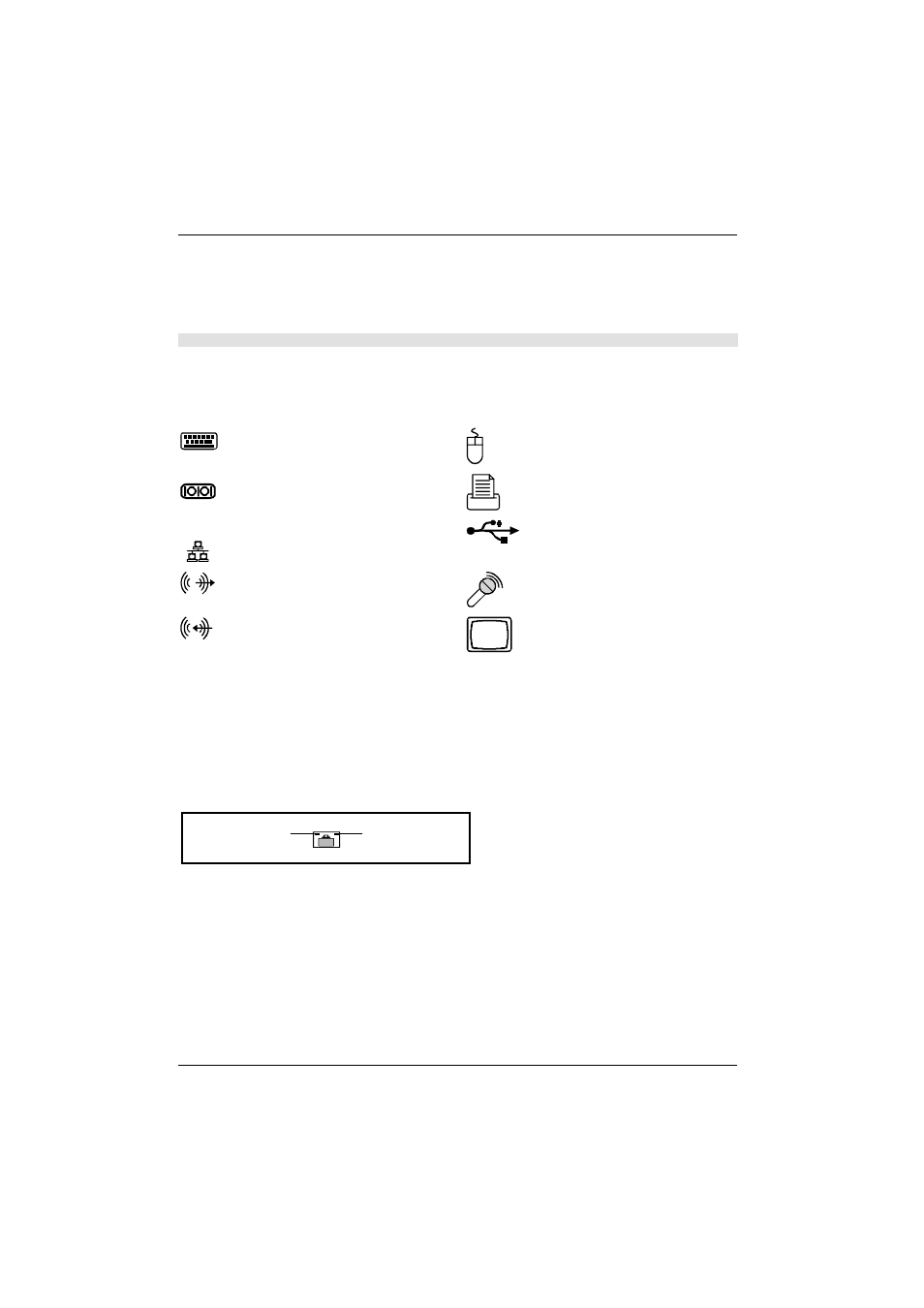

The positions of the external ports are shown on page "Cover".
PS/2 keyboard port, purple PS/2 mouse port, green
Serial interface, turquoise
Parallel port/Printer, burgundy
LAN
LAN connector USB - Universal Serial Bus, black
Audio output (Line out), light green Microphone jack (mono), pink
Audio input (Line in), light blue VGA port, blue (monitor)
LAN connector
This mainboard has an ADMtek AN983B LAN controller. The LAN controller supports transfer
speeds of 10 Mbit/s and 100 Mbit/s. The LAN controller is equipped with a 3 KB transmission and
receiving buffer (FIFO) and supports WOL function through Magic Packet
ä.
It is also possible to boot a device without its own boot hard disk via LAN. Here bootix® LAN BootP
or bootix® PXE are supported.
The LAN RJ45 connector has two LEDs (light emitting diodes).
2 1
1 = lights green:
flashes green: a connection exists (e.g. to a hub).
Activity
2 =
glows yellow:
off: 100 Mbit/s
10 Mbit/s
8 - English A26361-D1740-Z120-1-6319, Edition: 3
