Assembly
Cap
Nut
End of
Steering
Column

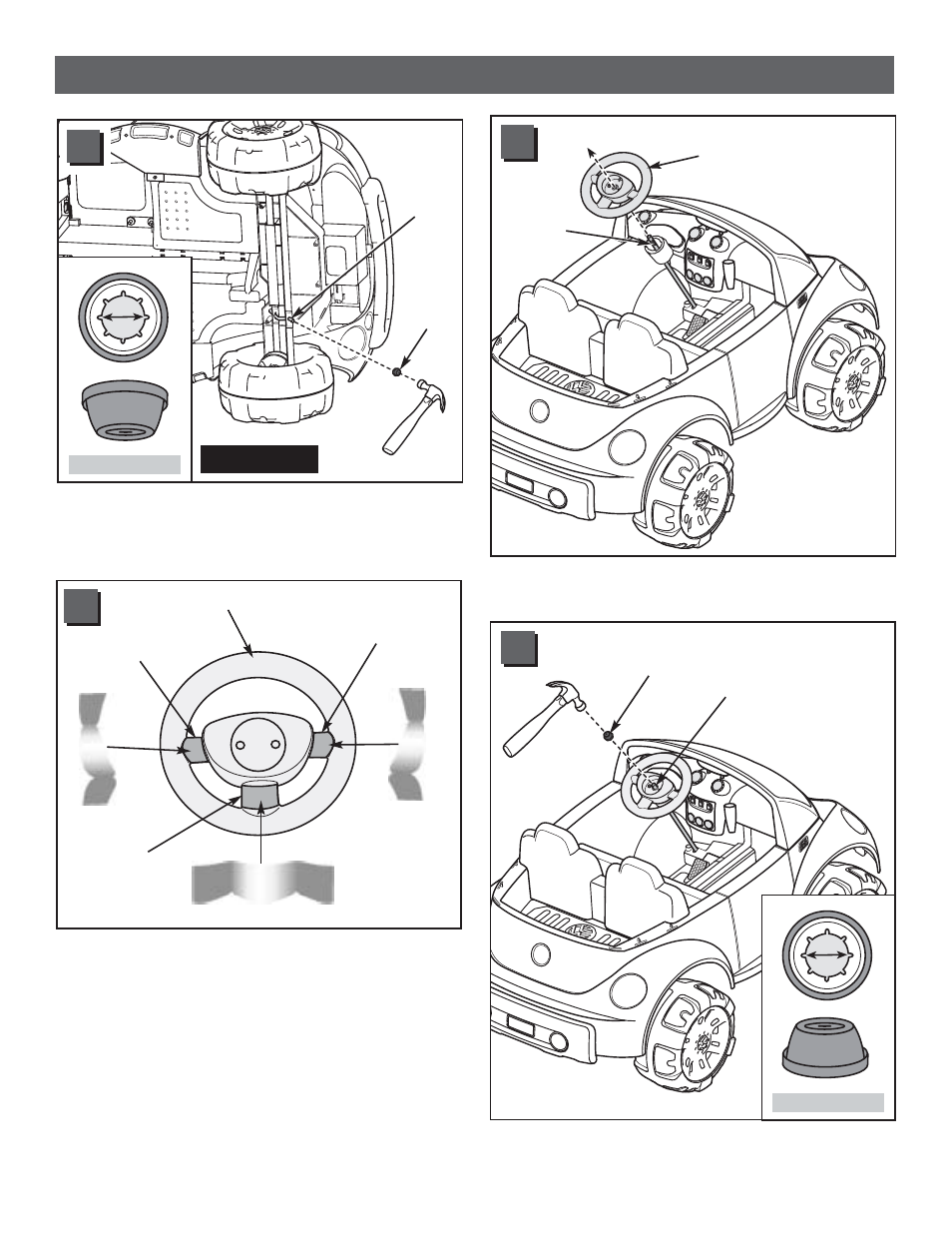

• Fit a cap nut on the end of the steering column.
• Tap the cap nut with a hammer to secure it on the end of
the steering column.
Bottom View
• Turn the vehicle upright.
• Fit the steering wheel onto the end of the steering column.
Steering
Wheel
Steering
Column
22
21
Cap
Nut
Steering Wheel
Left
Spoke
Right
Spoke
Bottom
Spoke
End of
Steering
Column
• Fit a cap nut onto the end of the steering column.
• Tap the cap nut with a hammer to secure it on the end
of the steering column.
23
• Cut the steering wheel labels (#16, #17 and #18)
from the larger label sheet. Now, position the steering
wheel labels, as shown in the illustration, around the
steering wheel.
Hint: These labels will be applied around the spokes on
the steering wheel. Carefully apply the center portion of
each label to the topside of each spoke. Gently smooth
the label around each spoke.
• Remove the backing from label 16 and apply the label to
the bottom spoke. Throw the backing away.
• Remove the backing from label 17 and apply the label to
the right spoke. Throw the backing away.
• Remove the backing from label 18 and apply the label
to the left spoke. Throw the backing away.
.354"
.354 Cap Nut
.354"
.354 Cap Nut
20
18
