Assembly

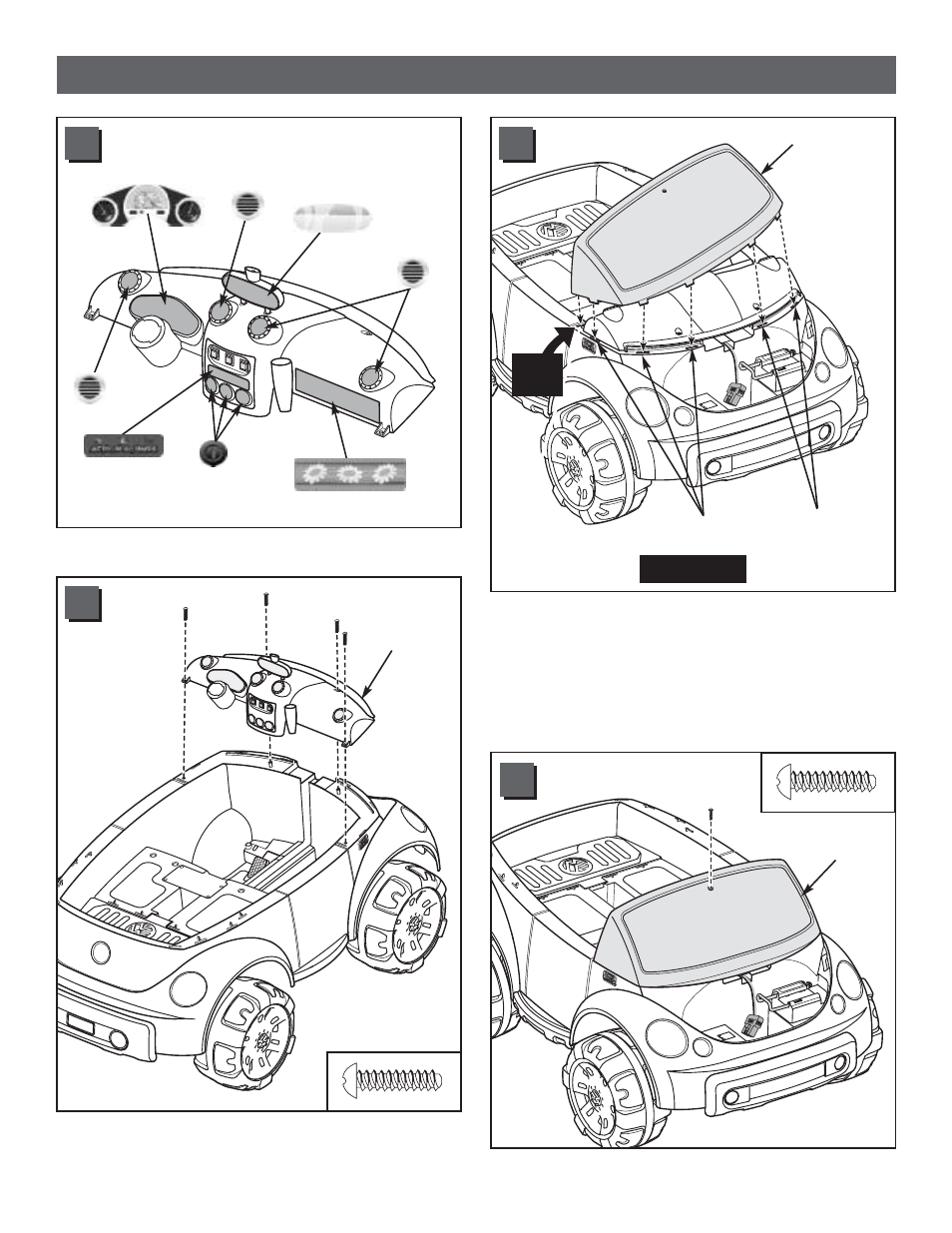

• Apply the labels to dash, as shown.
9
Dash
• Fit the dash onto the top, front end of the vehicle.
• Insert four #8 x 3 /
4
" screws into the dash and tighten.
10
Slots
Slots
Windshield
• Fit the eight tabs on the windshield into the eight slots in
the top, front end of the vehicle.
Hint: Begin by inserting a tab on one end of the
windshield. Now, work your way around, inserting the
remaining seven tabs.
• Push down, above each tab, to “snap” the windshield
into place.
11
15
11
20
20
20
25
9
Windshield
• Insert a #8 x 3 /
4
" screw through the hole in the top of
the windshield. Tighten the screw.
12
Front View
19
Start
Here
