9
ASSEMBLY F
N1476pr-0920

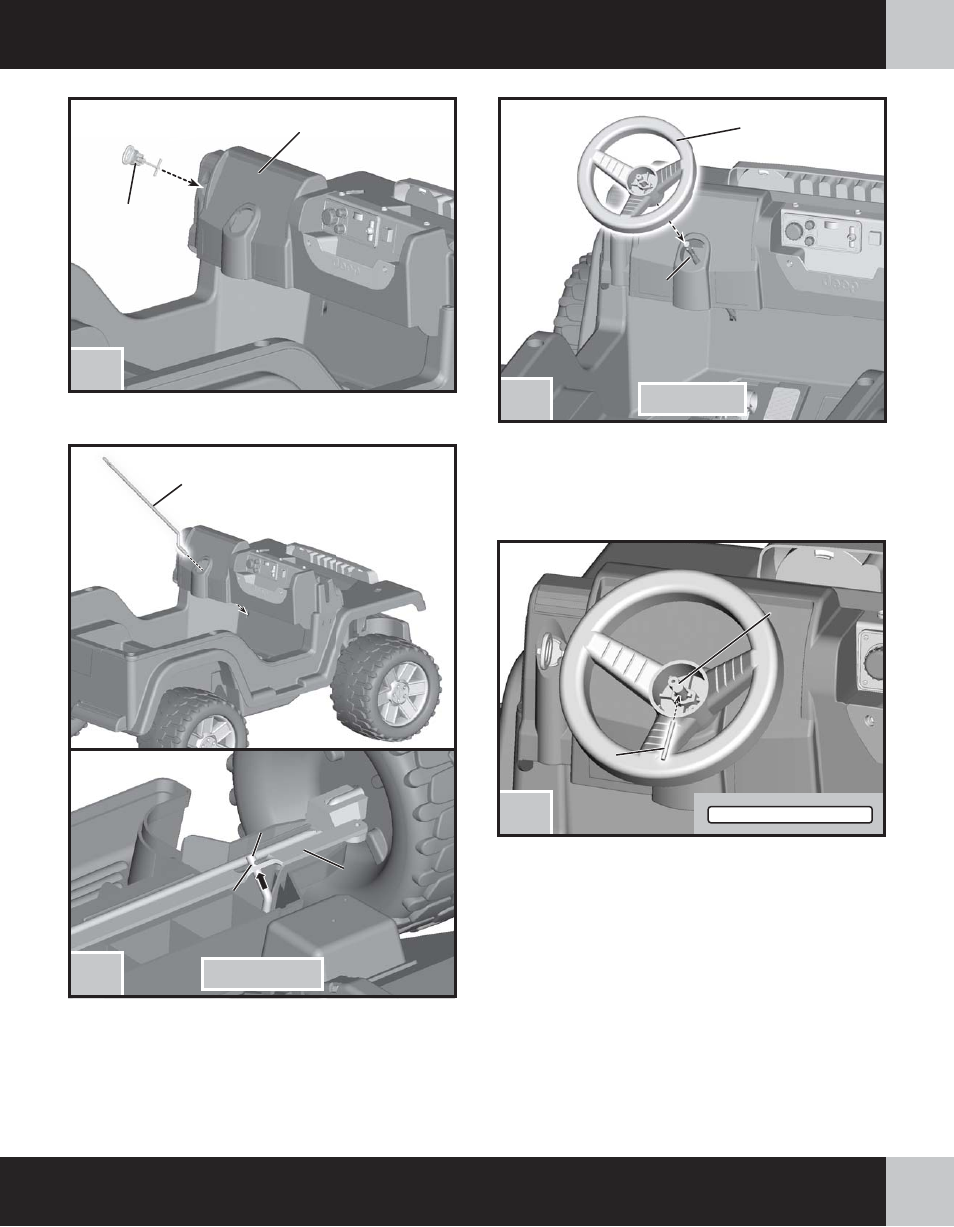

Insert and “snap” the key assembly into the opening in the
dash, as shown. •
Insert the curved end of the steering column down through
the large opening in the dash.
Turn the vehicle on its side.
Insert the end of the steering column through the hole in the
steering linkage. •
•
•
4 BOTTOM VIEW
3
Key
Assembly
Dash
Steering Steering
Linkage Linkage
End of End of
Steering Steering
Column Column
Hole Hole
5
Turn the vehicle upright.
Position the steering wheel so that the large opening and the
tab on the steering wheel stem are both up.
Fit the steering wheel onto the steering column. •
•
•
INSIDE VIEW
Steering
Wheel
Steering Steering
Column Column
Steering Steering
Column Column
Insert the 5 /
32
" x 1 ½" pin through the hole in the side of the
steering column.
Lower the steering column so the pin fits inside the center of
the steering wheel.
•
•
Steering Steering
Column Column
6
Pin Pin
