Charger
Connector
Children can be harmed by small parts,
sharp edges and sharp points in the
vehicle's unassembled state, or by electrical
items. Care should be taken in unpacking
and assembly of the vehicle. Children should
not handle parts, including the battery, or
help in assembly of the vehicle.
WARNING

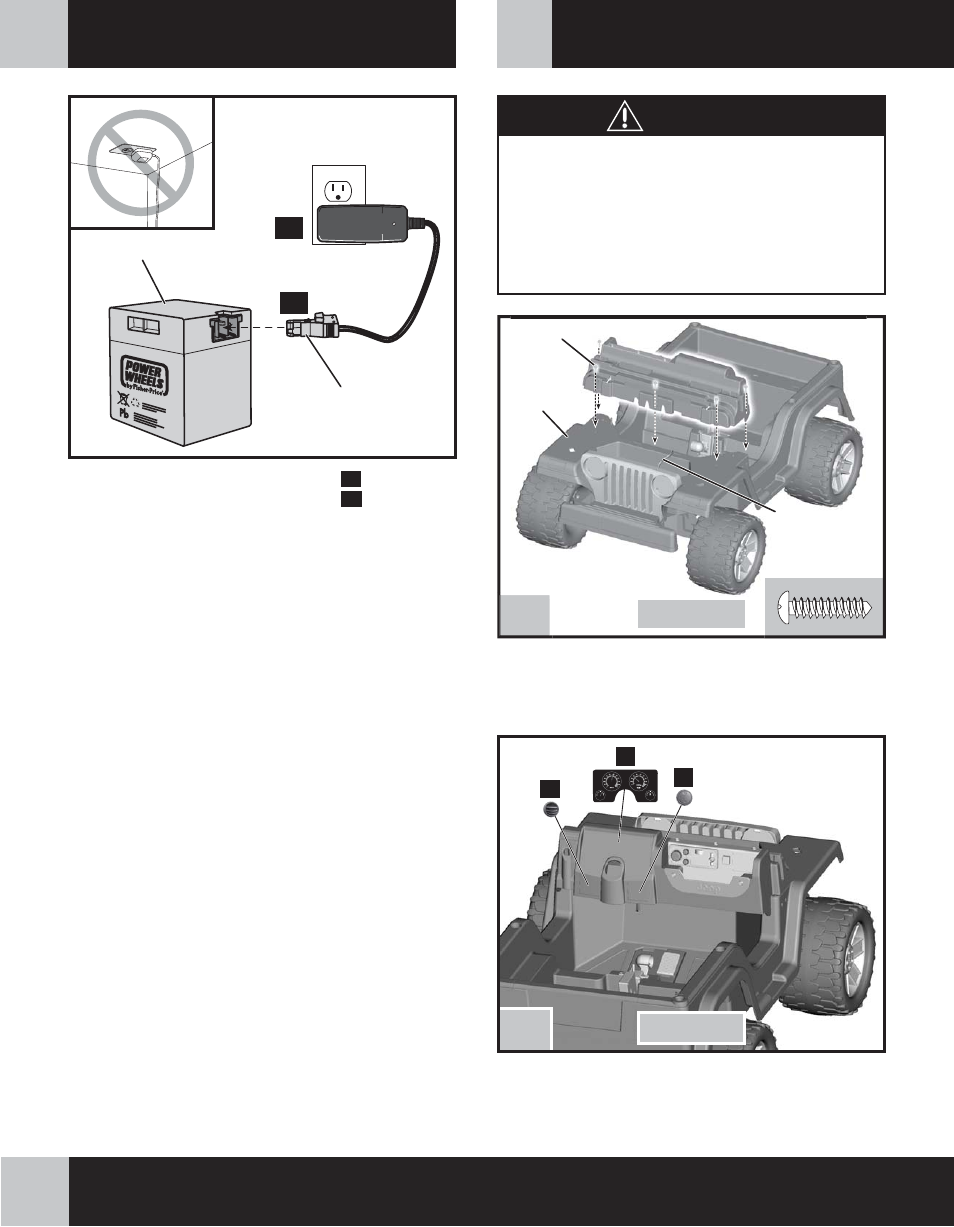

ASSEMBLY BATTERY CHARGING E
A
B
Position the dash on the vehicle.
Make sure the motor harness connector wire is through the
groove in the dash.
Insert five #10 x ¾" screws and tighten. •
•
•
N1476pr-0920
F
12V Battery
• Plug the charger connector into the battery A
.
• Plug the charger into a standard wall outlet B .
Notes:
- If power flow to the wall outlet is controlled by a switch, make
sure the switch is “ON”.
- Use the charger only in a wall outlet. Do not plug the charger
into a ceiling outlet.
- The power indicator on the charger does not indicate the
charge status of your battery. The power indicator allows you
to see that there is power from the wall outlet to the charger.
• Before first-time use, charge the battery for at least 18 hours.
Never charge the battery longer than 30 hours.
• Recharge the battery for at least 14 hours after each use of
your vehicle. Do not charge the battery longer than 30 hours.
• Once the battery is charged, disconnect the battery connector
from the charger connector. Unplug the charger from the wall
outlet. The battery is now ready to be installed in your vehicle.
Please see the Battery Installation section on page 15 for
detailed instructions on installing your battery. If your battery
is already installed in your vehicle, simply re-connect the motor
harness connector to the battery.
Before applying the labels, wipe the surface of the vehicle with
a clean, dry cloth to remove any dust or oils.
Place the labels exactly as shown in the illustration.
For best results, avoid repositioning a label once it has been
applied to the vehicle. •
•
•
7
8
11
2 INSIDE VIEW
FRONT VIEW
Vehicle
Dash
Motor Harness
Connector Wire
