External E/S interface installation kit
t r a P y t ' Q , e p y T . o N e d o C y t ' Q
. y s s A e c a f r e t n I S / E l a n r e t x E - - 1
. y s s A r o t c e n n o C H X ) P 6 - 6 ( 2 1 3 - 6 0 0 3 8 - 0 5 5 - 6 0 0 1
w e r c S 6 x 3 M 3 0 1 - 1 8 8 - 0 0 0 4
w e r c S 8 x 3 M 4 0 4 - 1 8 8 - 0 0 0 1
s e i T e l b a C 9 4 2 . o N 1 7 8 - 5 1 5 - 0 0 0 1
1. Remove the display unit cover.
2. Remove the dummy plate at the rear of the display unit.

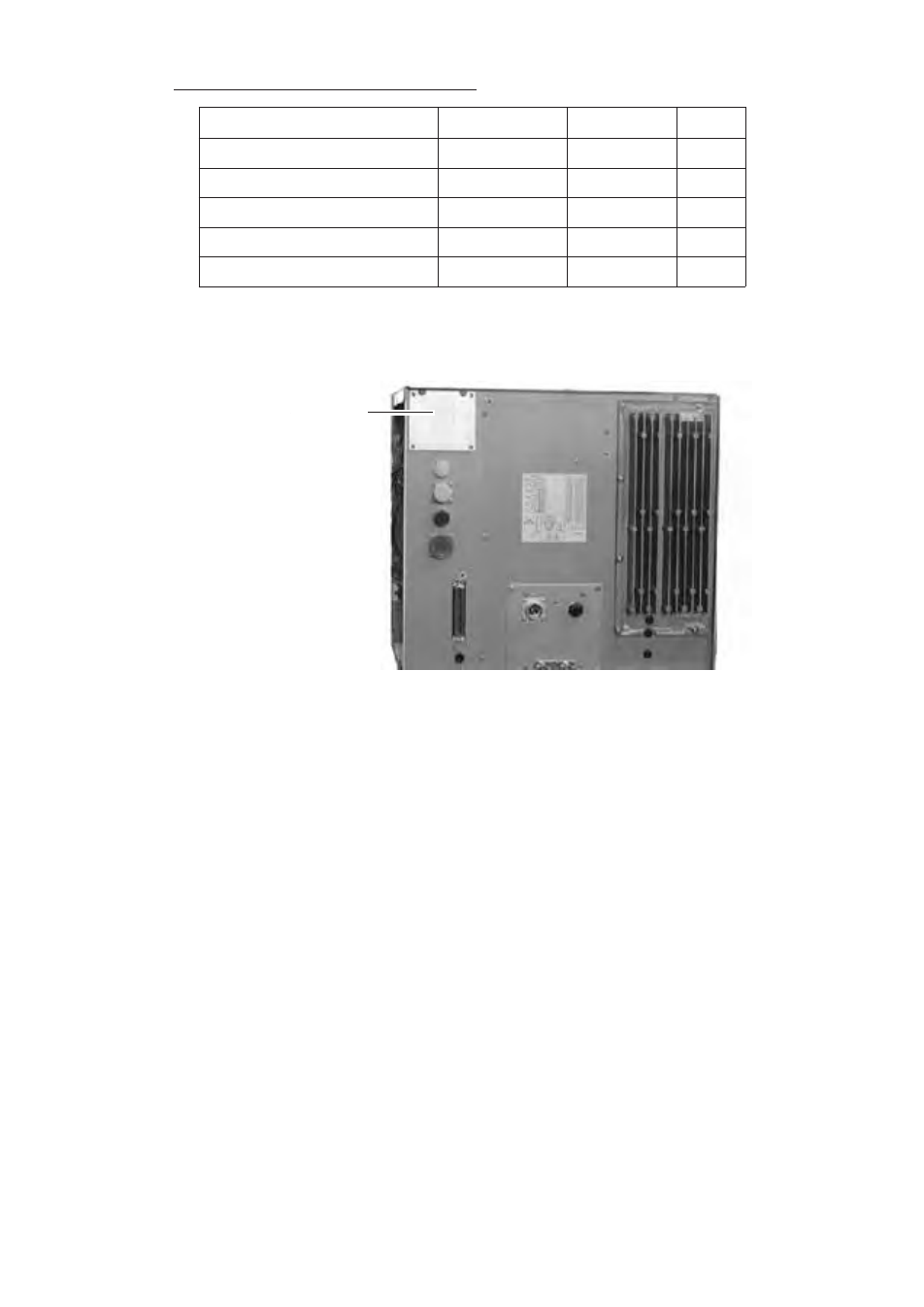

Remove this dummy plate
and fasten External Inter-
face module here.
Figure 1-19 Display unit, rear view
3. Connect XH connector assy. to the Interface Module.
4. Fasten the Interface Module to the display unit with M3 x 6 screws and one
M3 x 8 screw.
For connecting External Monitor Interface (OP06-14) and External E/S inter-
face (OP06-13), remove ESIF Board from OP06-13, and fix ESIF Board on
OP06-14.
For connecting logarithm amplifier video sounder, refer to next page.
5. Connect between J2 on the ESIF Board (06P0237) and J3 on the MAIN Board;
connect between J1 on the RGB-BUFF Board (03P9229) and J4 on the MAIN
Board.
