Furuno CH-37 User Manual
Page 15

1-5
4. Fasten the main shaft to the soundome assembly as follows:
a) Attach screw lock nut to main shaft.
b) Fully screw main shaft into the soundome neck, and then unscrew by four
turns. Coat threads with adhesive (HIGH SUPER).
c) Screw in main shaft completely and tighten the lock nut with spanner.
d) Tighten socket-set screw on lock nut.
e) Fasten two reinforce metal fittings to connect the main shaft and the
soundome assembly securely (Not using the stopper washer).
While holding soundome neck with pipe
wrench, tighten lock nut with wrench.
Lock nut
Apply adhesive
(HIGH SUPER).
Set screw
Reinforcement
metal fittings
M10
×
100
SW, PW,
Nut
Reinforcement
metal fittings

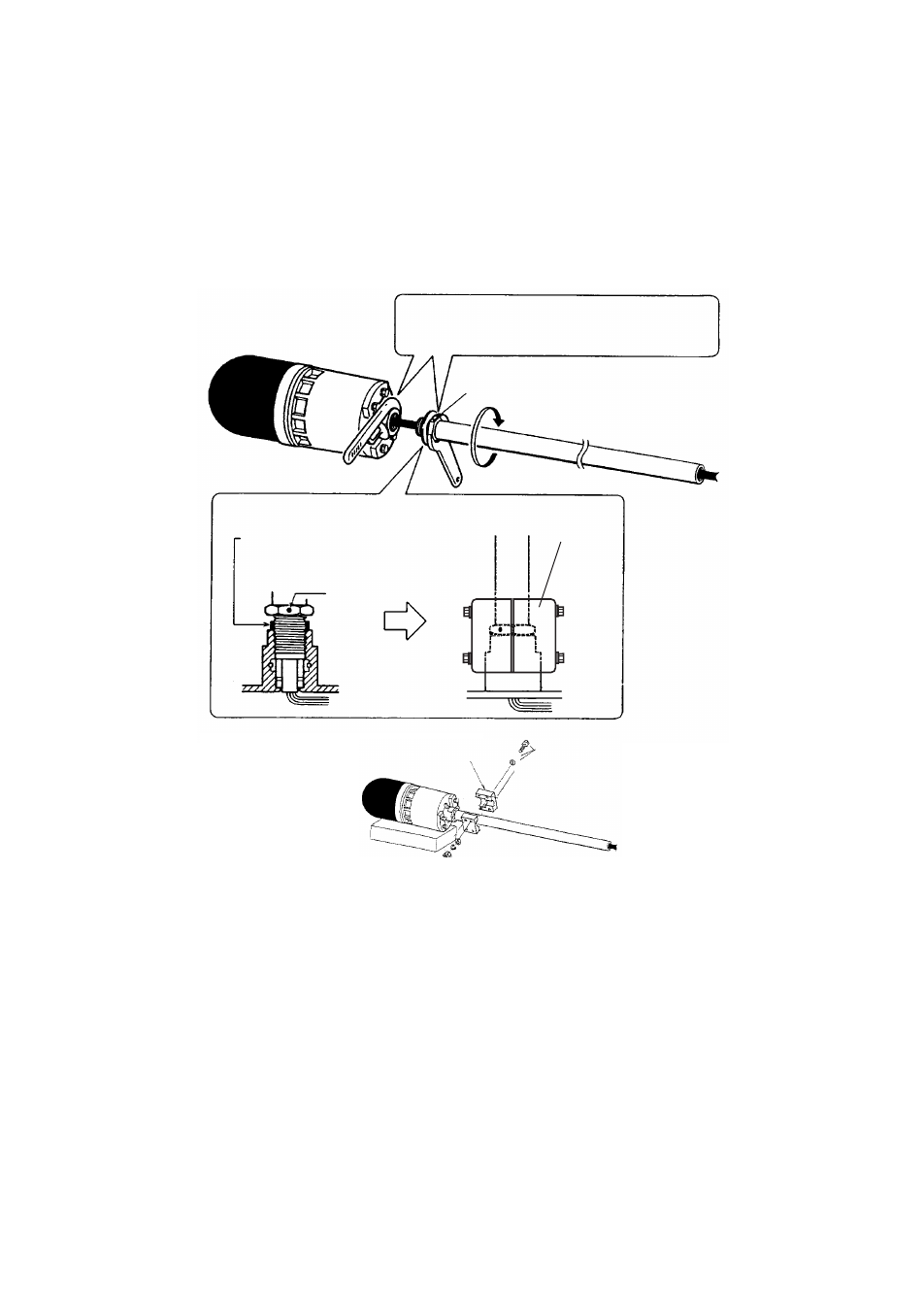

Figure 1-6 How to fasten main shaft to soundome assembly
