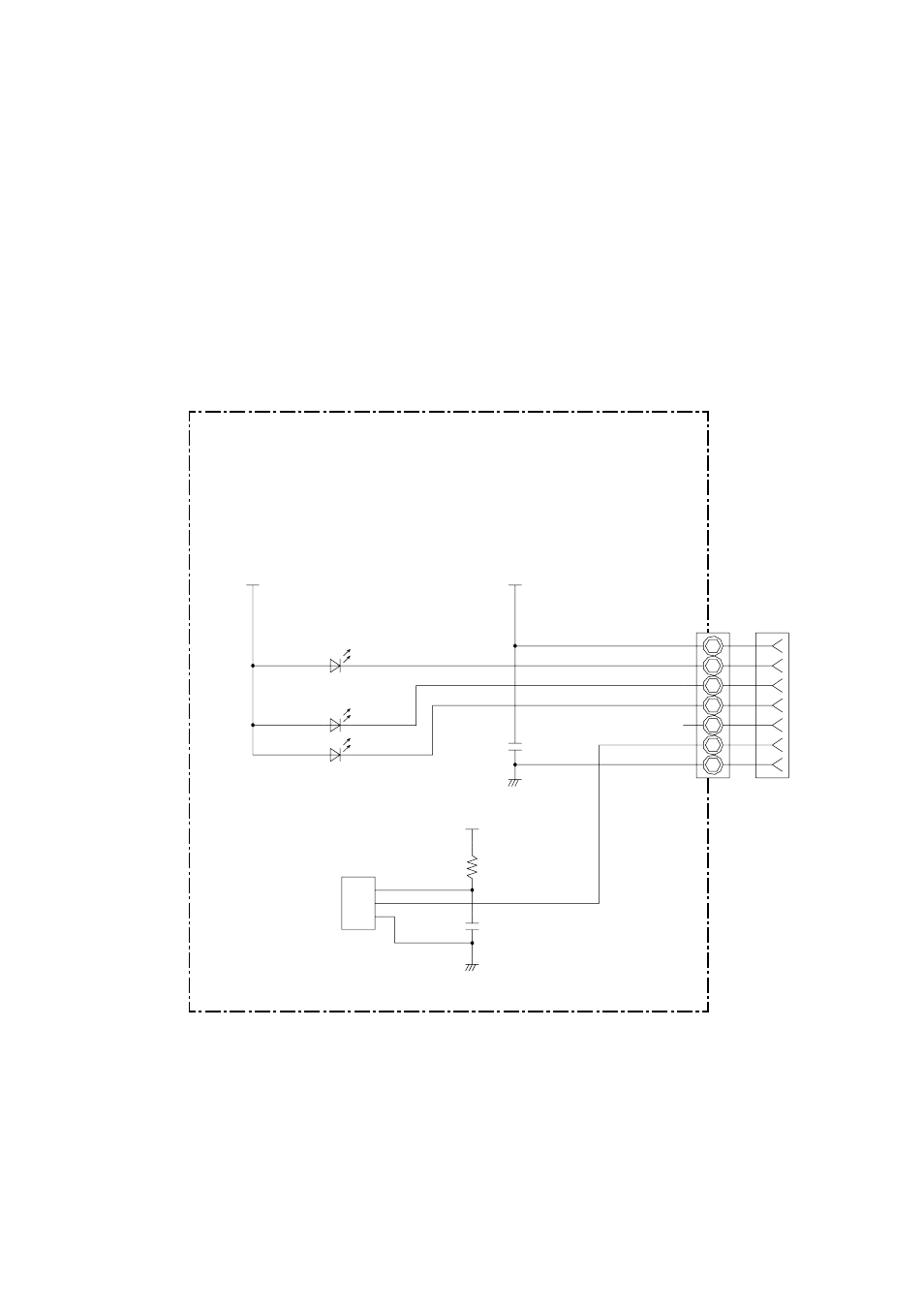

CN201

5V

C201

0.1

5V

+ C202

47/

10V

R201

47

<1/4W>

I C201

GP1UM261R

5V

D201

SLR-325

D203

SLR-325

D202

SLR-325

5

4

6

1

2

3

7

2

1

3

VCC

OUT

GND

INDICATOR PCB ASSY

K05CY-0500HSE-D0

Model : ASYA24LCC

7

2006.02.28
