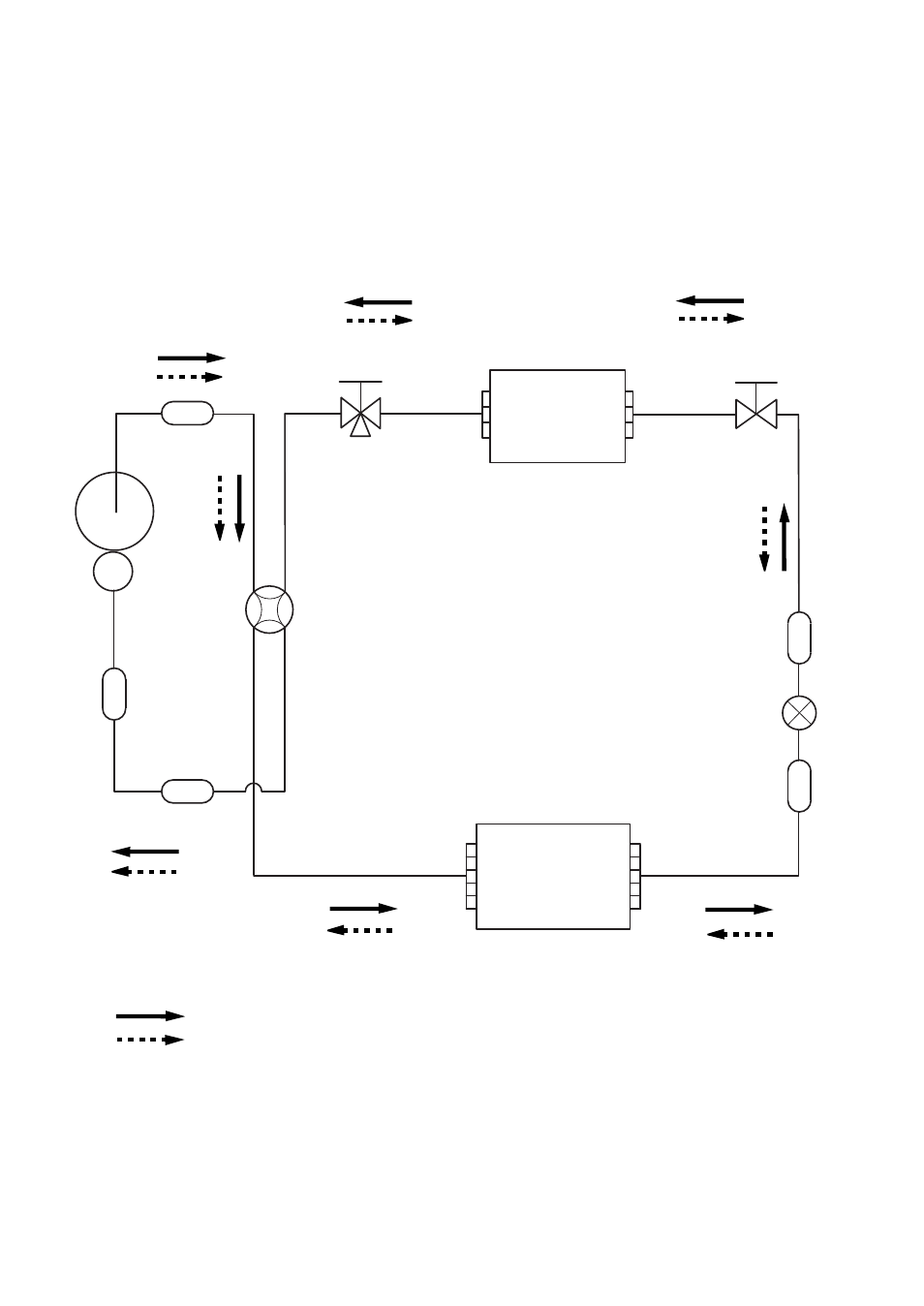

REFRIGERANT SYSTEM DIAGRAM
2-Way valve
Strainer
Strainer
Strainer
3-Way valve
Muffler
4-Way valve
Expansion valve
Heat exchanger
( INDOOR )
Heat exchanger
( OUTDOOR )
S
ub
-a
cc
um
ul
at
or
C
om
pr
es
so
r
Cooling
Heating
Models : ASYA24LCC / AOYR24LCC
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 5/8" (15.88 mm)
