Foundry AR-Series Rack-Mounted Router Quick Installation Guide
2 - 4 © 2004 Foundry Networks, Inc. June 2004

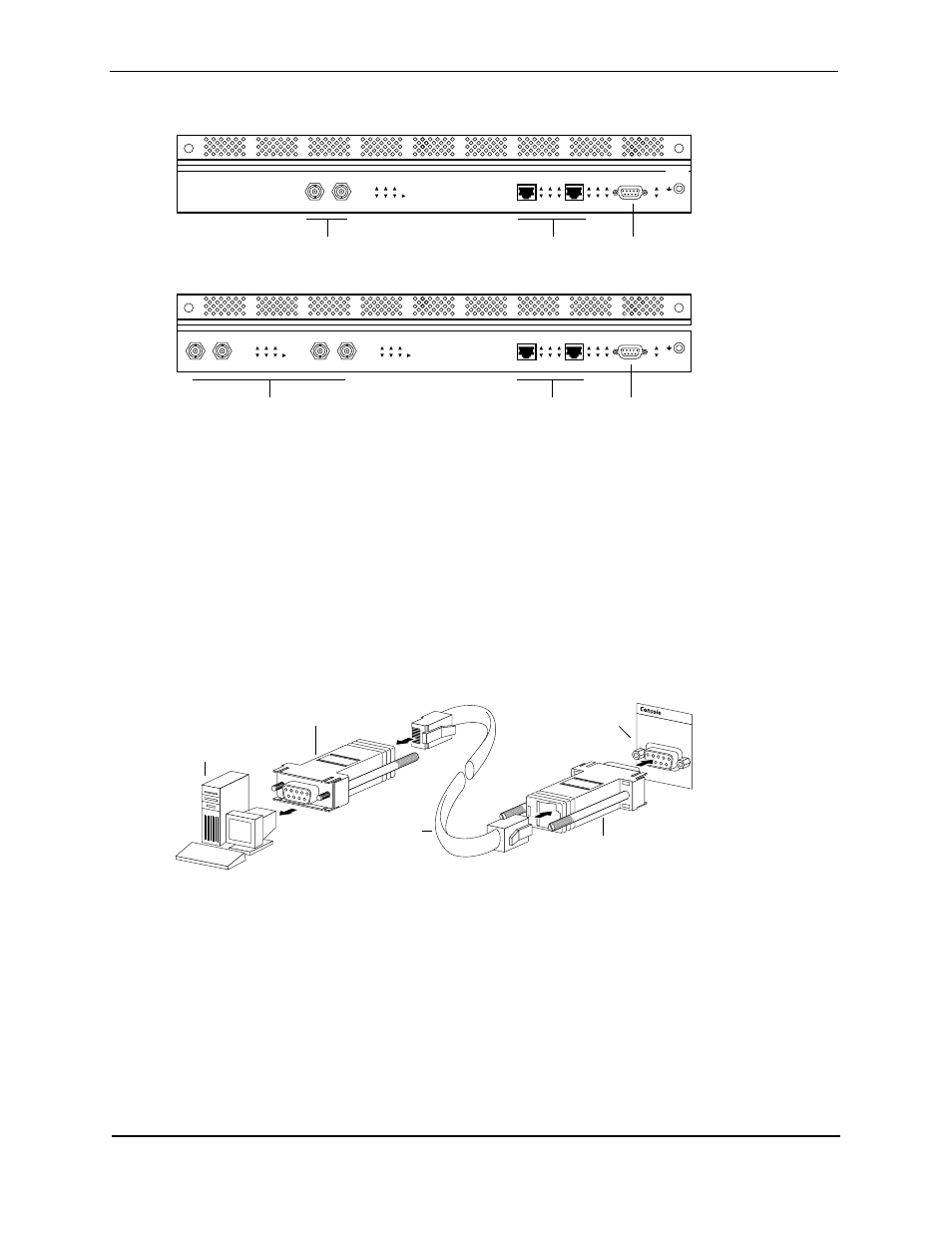

AR3201-T-CL
AR3202-T-CL
Dial-Out Ports
The AR3202-T-CL, and AR3202-T-CH have a dial-out port on the back panel that is used to notify the network
administrator or other designated person about captured system traps. Notification procedures can be set up to
meet the needs of the customer via pager or phone message.
Console Cable
Connect the:
• DB-9 modular adapters to the supplied RJ-45 cable
• Male DB-9 modular adapter to the console port
• Female DB-9 modular adapter to a terminal or PC
Ethernet, E1, T1, CT3, Clear Channel DS3, and USSI
Connect the:
• RJ-45 connector of an Ethernet cable to the Ethernet 0 or 1 port
• RJ-48C connectors of the T1 cables to the T1/E1 ports (AR1208)
4100 Ethernet 0 Ethernet 1 Console Unit
ESD Gnd
Dup
HS
Link
Col
RX
TX
Power
Summary
Dup
HS
Link
Col
RX
TX
Clear Channel T3 WAN DS3
Frame
Yellow
Signal
AIS
Error
Test TX RX
Status
Ethernet Ports Console Port Clear Channel DS3 Ports
4102 Ethernet 0 Ethernet 1 Console Unit
ESD Gnd
Dup
HS
Link
Col
RX
TX
Power
Summary
Dup
HS
Link
Col
RX
TX
Clear Channel T3-2 WAN DS3
Frame
Yellow
Signal
AIS
Error
Test
TX RX
Status
Clear Channel T3-1 WAN DS3
Frame
Yellow
Signal
AIS
Error
Test
TX RX
Status
Ethernet Ports Console Port Clear Channel DS3 Ports
Terminal or
Workstation
Female Adapter
Console Cable
Foundry System Port
Male Adapter
