16
Model VM08 Owner’s Manual
Lit
EQ
[00] ~ [99] will be displayed.
Bar graph extends in step by blinking.
Lit
EQ
EQ
EQ
[00] ~ [99] will be displayed.
Bar graph extended in step with blinking.

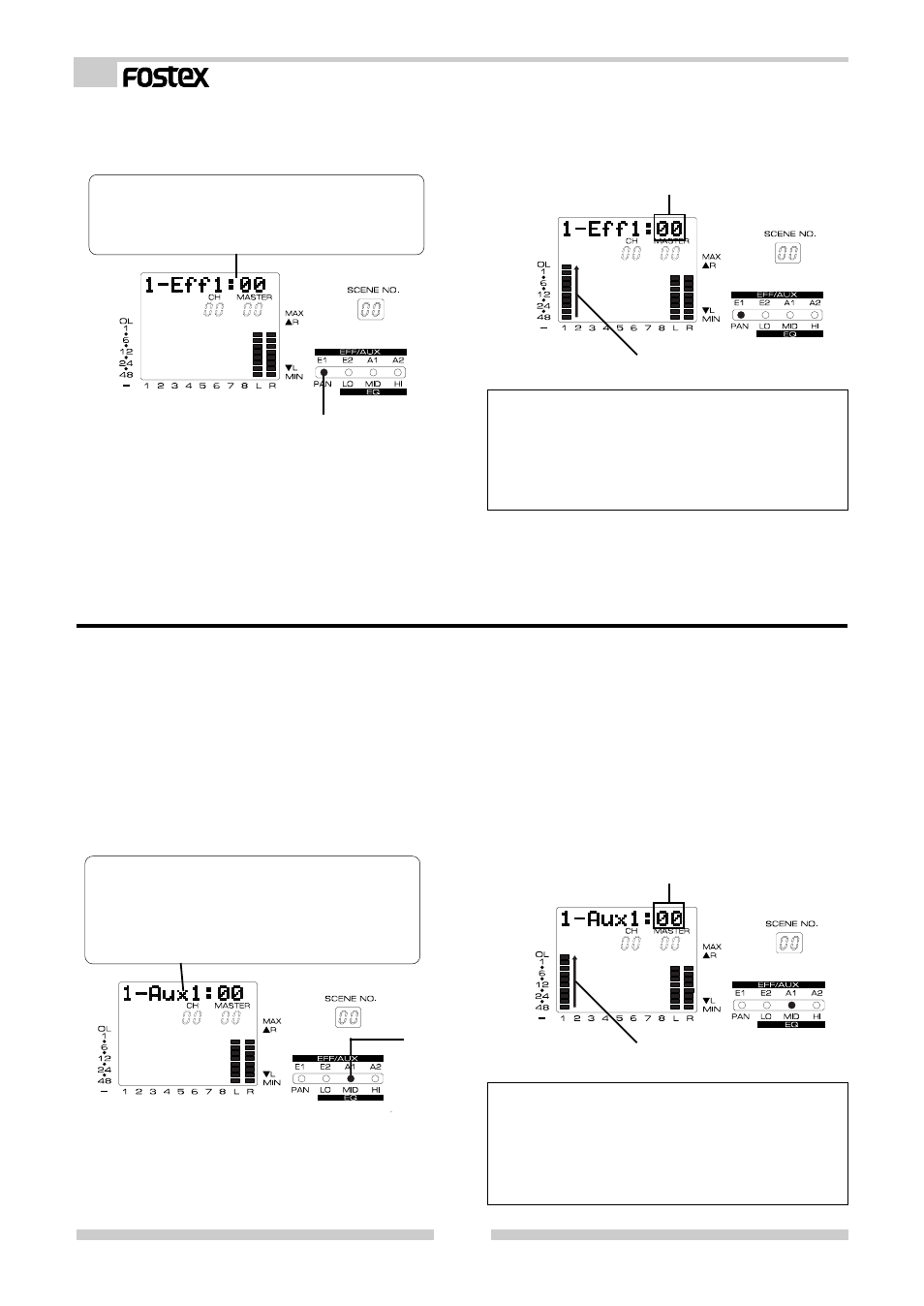

1. Status display section [E1] or [E2] dots are lit
by pressing the EFF/AUX key.
The LCD will display the following:
Example: Character section when [E1] is lit.
[1-Eff1:00] is displayed. Channel 1 EFFECT SEND
1 level can now be adjusted. The present EFFECT
SEND 1 level setting is "dry" (0).
2. Select the channel to be adjusted by pressing
the desired CH ON/CH SEL key.
3. Adjust the number with the DATA encoder.
The number will change in a [0] ~ [99] range
and the depth of effects will also change. The
graphic display will change at the same time.
If channels 5/6 or 7/8 are selected, the two
channels will be set at the same time. If MAS-
TER is selected, the effect send level master can
be adjusted and the L, R meter used to indicate
the level.
Setup method of the AUX SEND level
Adjusting the signal level output from the VM08 rear panel AUX SEND jack (1/2).
The adjusted signal is sent to external equipment (external effects and monitor amplifier) from
the AUX SEND jack. The same as with the EFFECT SEND signal, either POST or PRE can be
selected for the AUX SEND signal. The VM08 is set to POST in the initial state. To change the
setting, please see below [Setup of PRE/POST].
1. Light up the [A1] or [A2] dots in the status
display section but pressing the EFF/AUX key.
The LCD will display the following:
Example: The character display section with light
up [A1].
[1-Aux1:00] is displayed. Now, channel 1 AUX
SEND 1 level can be adjusted. This also indicates
that the present AUX SEND 1 level setting is MIN
(00).
2. Press the desired CH ON/CH SEL key and
select the channel you wish to adjust.
3. Adjust the number with the DATA encoder.
The number will change in the [0] ~ [99] range
and depth of effects will also change. The graph-
ics display will change at the same time.
When channels 5/6 or 7/8 are selected, the two
channels will be set at the same time. If MAS-
TER is selected, the effect send level master can
be adjusted and the L, R meter used to display
the level.
