Assembly
4

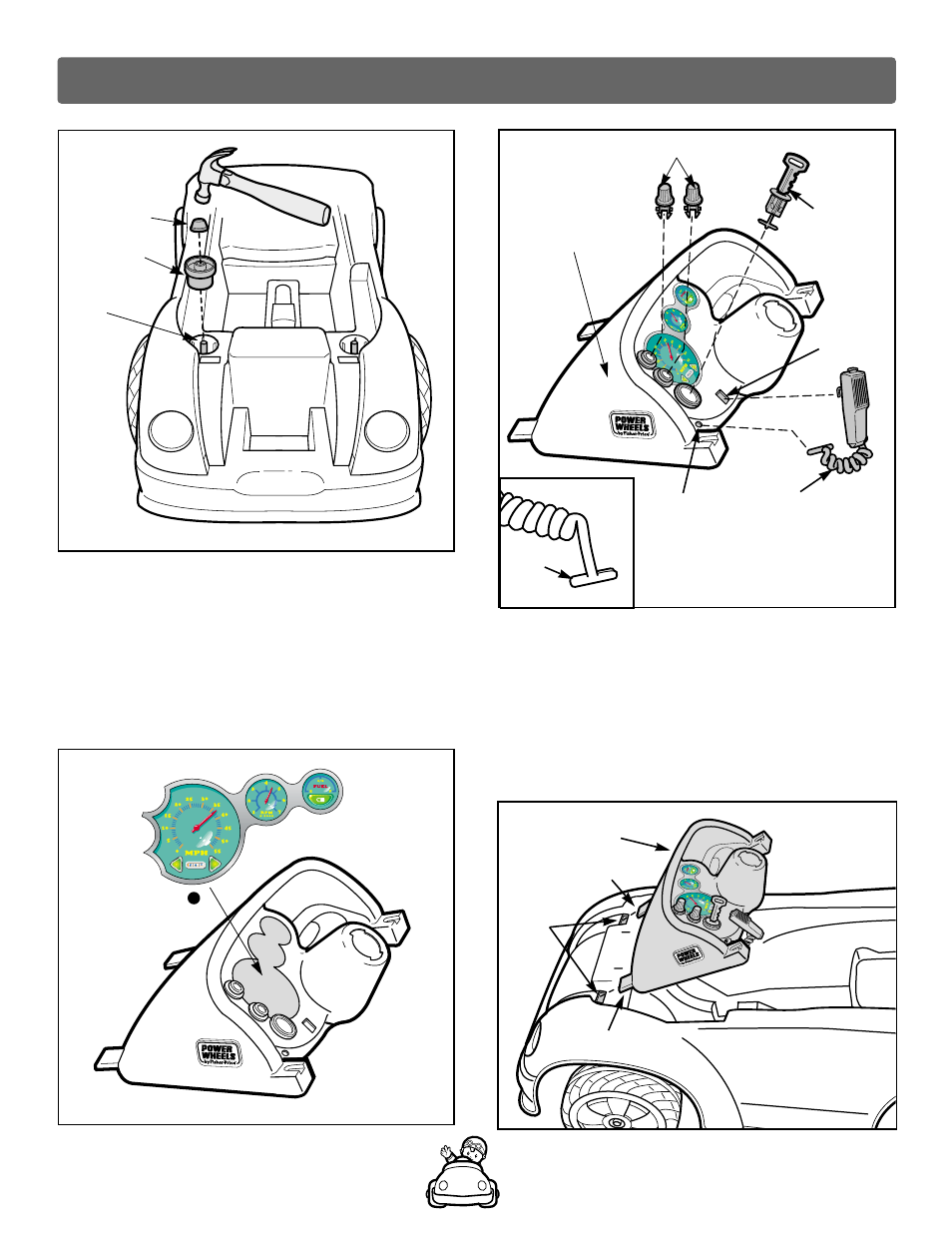

• While holding the steering linkage assembly in place,
carefully turn the vehicle body upright.
• Fit a spacer, ring side up, onto the end of one front axle
leg.
• Fit a cap nut onto the end of the same front axle leg.
• Tap the cap nut with a hammer to secure it on the end
of the front axle leg.
• Repeat this procedure to assemble a spacer and cap
nut on the other front axle leg.
Spacer
Cap Nut
Front Axle
Leg
5
6
7
• Snap the knobs and key assembly into the dash.
• Insert the end of the microphone cord through the small
hole in the dash.
• Bend the plastic tip at the end of the microphone cord
to form a “T” behind the dash.
• Pull gently on the microphone cord to make sure it is
secure in the dash.
• Fit the tab on the back of the microphone into the slot in
the dash.
• Apply label #5 to the dash as ahown. Make sure the
area where the label will be applied is clean and dry.
• With the dash angled as shown, insert the tabs at the
front of the dash into the slots in the vehicle body.
Knobs
Key
Assembly
Microphone
Cord
Dash
Small
Hole
Slot
Tab
Slots
Tab
Dash
