27

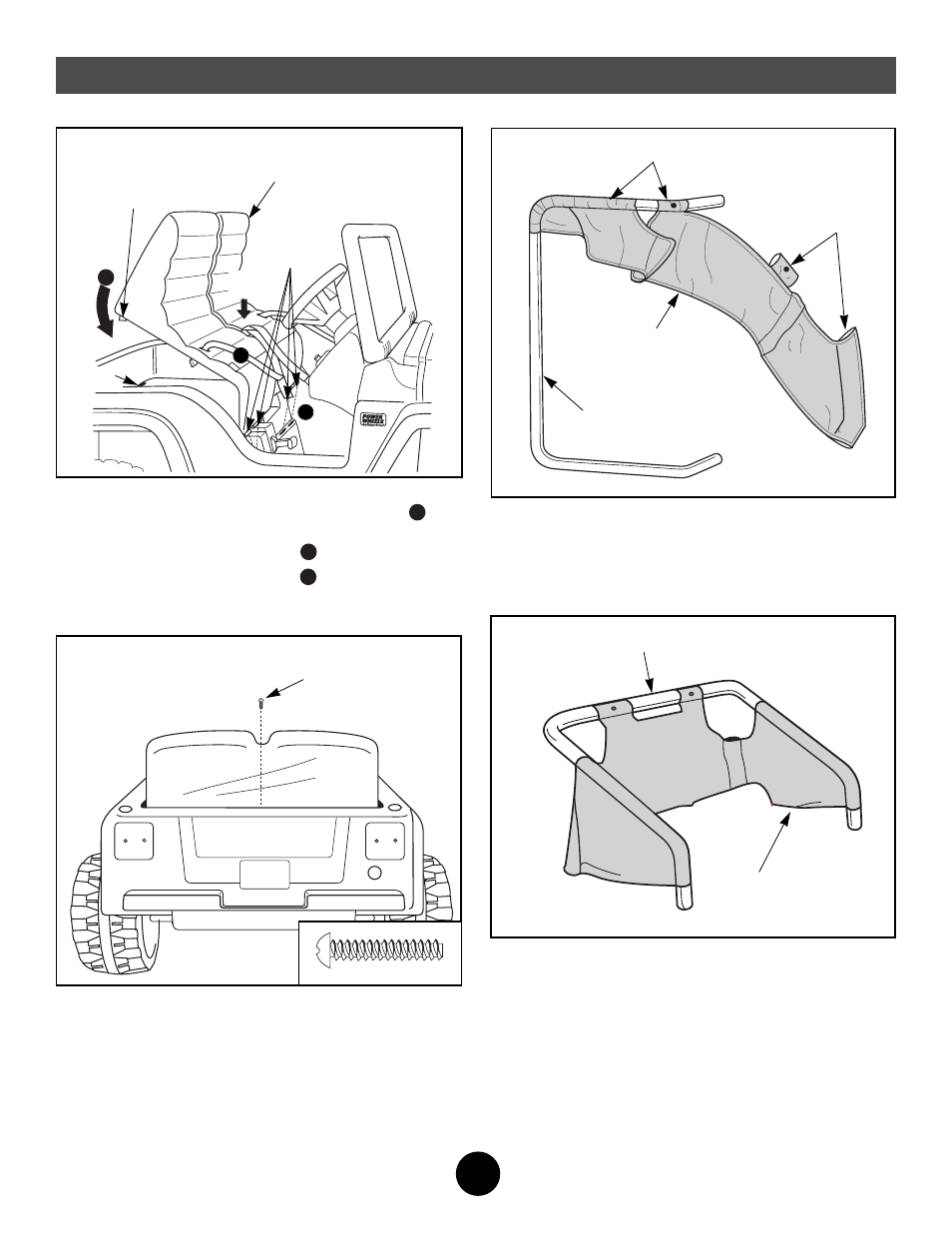

• Extend the canopy completely around the sport bar.
Sport Bar
Canopy
Assembly
18
26
Sport Bar
Canopy
Canopy Sleeves
Canopy
Sleeves
• Position the sport bar on its side so that the sport bar
ends curve away from you.
• Position the canopy opposite the sport bar with the
netting facing away from you.
• Slide the four canopy sleeves onto the sport bar.
24
• With the seat at an angle, insert the tabs on the front
edge of the seat into the slots in the foot-well wall .
• Push down firmly on the edge of the seat above each
tab to snap the tabs into the slots .
• Rotate the back of the seat down to snap the seat
back tabs into the slots in the vehicle body. Push down
firmly on the seat back.
3
2
1
Seat
Tabs
Seat Back Tabs
Slot
1
2
3 PUSH
HERE
25
#8 x 1" Screw
• Insert a #8 x 1" screw into the rear of seat as shown.
• Tighten the screw with a Phillips screwdriver. Do not
over-tighten.
