• Insert each end of the long seat belt strap through a slot

in the center of the seat. Make sure the fasteners face the
outer edge of the seat.

• Pull each side of the long seat belt strap evenly through

the slots. Make sure to pull each T-loop through a slot.

• Turn the seat upright.

T-Loop

Fastener

Long Seat Belt Strap

Assembly

• Turn the seat upside down.

• Insert the fastener end of a short seat belt strap through

the slot near the outer edge of the seat. Make sure the
side of the seat belt with the fastener faces the outer
edge of the seat.

• Pull the short seat belt strap completely through the

slot until the last T-loop at the opposite end of the belt
catches against the slot. You will pull one T-loop through
the slot.

• Repeat this procedure to assemble the other short seat

belt strap.

Short Seat
Belt Strap

Fastener
End

Seat

End
T-Loops

Slot

T-Loop (Pull through slot)

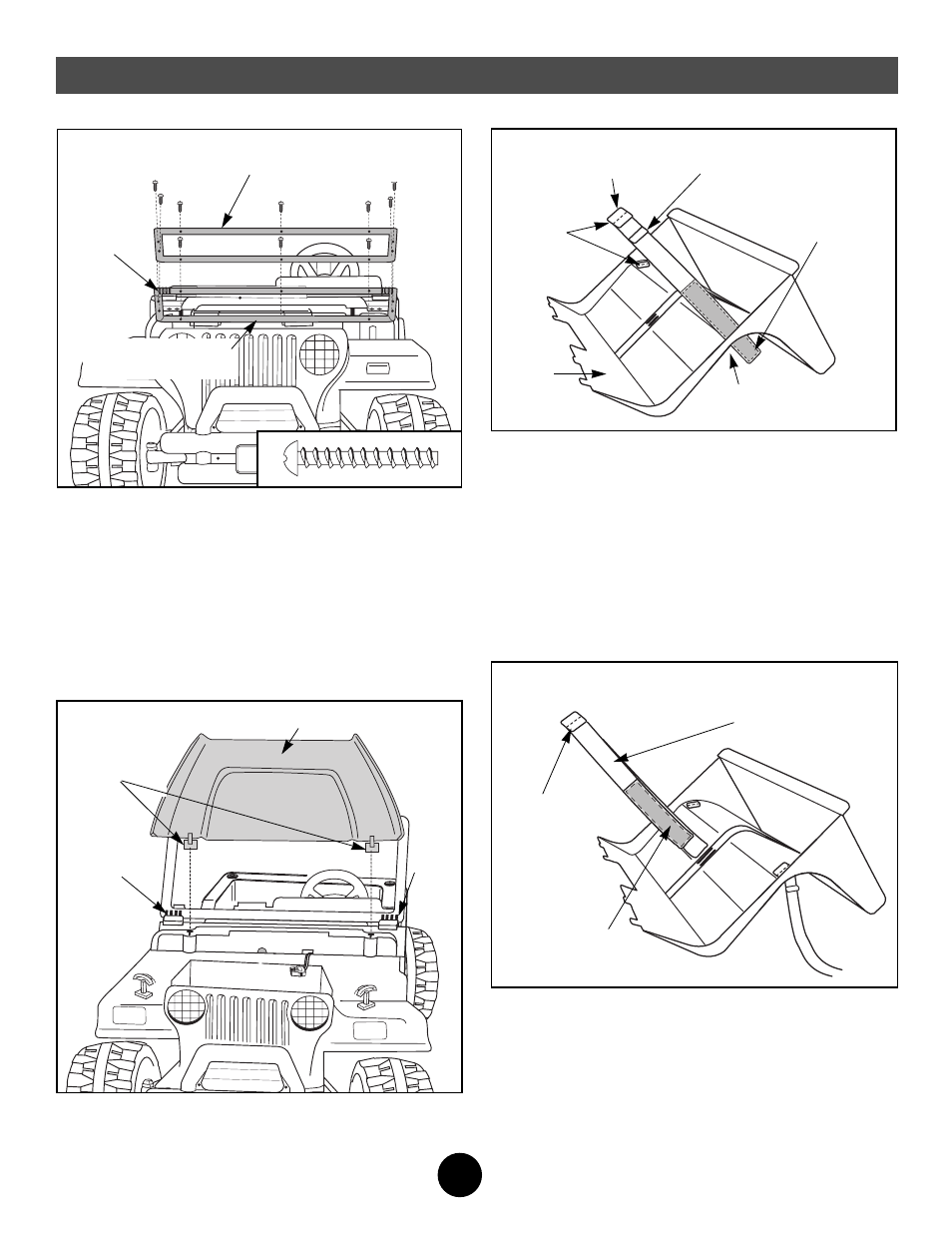

• Fit the back half of the windshield frame onto the front

half of the windshield frame. Make sure the slots at the
bottom of the two windshield frame halves are aligned.

• Insert ten #8 x 1

" screws into the back half of the

windshield frame.

• Tighten the screws with a Phillips screwdriver. Do not

over-tighten.

Helpful Hint! Squeeze the two windshield halves together
while tightening the screws.

• Lift the assembled windshield to the raised position.

Slots

Windshield Frame –
Front Half

Windshield Frame – Back Half

Hood

Tabs

Slot

• Position the hood over the front of the vehicle body.

• Insert the tabs on the hood into the slots in the

vehicle body.
