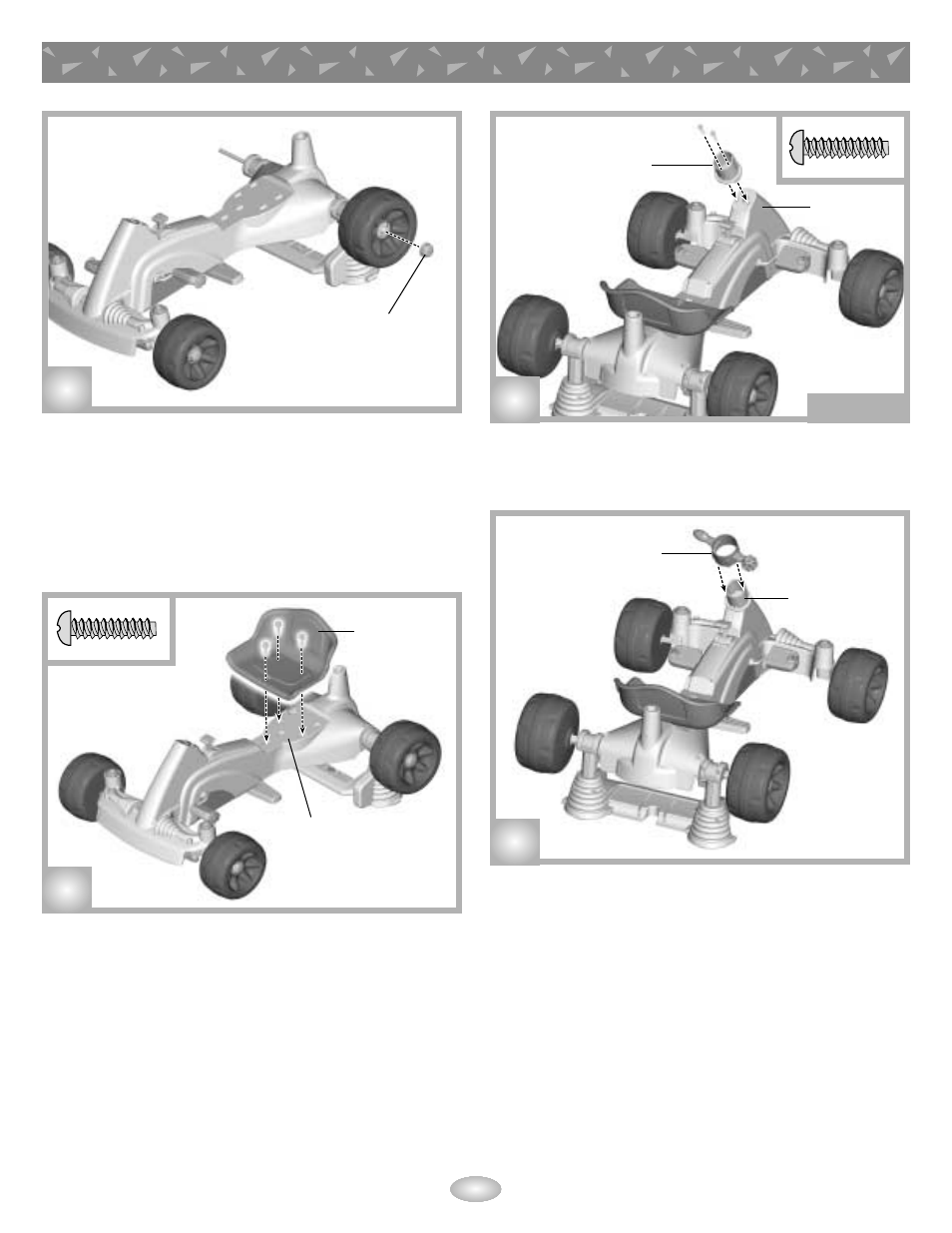

• Fit an axle cover to the large, rear wheel, as shown.
• Push the axle cover to “snap” it into place.
Hint: You may need to carefully tap the axle cover with a hammer to
secure in place.
• Repeat assembly steps 13-17 to assemble an axle bushing, large,
rear wheel, wheel bushing, .354" cap nut and axle cover to the other
end of the rear axle.
Assembly
18
• Fit the seat onto the frame.
Hint: Please refer to the Seat Adjustment instructions on page 13 to
place the seat in either of two positions (front or back), depending on
the size of your child.
• Insert three #8 x
3 /
4
" screws into the seat and tighten.
19
• Fit the steering wheel base to the front end of the frame.
• Insert two #8 x
3 /
4
" screws into the steering wheel base and tighten.
Frame
Seat
Frame
Steering Wheel Base
Axle Cover
20
• Position the turn signal so that the rounded side is upright.
• Fit the turn signal onto the steering wheel base.
Turn Signal
Steering Wheel
Base
Back View
