7
13

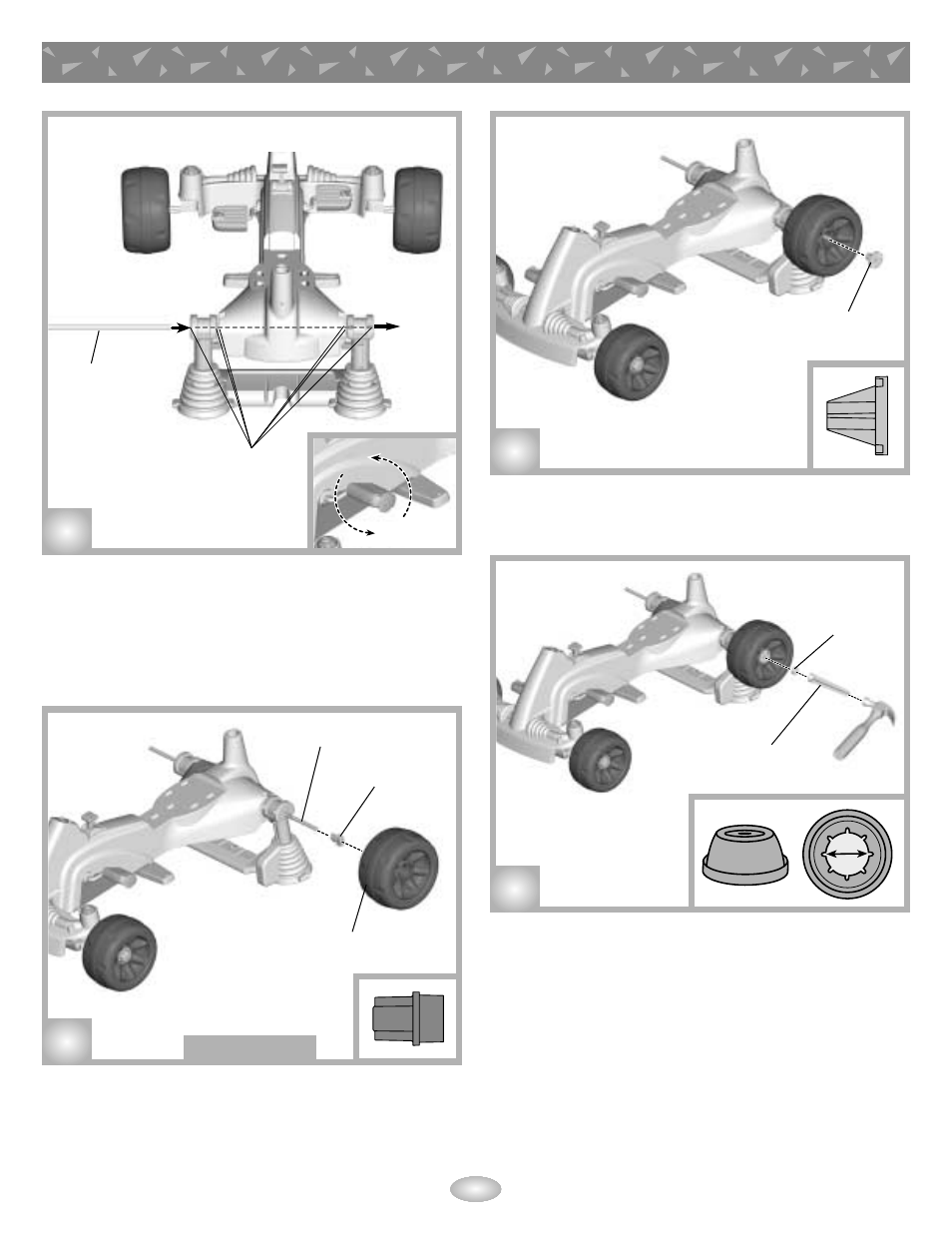

• Slide the smooth end of the rear axle into the hole in one side of the
bouncer base/spoiler, a frame bushing, the frame, the other frame
bushing and out through the hole in the other side of the bouncer
base/spoiler.
Hint: You may need to turn the pedals to align the gears in the back
end of the frame and allow the rear axle to easily pass through all parts.
14
• Slide an axle bushing, barrel side first, onto the end of the rear axle.
• Slide a large rear wheel, flat side first, onto the rear axle.
15
• Fit a wheel bushing, peg side first, into the large, rear wheel and onto
the rear axle.
Assembly
Rear Axle
Axle
Bushing
Wheel
Bushing
Rear Axle
Large
Rear Wheel
16
• Fit a .354" cap nut onto the end of the rear axle.
• Cover the cap nut with the assembly tool.
• While supporting the other end of the rear axle, tap the assembly tool
with a hammer to secure the cap nut to the rear axle.
Hint: You may need the help of another adult to hold the rear axle
in place while you tap the cap nut with a hammer onto the rear axle.
• Pull on the large, rear wheel to be sure it is secure on the rear axle.
.354"
Cap Nut
Assembly Tool
Insert Rear Axle
through these Parts
.354"
Front Side View
