Setting up the digital surround processor

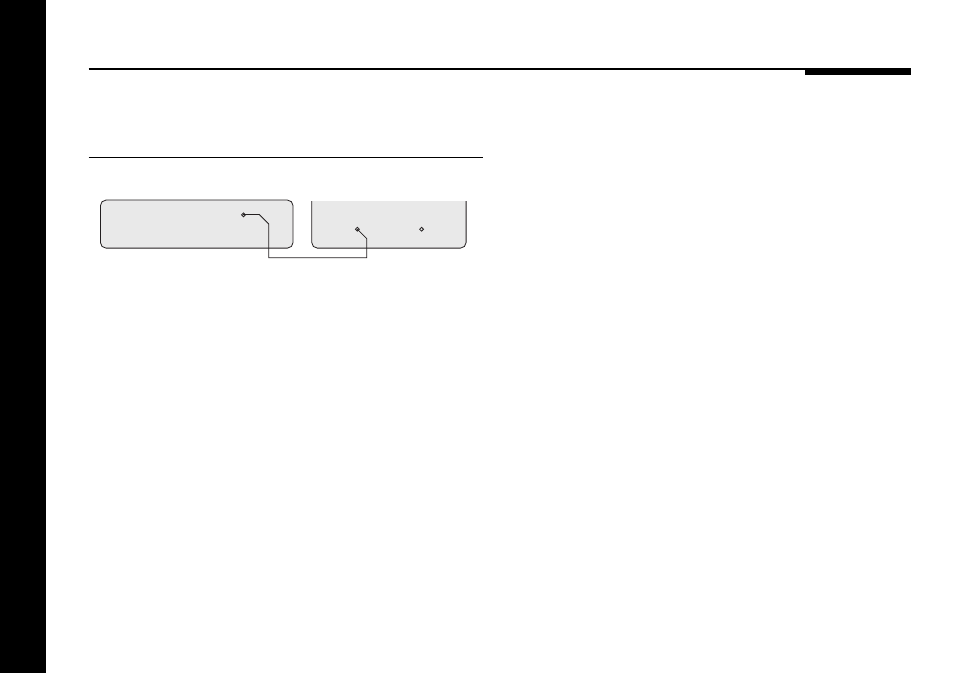

To connect an active subwoofer
(eg Meridian M1500 or M2500)
SUB
568 Digital Surround Processor Subwoofer
Audio lead
DIRECT
INPUT
CROSSOVER
INPUT
4
● Connect the SUB analogue output socket from the 568 Digital
Surround Processor to the subwoofer’s line level input.
The digital surround processor provides very high-quality
crossovers for the subwoofer, and for best results you should
use these instead of the subwoofer’s crossover. To do this set
the subwoofer filtering to Narrow, and remove any crossover in
the subwoofer or set it to its highest setting (eg 200Hz). If you
cannot do this set the subwoofer filtering to wide to switch off
the digital surround processor’s crossover and use Sine/Sub
mode to match the subwoofer’s crossover frequency. For more
information see Subwoofers, page 87.
If you are using an M1500 or M2500 use the L+ input and
configure it for Bypass; refer to the subwoofer’s user guide for
more information.
