Freecom Technologies Multimedia Player - Manual (Page 15)

15
GB
4

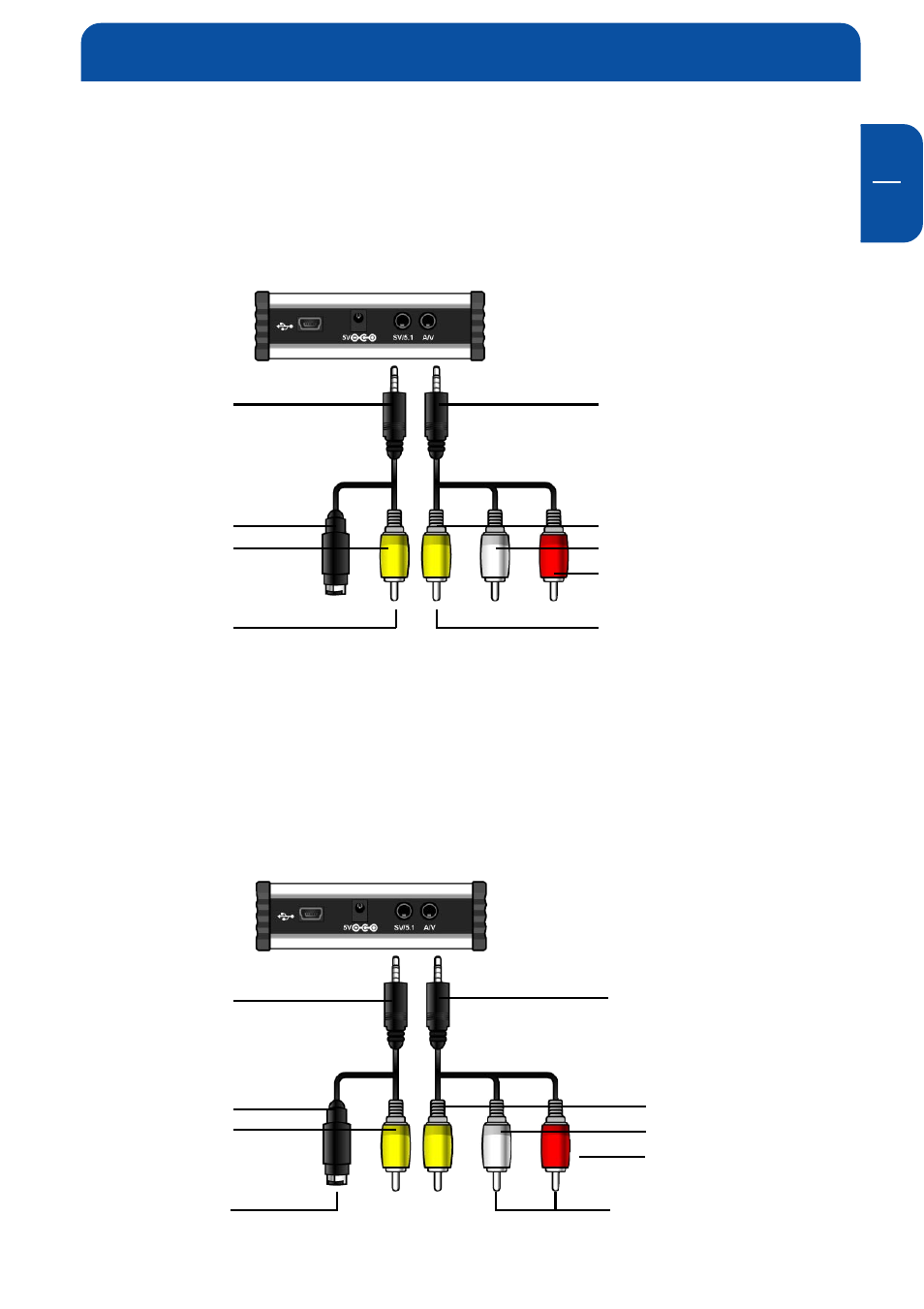

4.2 Connect by Composite for Video & 5.1Ch for Audio
Connection for Video through Composite and for Audio through
5.1Ch (Coaxial)
After cable connection, set the Audio as 5.1Ch at Setup page of the player.
4.3 Connect by S-Video for Video & Stereo for Audio
Connection for Video through S-Video and for Audio through Stereo
Yellow
White
Red
Connect AV 1 Cable (Yellow,
White, Red) to AV Jack.
Black
Yellow
Connect to Composite (CVBS) Jack
of TV. Connect to Coaxial jack of
an Amplifier (Receiver)
Connect AV 2 Cable (Yellow,
SVideo) to SV/5.1 Jack.
Yellow
White
Red
Black
Yellow
Connect AV 1 Cable (Yellow,
White, Red) to AV Jack. Connect AV 2 Cable (Yellow,
SVideo) to SV/5.1 Jack.
Connect to Audio Jacks of TV or
HiFi White = L (Left) Audio Input /
Red = R (Right) Audio Input. Connect S-Video (black
color) to S-Video Jack of TV.
Connecting the player to external AV Devices
