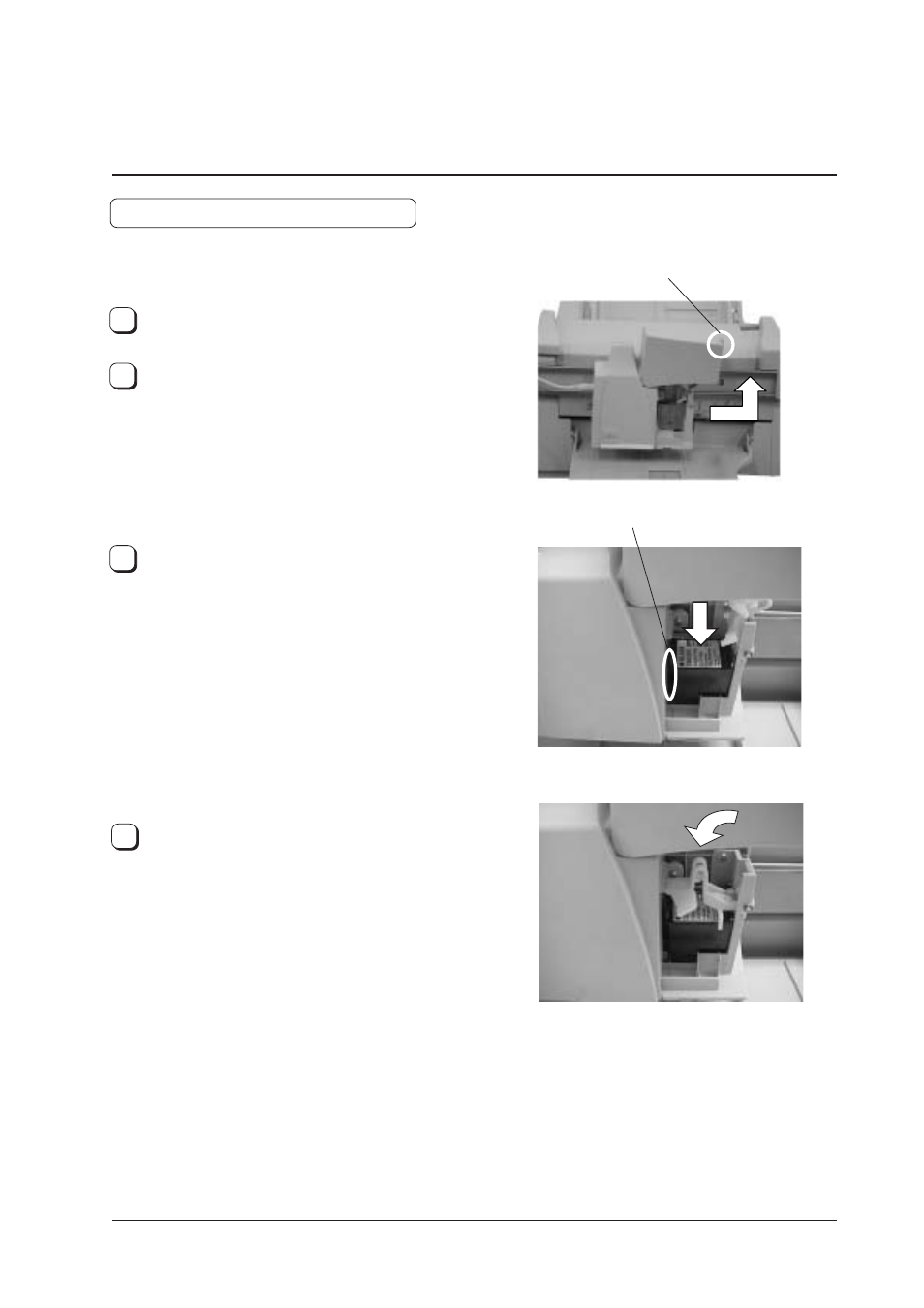

Mount the print cartridge as follows:
Turn off the scanner and disconnect the power cable.
Hold and raise the knob of the imprinter cover in the
direction of the arrow to open the cover.
Insert the print cartridge so that its tab is positioned
toward the left as shown in the figure to the right.
Lower the lever gently until it locks in place to
secure the print cartridge.
1
4
2
(3) Mounting the Print Cartridge
Tab
3
Knob
