3-9

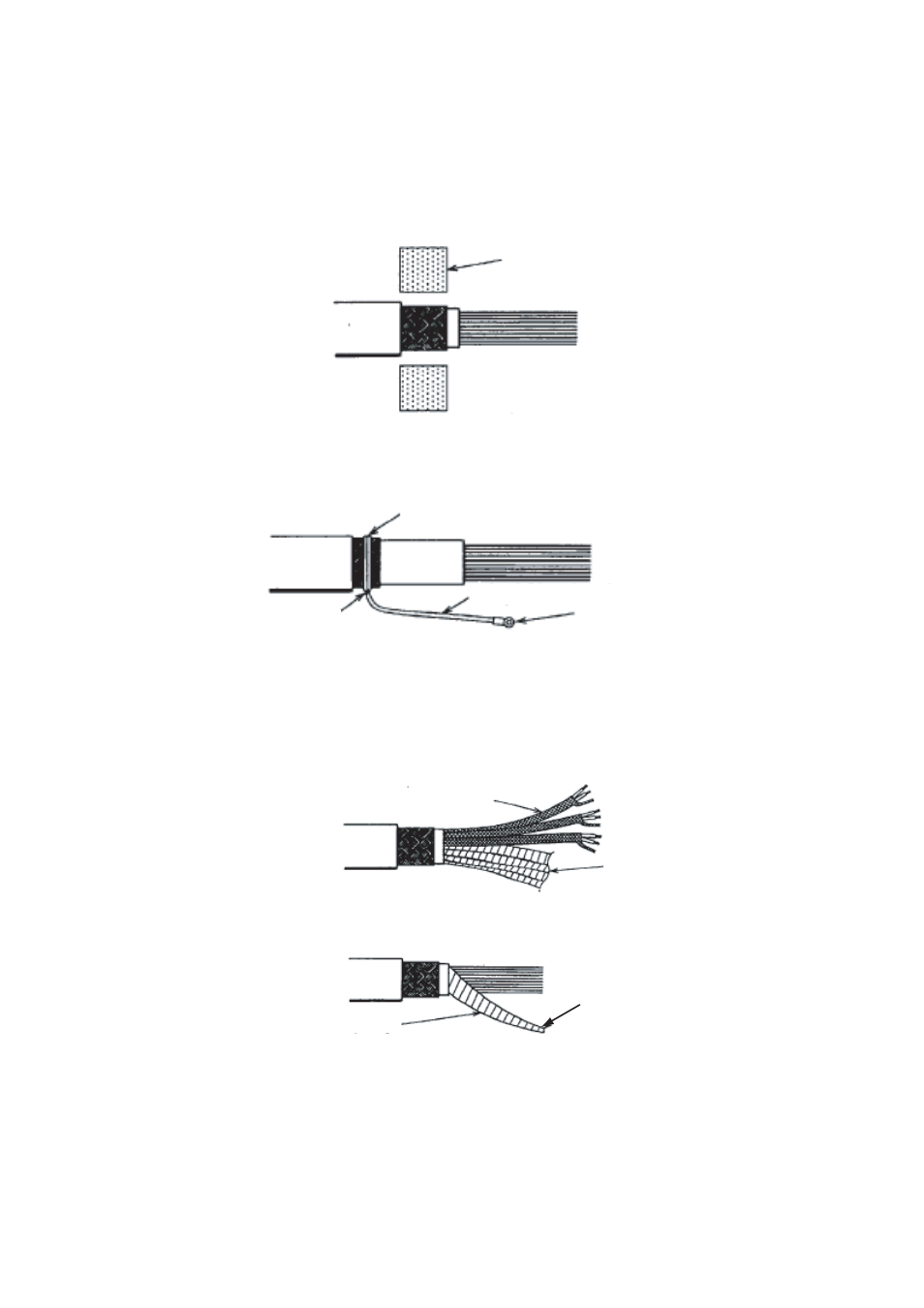

3.3.5 Other Cables
All other cables are connected to terminal boards. Fabricate their ends as follows.
1) Cable Armor
Expose the armor and clamp it with the cable clamp.
Cable Clamp
Solder a vinyl sheath wire to the armor and connect it to the grounding terminal.
Bare wire
Soldering
Vinyl Sheath Wire
To Earth Terminal
2) Cable Shield
Undo individual shields only near at the terminal boards to which the wires are connected.
Further, tape shields for insulation.
Vinyl Sheath
Individual Shield
Undo common shield at entrance of the unit and tape it for insulation.
Common
shield
Vinyl Tape
