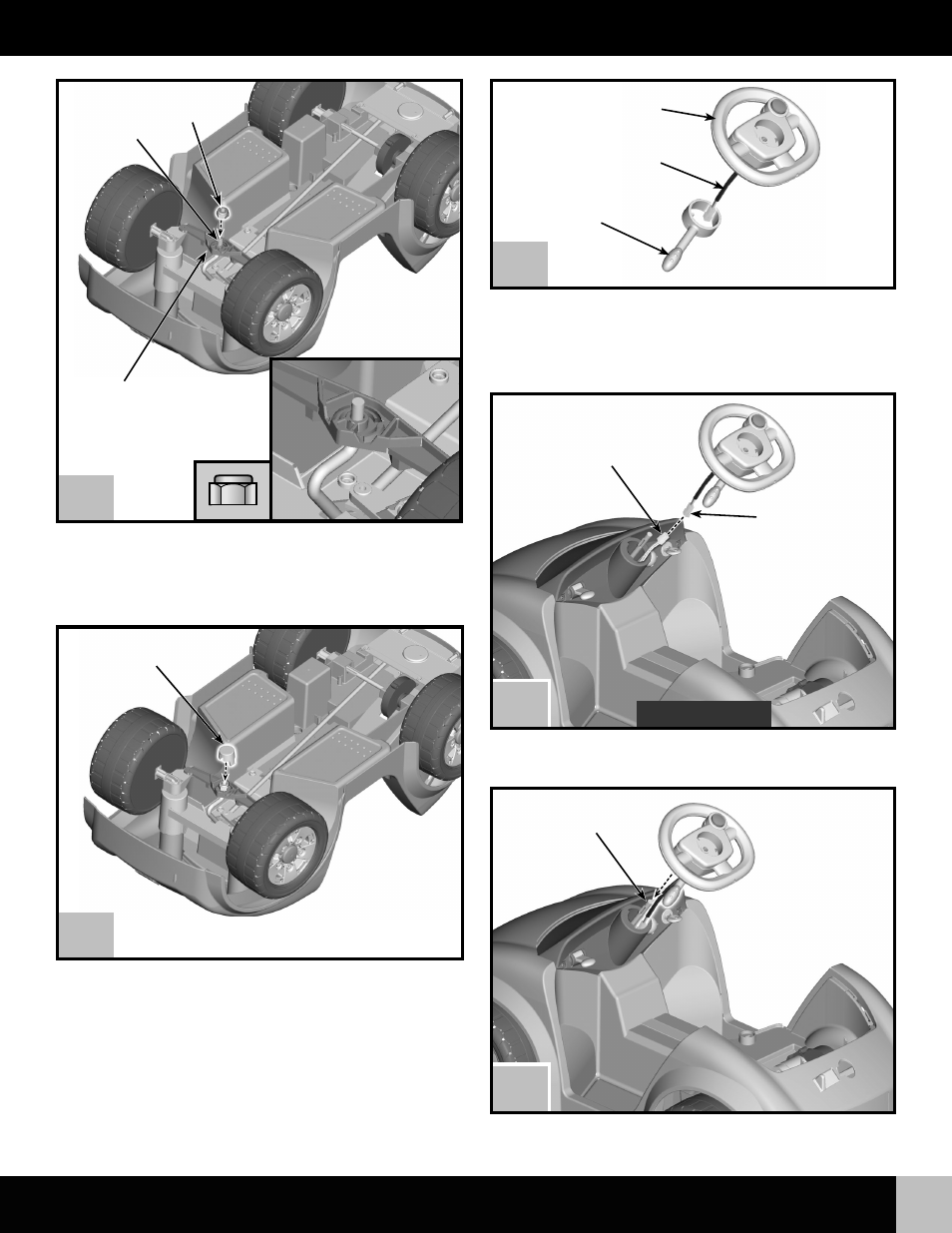

• Fit the end of the steering column through the hole in the
steering linkage.
• Fit a lock nut onto the end of the steering column.
• Tighten the lock nut with the assembly tool.
Steering Column Cover
• Place the steering column cover over the lock nut and push to
"snap" it into the steering linkage.
• Turn the vehicle upright.
Lock Nut
5
6
Steering Wheel
Wire with Connector
Turn Signal
• Position the turn signal with the hollow side down.
• Fit the wire with connector on the end of the steering wheel
through the center of the turn signal.
• Fit the turn signal onto the steering wheel.
7
ASSEMBLY
End of Steering
Column
Steering Linkage
• Plug the motor harness connector from the vehicle into the
steering wheel connector.
• While carefully feeding the wire down into the dash, fit the steering
wheel onto the end of the steering column.
8
9
DASH VIEW
Motor Harness
Connector
Steering
Column
Steering Wheel
Connector
