Assembly 3 – Fisher-Price R2510 User Manual
Page 8

R2510pr-0921
8

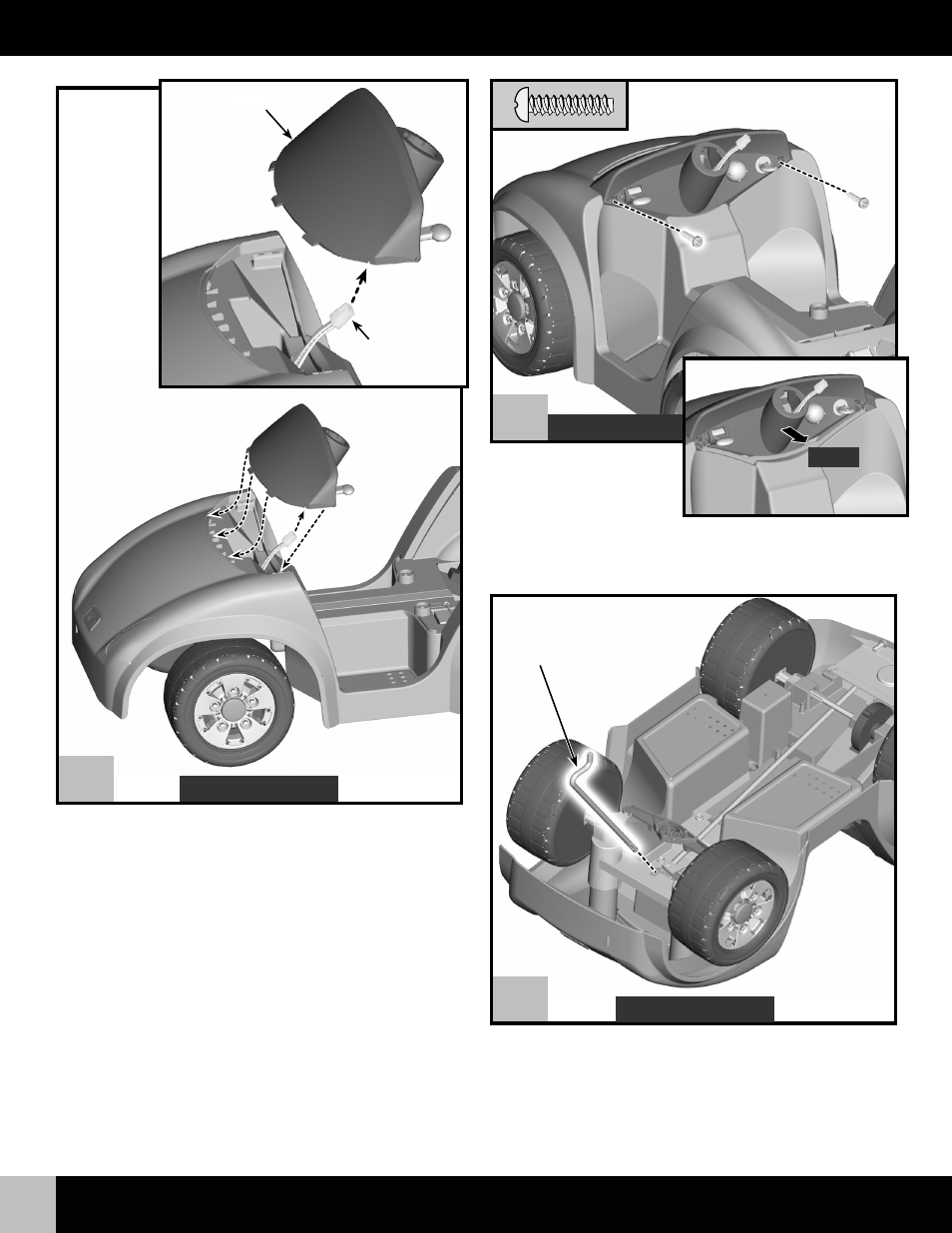

• Locate the wire connector inside the front end of the vehicle.
• While feeding the wire connector through the hole in the dash,
fit the tabs on the dash onto the front end of the vehicle.
Dash
ASSEMBLY
3
Pull
• Turn the vehicle over.
• Remove the protective caps from the ends of the steering
column and throw them away.
• Fit the straight end of the steering column down through the
hole in the dash.
Steering Column
4
BOTTOM VIEW
SIDE VIEW
2
DASH VIEW
• Insert two #8 x ¾
" screws
straight into the dash, as
shown. Tighten the screws.
Hint: If the screw holes in the dash do not align with the vehicle,
place a finger in the steering wheel opening in the dash. Pull the
dash toward the back of the vehicle to reposition it.
Wire Connector
