Your new Super Reverb

®

amplifier is a faithful

reproduction of a 1965 Fender

®

Super Reverb

®

amp.

Delivering world-class Fender

®

tone then and now, this

legendary Blackface™ amp features:

• 40 watts output power @ 2

• Four, 10 inch vintage reissue Jensen

®

speakers

• Two, 6L6GC tubes, part number 053980

• Four, 12AX7A tubes, part number 013341

• Two, 12AT7 tubes, part number 023531

• One, 5AR4 tube rectifier, part number 041400

• Two-button footswitch (Reverb and Vibrato)

Thank you for choosing Fender

Thank you for choosing Fender

®

®

—T

—T

one, T

one, T

radition and Innovation—since 1946

radition and Innovation—since 1946

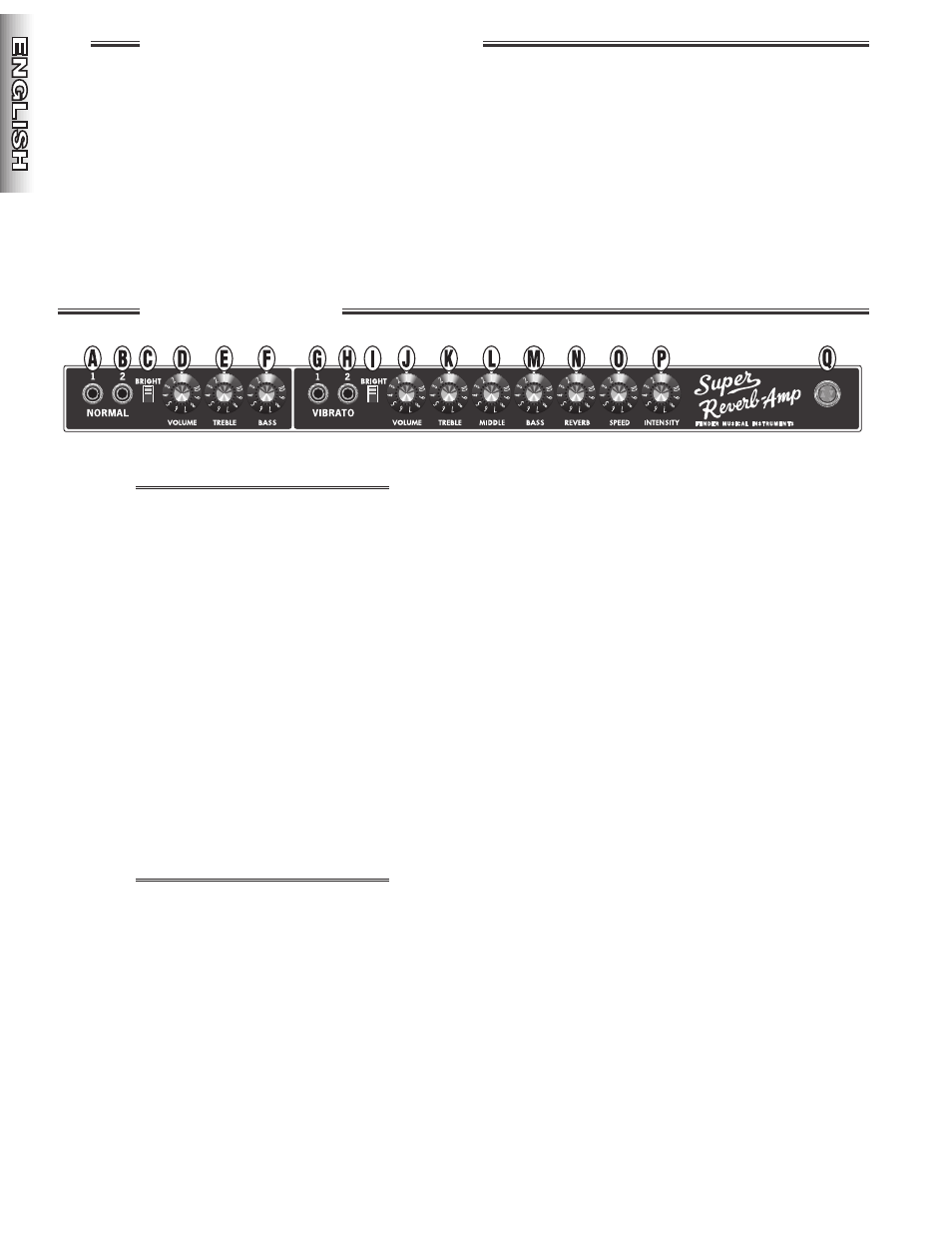

NORMAL CHANNEL

A. NORMAL INPUT 1 - Plug in connection for instru-

ments. Provides 6dB MORE gain than input 2.

B. NORMAL INPUT 2 - Plug in connection for instru-

ments. Provides 6dB LESS gain than input 1.

C. BRIGHTNESS SWITCH - Provides extra high-

frequency response for the normal channel inputs
(most effective at lower volume settings).

D. NORMAL CHANNEL VOLUME - Adjusts the overall

loudness of the normal channel.

E. TREBLE - Adjusts the high-frequency level of the

normal channel.

F. BASS - Adjusts the low-frequency level of the normal

channel.

VIBRATO CHANNEL

G. VIBRATO INPUT 1 - Plug in connection for instru-

ments. Provides 6dB MORE gain than input 2.

H. VIBRATO INPUT 2 - Plug in connection for instru-

ments. Provides 6dB LESS gain than input 1.

I. BRIGHTNESS SWITCH - Provides extra high

frequency response for the vibrato channel (most
effective at lower volume settings).

J. VIBRATO CHANNEL VOLUME - Adjusts the overall

loudness of the vibrato channel.

K. TREBLE - Adjusts the high-frequency level of the

vibrato channel.

L. MIDDLE - Adjusts the middle-frequency level of the

vibrato channel.

M. BASS - Adjusts the low-frequency level of the vibrato

channel.

N. REVERB - Adjusts the reverb level of the vibrato

channel only. See FOOTSWITCH (item X).

O. VIBRATO SPEED - Adjusts the speed of the vibrato

effect on the vibrato channel.

*** NOTE: The vibrato effect only works if the footswitch

is connected. See FOOTSWITCH (item X).

P. VIBRATO INTENSITY - Adjusts the intensity of

vibrato effect on the vibrato channel.

Q. PILOT LAMP - Illuminates when the amp is receiving

power. To access the bulb for replacement, unscrew
the red jeweled cover. Replace with bulb type T47.
