Faria Instruments Commander - Manual (Page 3)

Use with:
Commander Speedometer
with Depth Sounder,
Commander Speedometer
with Depth Sounder and
PerfectPass® Cruise.
Installation:
CAUTION: Disconnect the battery during
installation. Tighten nuts on the backclamp
only slightly more than you can tighten
with your fingers. Six inch-pounds of
torque are sufficient. Over-tightening could
result in damage to the instrument and
may void your warranty.

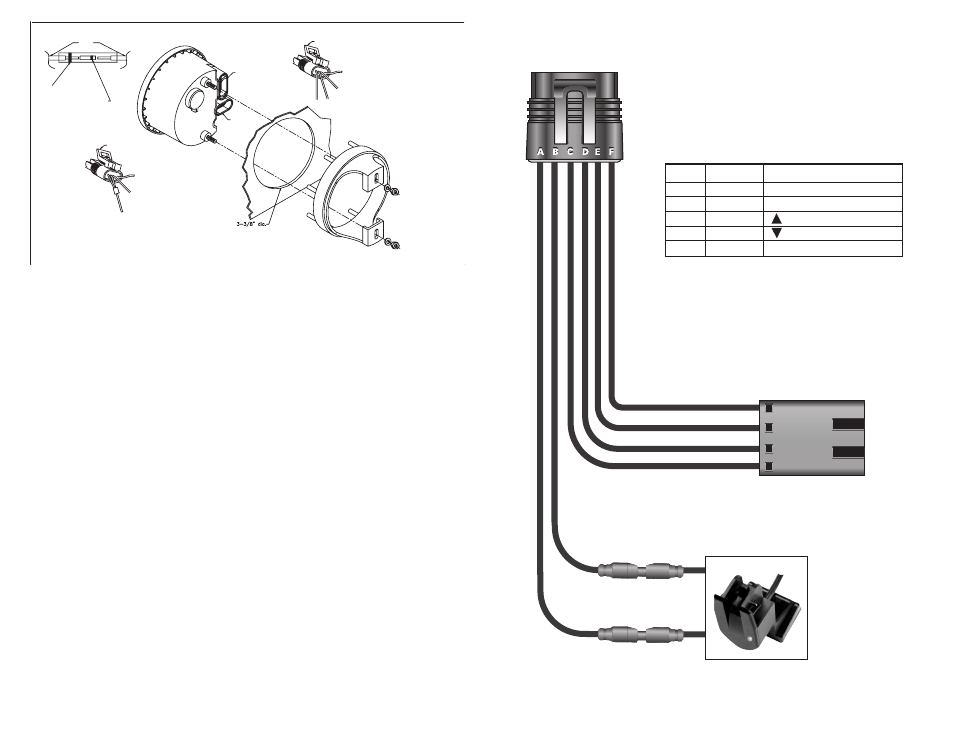

1. Cut a 3-3/8” diameter hole in the dash
and mount the gauge with the backclamp
supplied.
Follow the enclosed instructions for
installing the sender. Once the sender is
installed and you have run the cables to the
Commander, connect the wires from the
sender to the corresponding Small or
Large connectors as illustrated using the
butt connectors supplied. The butt
connectors have a heat activated
waterproofing. Once the butt connections
have been crimped slowly apply heat with
a heat gun until you see sealant coming
out of the connector ends. It is
recommended to wrap the connections
together with electrical tape for further
protection.
2. Smaller Connector Socket
Speedometer with Depth Sounder:
Follow the wiring diagram at the end of
this manual for wiring connections.
HN0353.
3. Larger Connector Socket
Speedometer with Depth Sounder:
Follow the wiring diagram at the end of
this manual for wiring connections.
HN0357.
Speedometer with Depth Sounder and
PerfectPass® Cruise.
Follow the wiring diagram at the end of
this manual for wiring connections.
HN0352.
Find the drawings in the back of this
manual.
Used for all splices.
Wires
Heat Shrink Tube
(red or blue)
Metal Butt Connector
(red or blue).
Used for all splices.
Larger
Connector
Socket
Smaller
Connector
Socket
Smaller
Connector
Larger
Connector
Note: For wiring
diagram for the
Larger Connector
Socket see HN0357
or HN03352 for
PerfectPass® Cruise.
Note: For wiring
diagram for the
Smaller Connector
Socket see HN0353.
Page 1 Page 10
Harness HN0352
6 - pin connector
PerfectPass® Cruise
(optional)
To Commander
PerfectPass® Cruise
Master Module
Dash Gauge
Connector
Black
White
Blue
Red
6- pin connector
(CN0083)
Pin A Blue Depth Sounder Signal
Pin B Black Depth Sounder Ground
Pin C Red LED Signal
Pin D Blue Up Button
Pin E White Down Button
Pin F Black Ground
ECR 1903 12/21/01
(Down Button)
(Up Button)
(LED Signal)
(Ground)
Black
(Depth Sounder Ground)
Blue
(Depth Sounder Signal)
Paddle Wheel Sender
