Page 11

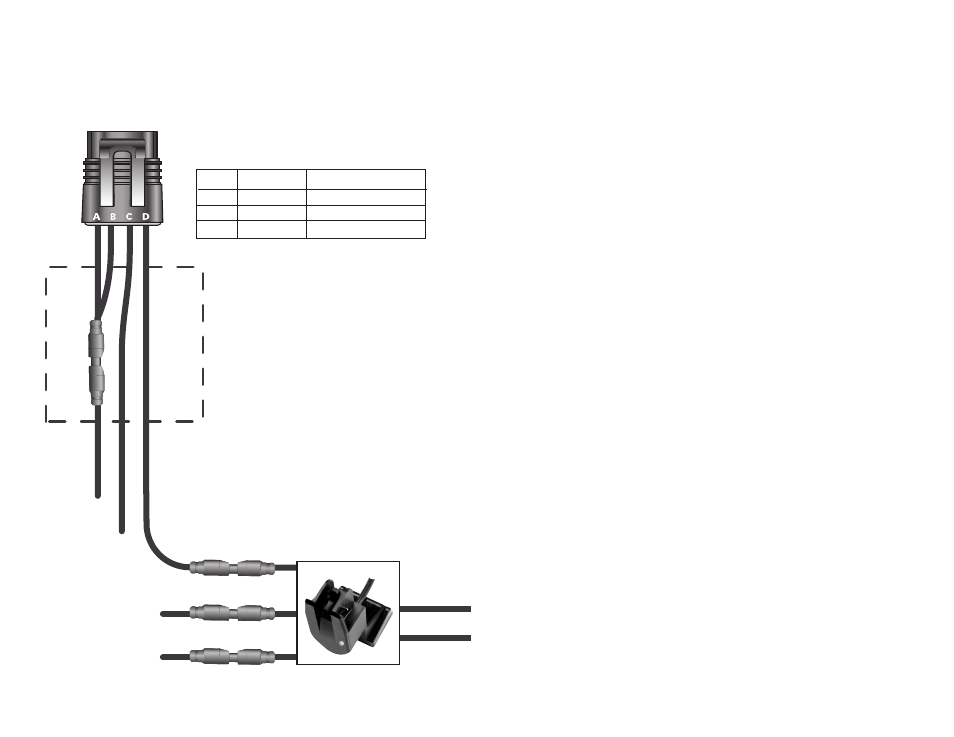

Harness HN0353
Small Connector
Small Plug
(CN0082)
To Commander
Shrink Tubing
or Wrap
Black
Green
Red
Bare
Purple
White
w/ Blue Stripe
Pin A Purple +12 Ignition Power
Pin B Purple +12 Ignition Power
Pin C Black Ground
Pin D White/Blue Speedometer Input
ECR 1903 12/21/01
(Ignition)
(Paddle Wheel Signal)
(Paddle Wheel Ground)
(Paddle Wheel +12 vDc)
(Ground)
Blue
(Depth
Sounder
Signal)
Black
(Depth
Sounder
Ground)
Paddle Wheel Sender
Installation
Smaller Connector Page 1
Larger Connector Page 1
Description
Lighting
Page 2
Set-Up Mode Page 2
Speedometer Scale Selection Page 3
Operation
Speedometer
Page 4
Trip Log Page 4
Reset Page 4
Units Page 4
Calibration Page 5
Depth Sounder Page 5
Shallow Alarm Page 6
Deep Alarm Page 6
Keel Offset Page 6
Units Page 6
Loss of Signal Page 6
Calibration Page 6
PerfectPass® Cruise Page 7
Operation Page 8
Figure 1 Set- Up Mode Page 3
Figure 2 Speedometer LCD Display Modes Page 7
HN0352 Larger Connection PerfectPass Wire Diagram Page 10
HN0353 Smaller Socket Connection Wire Diagram Page 16
HN0357 Larger Connection Wire Diagram Page 17
