If the Commander instrument is not in
PerfectPass Cruise mode the buttons and
display will not perform
PerfectPass Cruise
functions. The LED indications, however,
are still active and will display the status of
the
PerfectPass Cruise system as described
above.
Page 9
M Mode
Button
Down
Button Up
Button
Description

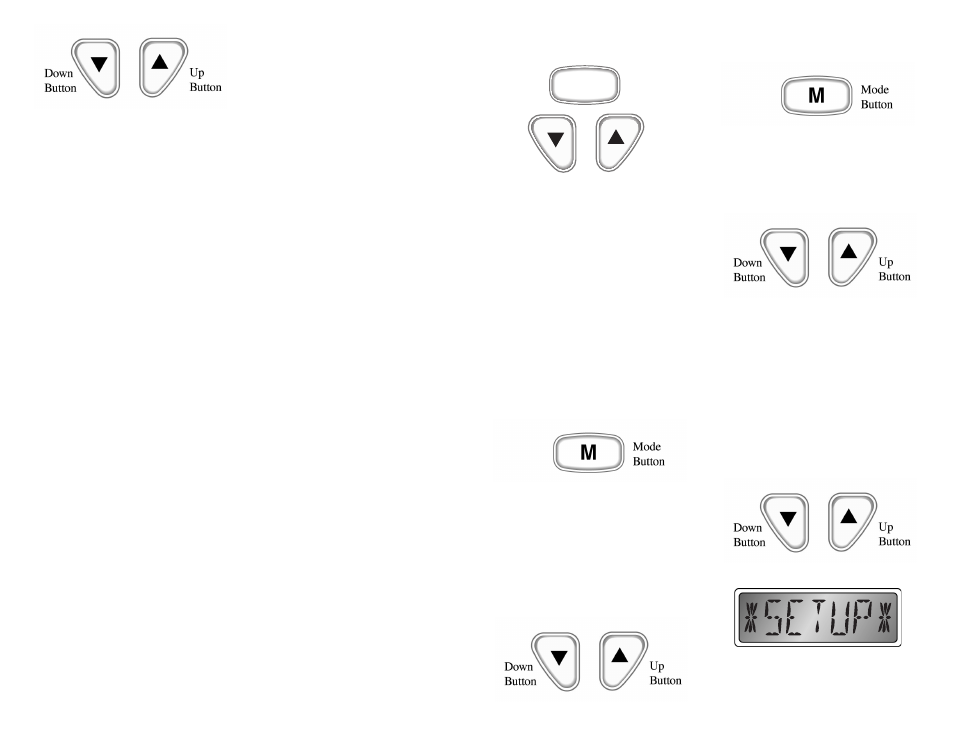

The Commander has three push buttons;
The instrument has three push buttons;
“Up,” “Down,” and “Mode” buttons; that
control the modes of operation. The
“Mode” button is used to change the
function of the LCD display and to access
submenus and adjustable settings. The
“Down” and “Up” buttons are used to
modify the settings.
In normal operation mode, pressing the
“Mode” button for a short period of time
causes the display to cycle between the
Depthsounder display and the Trip Log
display. Pressing and holding the “Mode”
button causes the display to change to the
“settings” submenus (see Figure 2).
When the settings menus have been
selected, pressing the “Mode” button for a
short period of time causes the display to
cycle through the setting options. Within
each setting selection, pressing the
“Down” and “Up” buttons causes the
affected setting to change. The
microprocessor will automatically record
the new settings as you adjust them.
When in a setting menu, pressing and
holding the “Mode” button returns to the
main function.
Operation
Lighting
In normal operating mode the instrument
lighting can be adjusted by pressing the
“Up” and “Down” buttons.
Setup Mode
The Speedometer full scale deflection
setting can be changed using the Setup
Mode (see Figure 1). Use this option only
if you have reason to believe that your
setting is wrong. Setting an incorrect value
in this menu can result in extremely
inaccurate performance of the
speedometer. To access the Setup Mode,
press and hold both the “Up” and “Down”
buttons while turning on the instrument.
The display will show “*SETUP*”.
Briefly pressing the “Mode” button will
change the display to the setting menu.
The “Up” and “Down” buttons are used to
Page 2
