-5-

595-5345-07

1 2

12345678

Inside

Transmitter

Transmitter Battery Replacement

Install four alkaline AAA batteries. See
diagram inside push button for correct bat-
tery orientation.

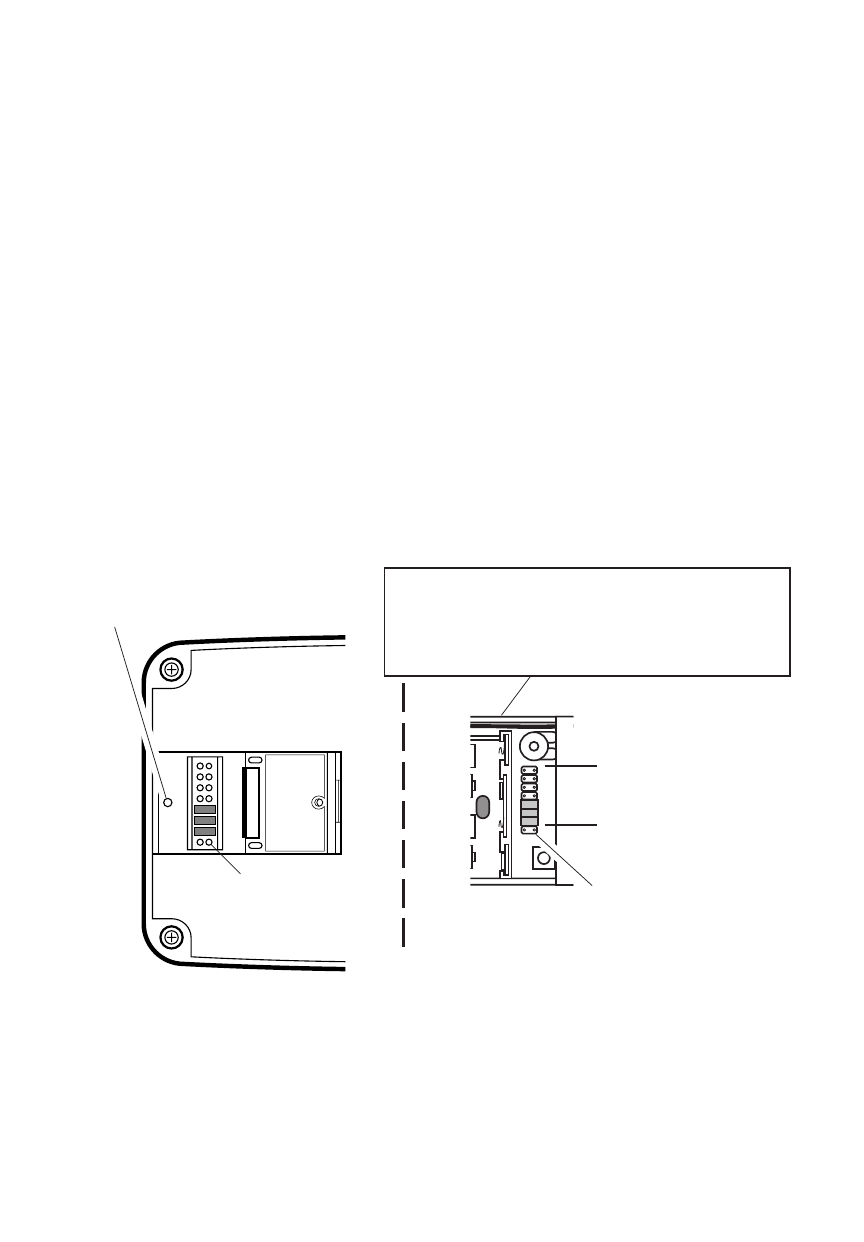

* Code Settings

1-7 Must Match Both

Transmitter and Chime

Remove screw to

open access door

Back of

Chime

Tune Setting

(Not used on

all models)

Note: Some models might require
the use of tweezers to remove and
replace the jumpers.

Tune Settings

Your Heath

/Zenith wireless chime has different selectable tunes:

Ding (one

note),

Ding-Dong (two note), or Westminster (eight note) (Available on se-

lected Heath

/Zenith chimes). The factory setting is for the Ding-Dong tune

(or Westminster, when available). This tune can be changed by following the
instructions below.
•

Ding (one note tune)

Transmitter: Add a jumper to location 8.
•

Ding-Dong (two note tune)

Transmitter: Remove jumper from location 8.
Chime: Remove jumper from location 8.
•

Westminster (Eight note tune) (Available on selected Heath

/Zenith

chimes)

Transmitter: Remove jumper from location 8.
Chime: Add a jumper to location 8.
Note: All models have both front and back door tune capabilities. You may pur-
chase any Heath

/Zenith wireless push button for a second entrance.
