CONTROLS
DESCRIPTION OF CONTROLS
Sweeper Lift Crank
Use the sweeper lift crank to raise and lower the
broom. Turn the crank clockwise to raise the boom
and counterclockwise to lower the broom.
Blade Control Lever
This lever is used to engage and disengage engine
power to the sweeper. Move the lever forward to the
ON
position to engage broom rotation and pull it
rotation.
back to the OFF position to disengage broom
Hydraulic Drive Release Lever
(optional part)
Pull out and rotate this lever to lock it in the “out”
position. With the lever out, the hydraulic drive
pumps are disengaged from the engine. This
reduces the load on the engine for starting in
extremely cold weather. Once the engine has
started, pull and turn the lever, and allow it to return
to the "in" position.

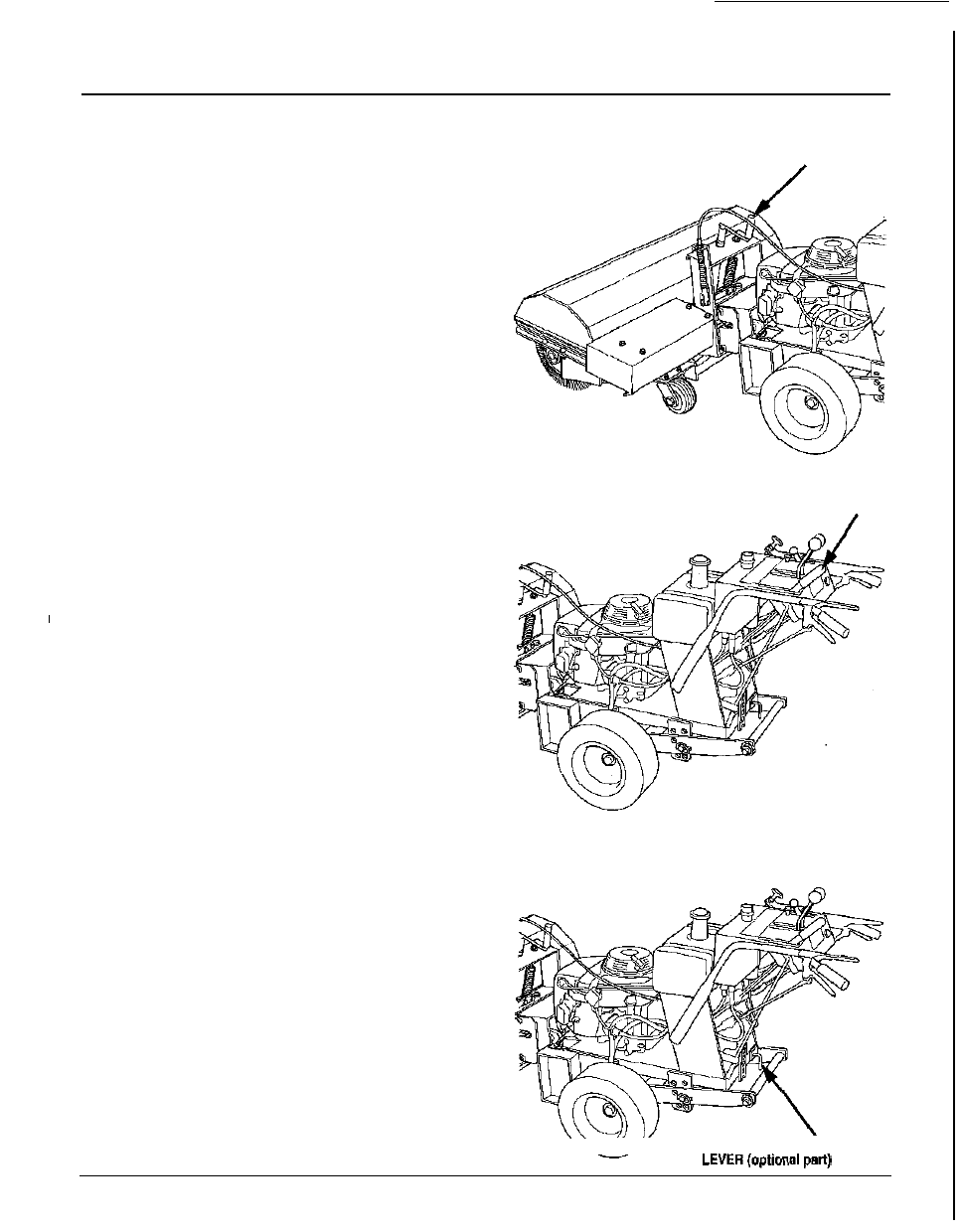

SWEEPER LIFT CRANK
BLADE CONTROL LEVER
HYDRAULIC DRIV E RELEASE
FS7054 FRONT SWEEPER
