INSTALLATION

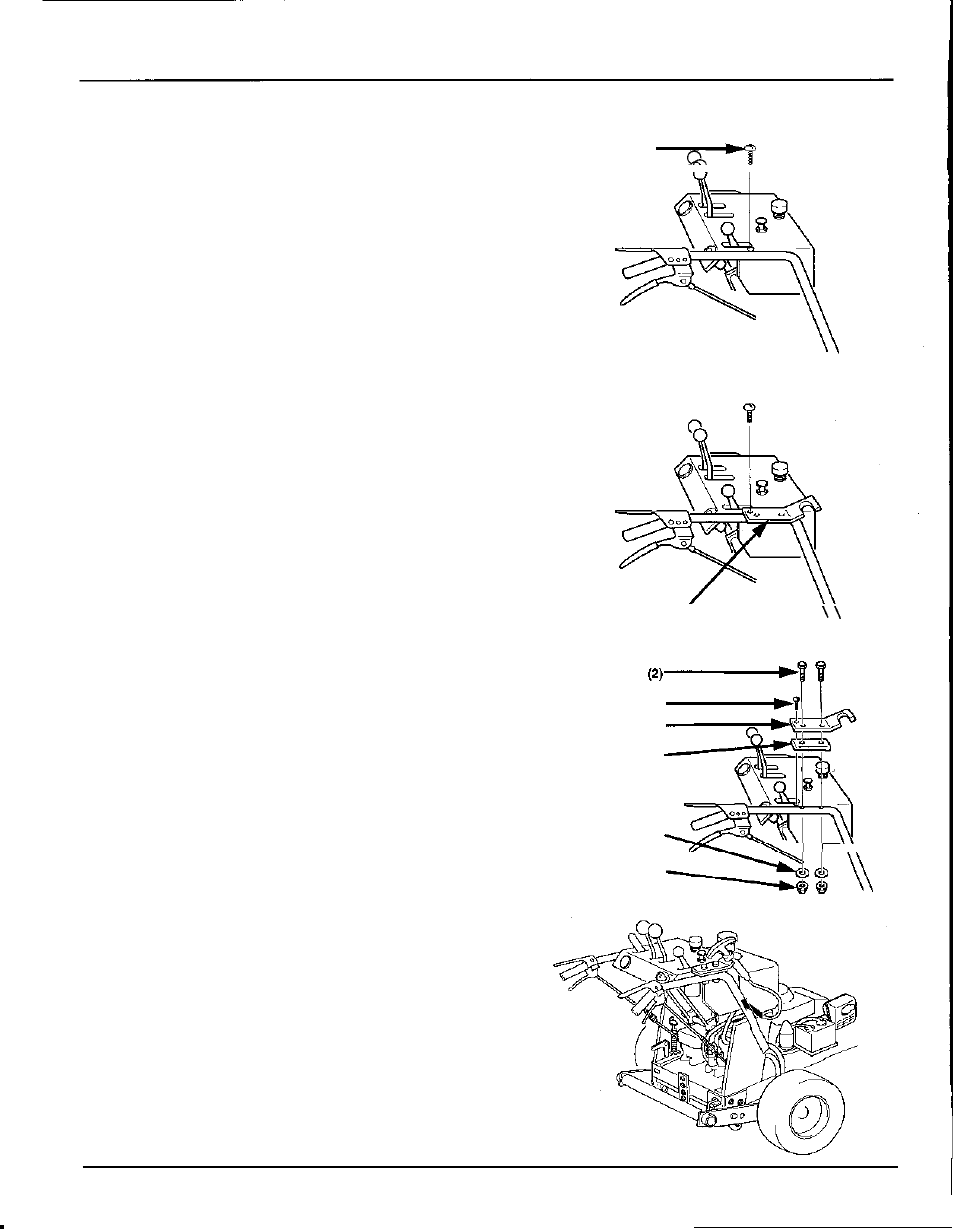

ANGLE RELEASE CABLE INSTALLATION
1. Remove the forward throttle mounting screw.
Position the cable bracket so it is parallel to the
right side handle tube.
Use the throttle mounting screw to temporarily
hold the cable bracket in position.
2. Use the cable bracket as a guide to mark, and
drill the two mounting bolt holes in the handle
tube. Use a center punch to mark the center of
one of the holes in the cable bracket. Put on
safety glasses and drill a 21/64-inch hole into the
handle tube. To hold the bracket in place, install
a 5/16 x
2 inch bolt through the cable bracket
and handle tube. Then drill the second hole
through the handle tube.
3. Remove the cable bracket and deburr the drilled
holes in the handle tube.
4. Put the cable bracket and spacer into position,
and secure them with the throttle mounting screw
and
two 5/16 x 2-inch bolts, washers, and flange
nuts as shown.
THROTTLE MOUNTING
SCREW
I
CABLE BRACKET
5/16 x 2" HEX BOLT
THROTTLE SCREW
CABLE BRACKET
SPACER
5. Route the cable behind the fuel tank and above
the speed control arms.
5/16" FLAT WASHER (2)
\ \
5/16" FLANGE NUT (2)
FS7054 FRONT SWEEPER
29
