MAINTENANCE & ADJUSTMENTS
Broom
Disassembly
1.
Use a 1/8-inch allen wrench to loosen the set screws on the pillow block bearing opposite the 45-tooth
2.
Remove the bolts from the end plate and remove the end plate.
3.
Slide
off
half the brushes and wafer spacers. Support the tri-core center open end, and slide the
sprocket. Remove the pillow'block bearing.
remaining brushes and wafer spacers to the open side. Then remove the support and remove the
remaining brushes and wafer spacers from the tri-core center.

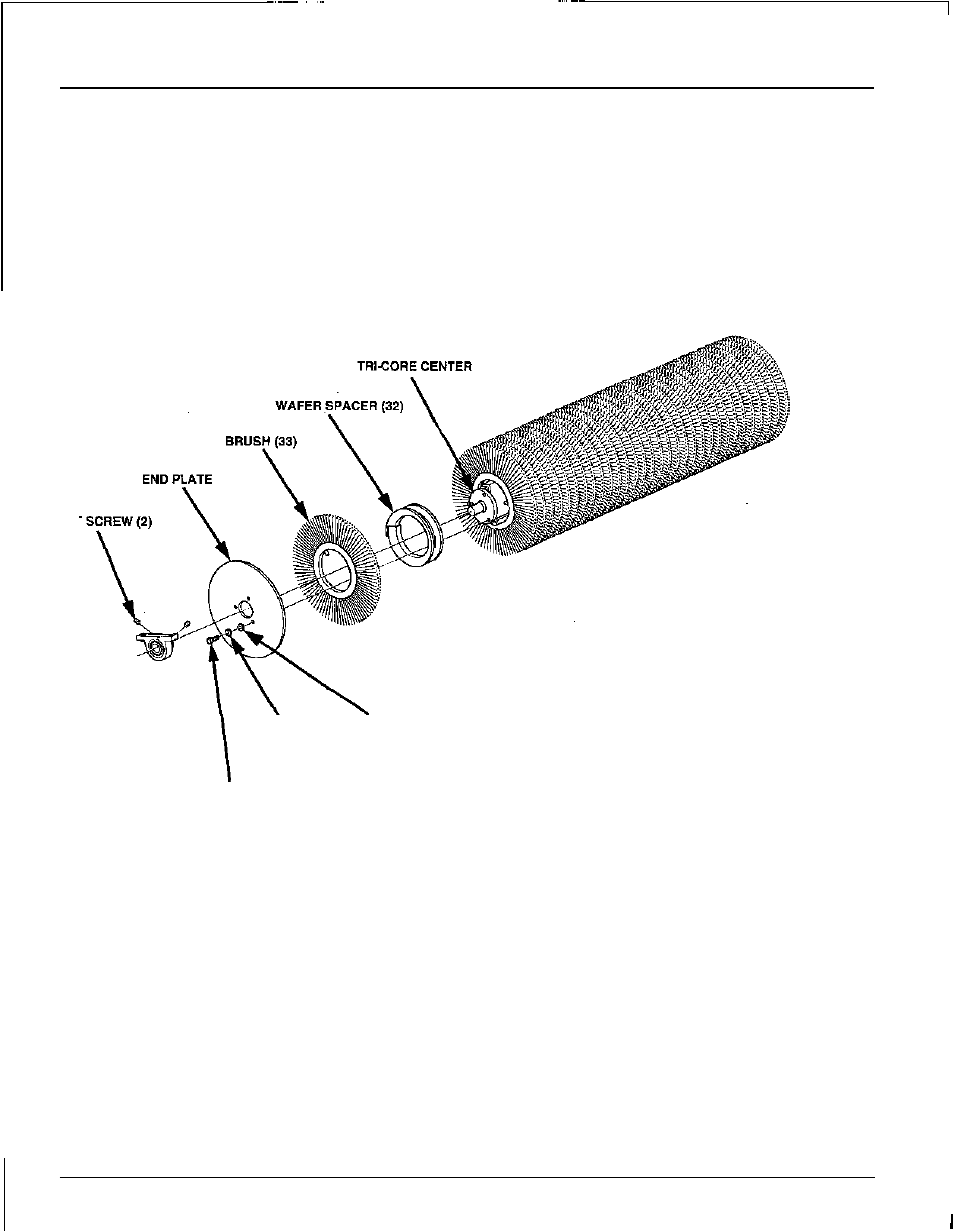

SET
\
1/4 in FLAT WASHER (3)
1/4
in
LOCK WASHER
(3)
1/4-20
in HEX BOLT
(3)
22
FS7054 SWEEPER
