15
41225-01 • 12/04/09 • Hunter Fan Company

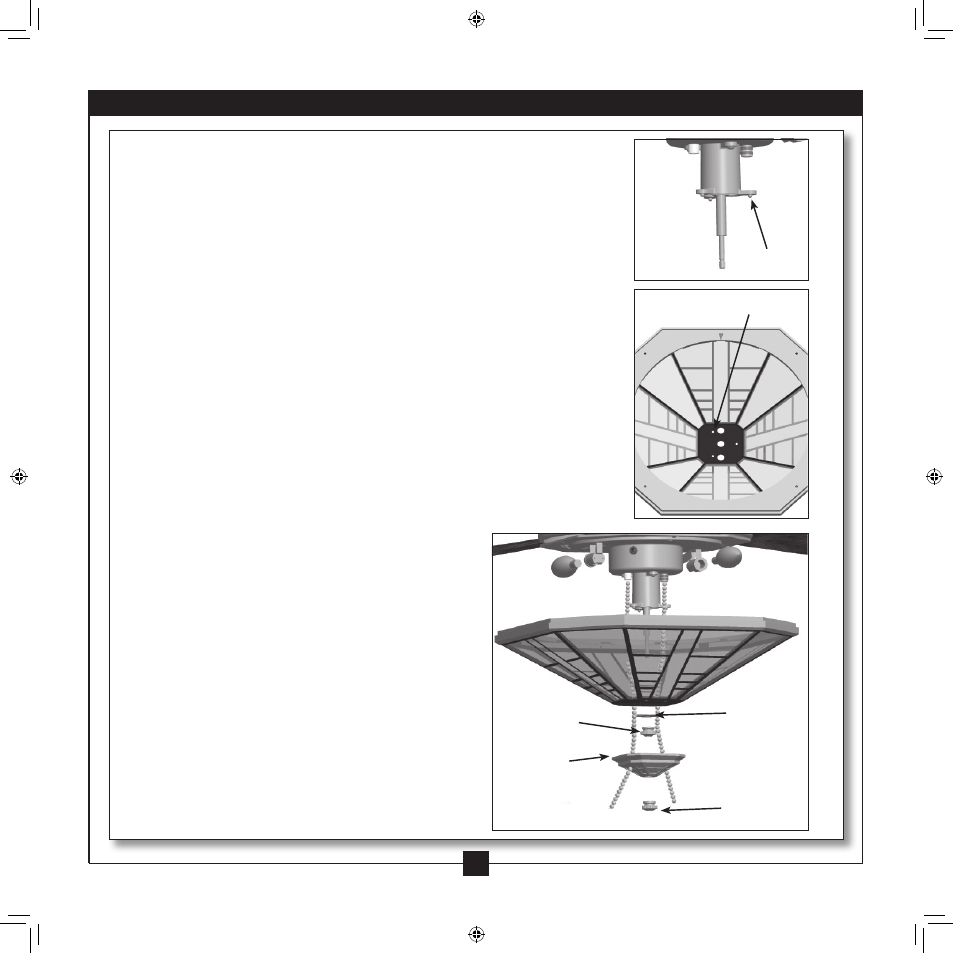

Installing the Glass Bowl
9-1. Locate the (3) pins at the bottom of the (3) flanges on the plastic
spacer.
9-2. Align the (3) pins with the (3) small clearance holes in the metal plate
at the bottom of the globe assembly. Make certain the (2) pull chains
are alinged with the (2) larger outboard holes in the metal plate.
9-3. Guide the threaded tube and both the chains through the larger holes
in the metal plate. Lift the globe until the metal plate in the bottom
of the globe bottoms out against the plastic spacer with the (3) pins
sticking through the small holes in the metal plate.
9-4. Keeping the globe in position, place the large flat washer over the
threaded tube and against the bottom of the globe. Thread the
assembly nut on the threaded tube, running it up tight against the
bottom of the washer. Tighten the nut very securely.
9-5. Assemble the finial to the bottom of the light fixture by guiding the (2)
pull chains and threaded tube through the (3) openings in the finial.
Assembly Nut
Metal Disc
Pins
Finial Cap
Finial
Clearance Holes
Step 9-1
Steps 9-3-9-5
Step 9-2
9 • Completing Your Installation With a Bowl Light Fixture
