13
41225-01 • 12/04/09 • Hunter Fan Company
3 • Assembling tbe Blades

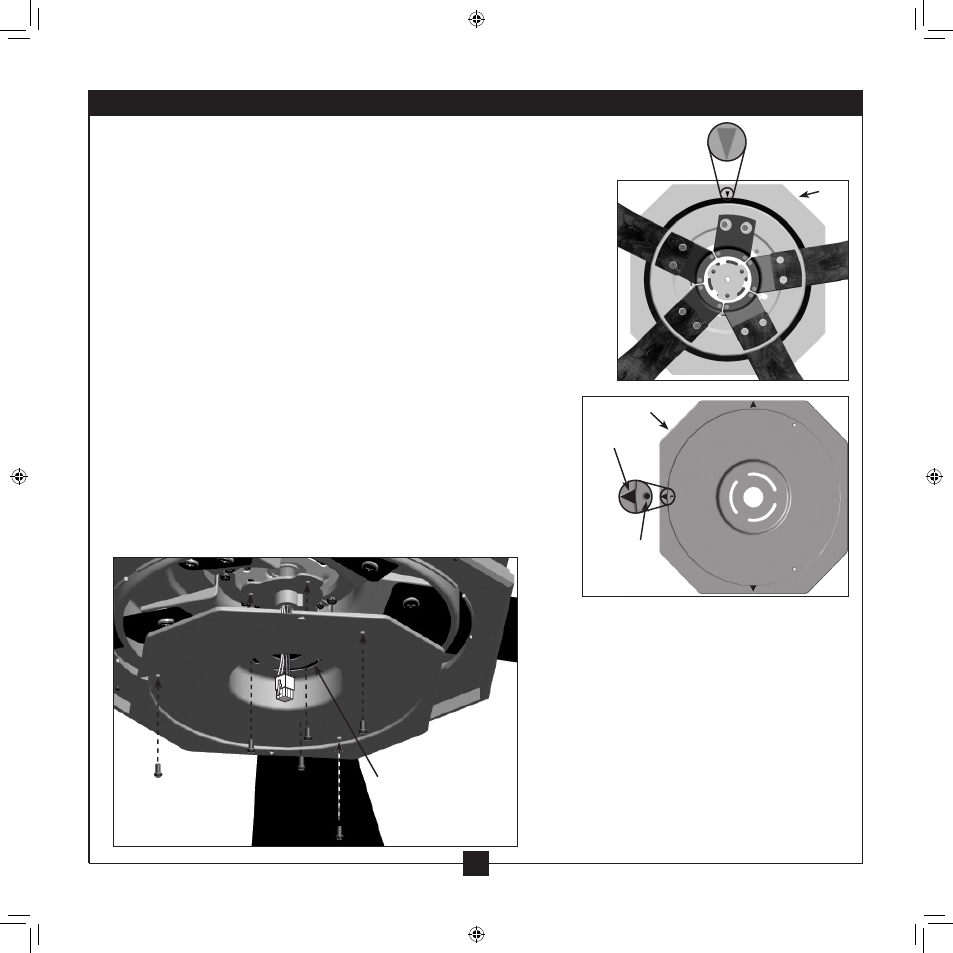

8-1. Looking up at the bottom of the fan trim. Locate the raised arrow on
the bottom of the trim. Before proceeding with the next step make
sure you’ve located the arrow.
Note: You may have to rotate the fan blades in order to see the
arrow.
8-2. The (8) sides of the fitter must be aligned with the matching (8) sides
of the fan trim. To orient the fitter locate the (3) arrow shaped holes
near the outer edges of the fitter.
8-3. Select the arrow which has a screw hole directly behind it, and align
this arrow with the arrow in the trim.
8-4. Thread the upper plug connector from the motor through the large
hole in the center of the fitter.
8-5. Check the (3) elongated slots in the top of the fitter to see if they are
aligned with the (3) mating screw holes in the fitter mounting plate.
If any of the screw holes in the mounting plate are covered by the
fitter, rotate the fitter ninety degrees either direction to allow access
to the (3) mounting holes in the mounting plate. Assemble the fitter
to the fitter mounting plate using (3) 3/8” long Phillips head screws
with lock washers. Tighten securely.
Fan
Trim
Fitter
Arrow Shaped
Hole
Screw Hole
Steps 8-4-8-5
Elongated
Slots
Step 8-1
Step 8-2
8 • Aligning the Fixture Fitter
