3. Copier Parts and Accessories
Cha
p
te
r 2
G
et
ti
n
g
to
Kn
ow
Y
o
ur
C
opi
er
Toner Bottle :Contains Toner. Replace it with a new one when the warning message
tells you to. ☞p. 5-6
Toner Bottle Holder : Swing open to replace the Toner Bottle. ☞p. 5-6
Misfeed Removal : Use to clear a misfed sheet of paper. ☞p. 5-12
Guide Unit
Misfeed Removal : Press down to pull out the Unit. ☞p. 5-12
Lever
Misfeed Removal : Use to clear a misfed sheet of paper. ☞p. 5-12
Knob
Duplex Unit : Slide out to clear a sheet of paper misfed in the Duplex Unit. ☞p. 5-14
Misfeed Removal : Use to clear a misfed sheet of paper. ☞p. 5-12
Knob
Misfeed Removal : Turn to clear a misfed sheet of paper. ☞p. 5-12
Knob

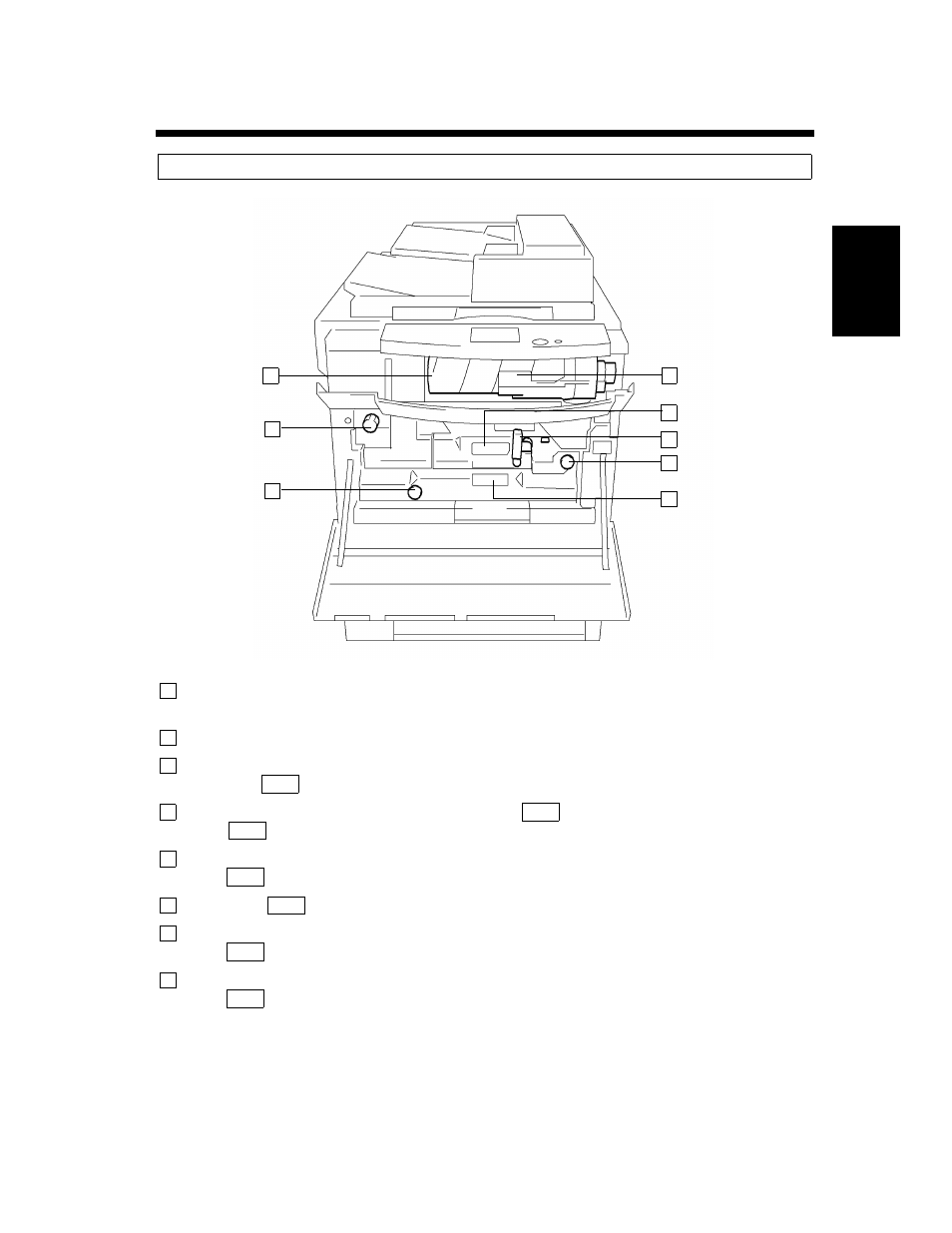

Inside the Copier
1
3
1155O018AA
4
5
6
2
8
7
1
2
3
M5
4 M5
M4
5
M3
6 D2
7
D1
8
M1
