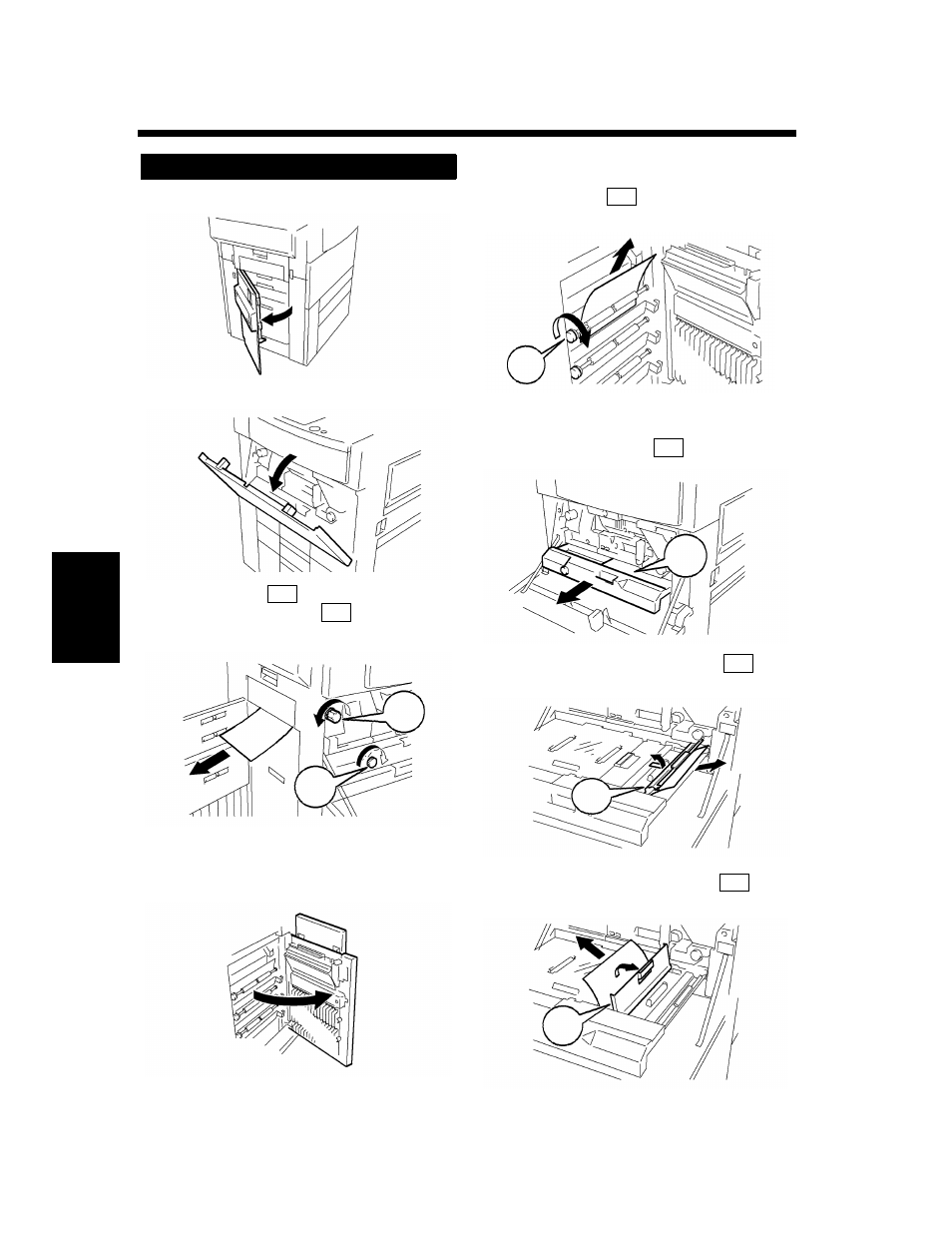

4. When the Message “A paper misfeed has been detected.” Appears
Cha
p
ter
5
Wh
en
a Mes
sa
g
e A
ppea
rs
Open the Left Door.
Open the Front Door.
Turning Knob , pull out the sheet of
paper. Then turn Knob to return any
paper to the Duplex Unit.
Close the Left Door.
Open the Right Door.
Turning Knob , pull out the sheet of
paper.
Close the Right Door.
Slide out Duplex Unit .
Raising Misfeed Clearing Guide ,
remove the sheet of paper.
Raising Misfeed Clearing Guide ,
remove the sheet of paper.
Duplex Unit
1
1155O076AA
2
1155O077AA
3 M1
D1
1155O078AA
M1
D1
4
5
1155O079AA
6 M2
1155O080AA
M2
7
8
D2
1155O089AA
D2
9 D3
1155O090AA
D3
10 D4
1155O091AA
D4
