16
Rear Panel Connections
Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is played •
back will be abnormal if the connection is loose.
Cable plugs are often color-coded. Match colors of plugs and terminals, i.e. connect red to red, white to white, etc. •
To return to the last channel viewed, select “0.TV” from the INPUTS menu. •
NOTES

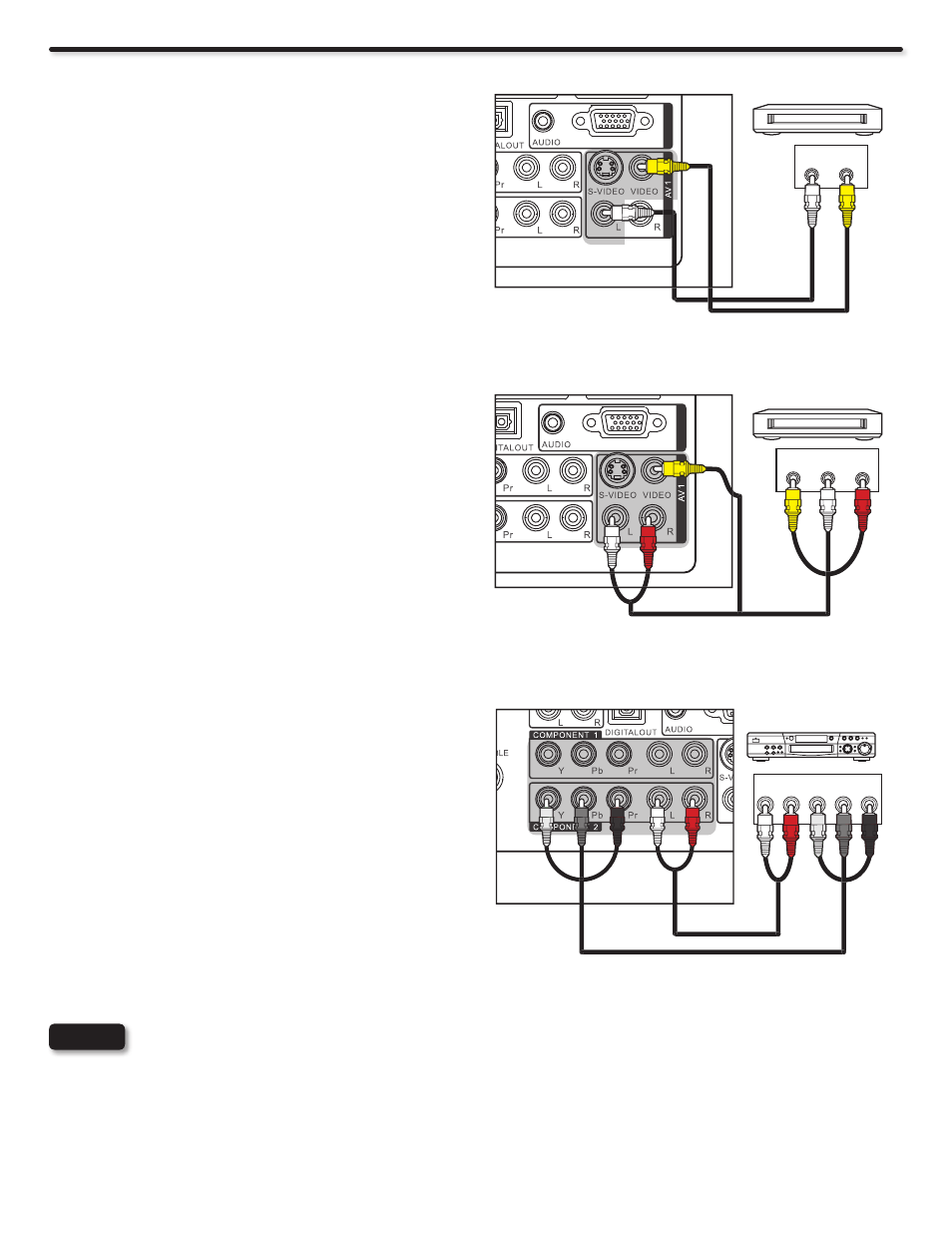

CONNECTING A COMPONENT AND STEREO AUDIO
SOURCE TO COMPONENT 1 or 2: YPbPr
Connect the Y, Pb/Cb, Pr/Cr and AUDIO cables from the 1.
Y, Pb/Cb, Pr/Cr OUT and AUDIO OUT jacks of the DVD
PLAYER or HDTV Set-Top-Box to the COMPONENT 1 or 2
YPbPr and AUDIO jacks. A DVD connection to Rear Panel
COMPONENT 2 example is shown on the right.
Press the INPUT button, then select 2. COMPONENT 1 or 2
from the INPUTS menu to view the program from the DVD
player or HDTV Set-Top Box.
CONNECTING A VIDEO AND MONAURAL AUDIO
SOURCE TO AV 1.
Connect the VIDEO and AUDIO cable from the VIDEO 1.
and AUDIO OUT jack of the VCR to the AV1 (VIDEO) and
L(AUDIO) jack, as shown on the Rear Panel on the right
Press the INPUT button, then select AV1 from the INPUTS 2.
menu to view the program from the VCR.
Select Audio menu, set Sound mode to “Custom”, and set 3.
“SRS Trusurround HD” to “On”.
CONNECTING A VIDEO AND STEREO AUDIO SOURCE
TO AV1.
Connect the VIDEO and AUDIO cables from the VIDEO OUT 1.
and AUDIO OUT jacks of the VCR to the AV1 (VIDEO)jacks.
A VCR connection to Rear Panel AV1 example is shown on
the right.
Press the INPUT button, then select AV1 from the INPUTS 2.
menu to view the program from the VCR.
RGB
RGB
OUTPUT
VIDEO AUDIO
TV REAR PANEL
VCR
(Y
ellow)
(White
)
RGB
RGB
OUTPUT
VIDEO L R
TV REAR PANEL
(Y
ellow)
(White
)
(Red)
VCR
TV REAR PANEL
de Dolby
Output
L R Y P R
Whit
e
Re
d
Green Blue Re
d
DVD Player/ Recorder
P B
