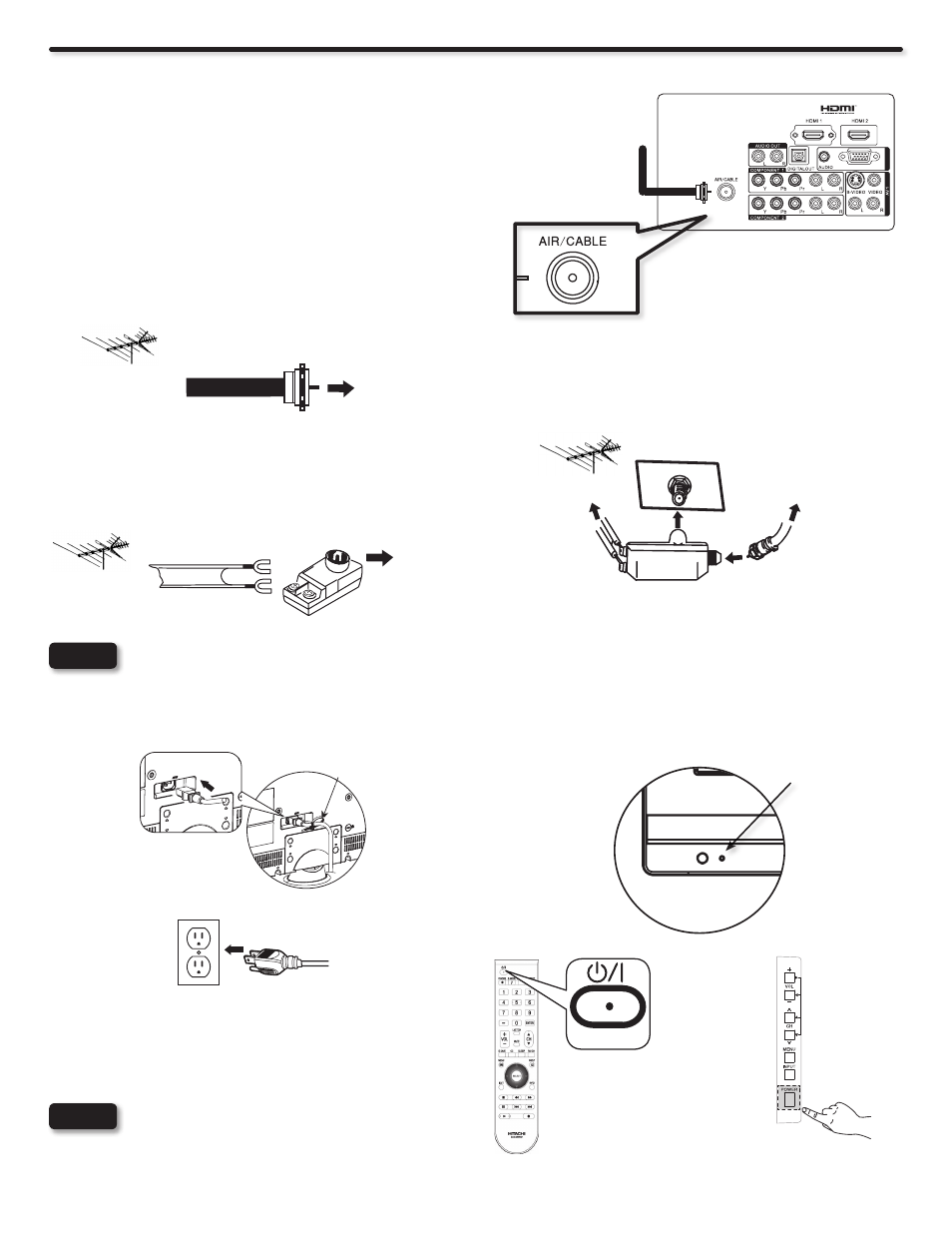

Quick Setup Guide

Perform the following steps to quickly setup your new

Hitachi LCD Television Set.

1. ANTENNA CONNECTION

Unless your LCD Television is connected to a cable TV system or

to a centralized antenna system, a good outdoor color TV antenna

is recommended for best performance. However, if you are located

in an exceptionally good signal area that is free from interference

and multiple image ghosts, an indoor antenna may be sufficient.

VHF (75-Ohm) antenna/CATV (Cable TV)

a).

When using a 75-Ohm coaxial cable system, connect the CATV

coaxial cable to the AIR/CABLE (75-Ohm) terminal. Or if you have

an antenna, connect the coaxial cable to the same AIR/CABLE

terminal.

To outdoor Antenna

Cable TV (CATV)

System

To Antenna

Terminal

VHF (300-Ohm) antenna/UHF antenna

b).

When using a 300-Ohm twin lead from an outdoor antenna,

connect the VHF or UHF antenna leads to screws of the VHF or

UHF adapter. Plug the adapter into the antenna terminal on the

TV.

To outdoor VHF or

UHF Antenna

To Antenna

Terminal

Connecting a 300-Ohm twin lead connector may cause interference. Using a 75-Ohm coaxial cable is recommended.

NOTE

Rear Panel Jack

Connect the power cord to your TV set and secure it

a).

with the cable tie (see page 7) .

Connect the power cord to the AC wall outlet .

b).

When both VHF and UHF antennas are connected

c).

Attach an optional antenna cable mixer to the TV antenna terminal

and connect the cables to the antenna mixer. Consult your dealer

or service store for the antenna mixer.

To outdoor antenna

or CATV system

To UHF antenna

Antenna Mixer

Air/Cable

The Indicating Lamp will light red (Standby mode) and

c).

then light blue (image displays).

POWER

2. CONNECT YOUR NEW HITACHI LCD TV TO THE POWER SOURCE

3. POWER ON/OFF YOUR NEW HITACHI LCD TV.

Press the POWER button on the Remote Control or the

POWER button on the Side Control Panel to power on/off

the LCD TV.

4. FOLLOW THE TV SETUP WIZARD INSTRUCTIONS ON NEXT PAGE.

Air/Cable

For Stand-By

Power OFF

Indicating

Lamp

If the Indicating lamp is OFF, the Power Button on

the

Remote Control will not operate. Please make sure

NOTE

AC Wire Clamp

RGB
