Rear panel connections, Fir st time use – Hitachi 50HDA39 User Manual
Page 9
9
Fir
st time use
RF OUT
DVD Player/Satellite receiver
RF IN
RF OUT
Satellite IN
S-VIDEO
OUTPUT
L
R
VIDEO
INPUT
OUTPUT
L
R
VIDEO
L
R
VIDEO
Stereo VCR

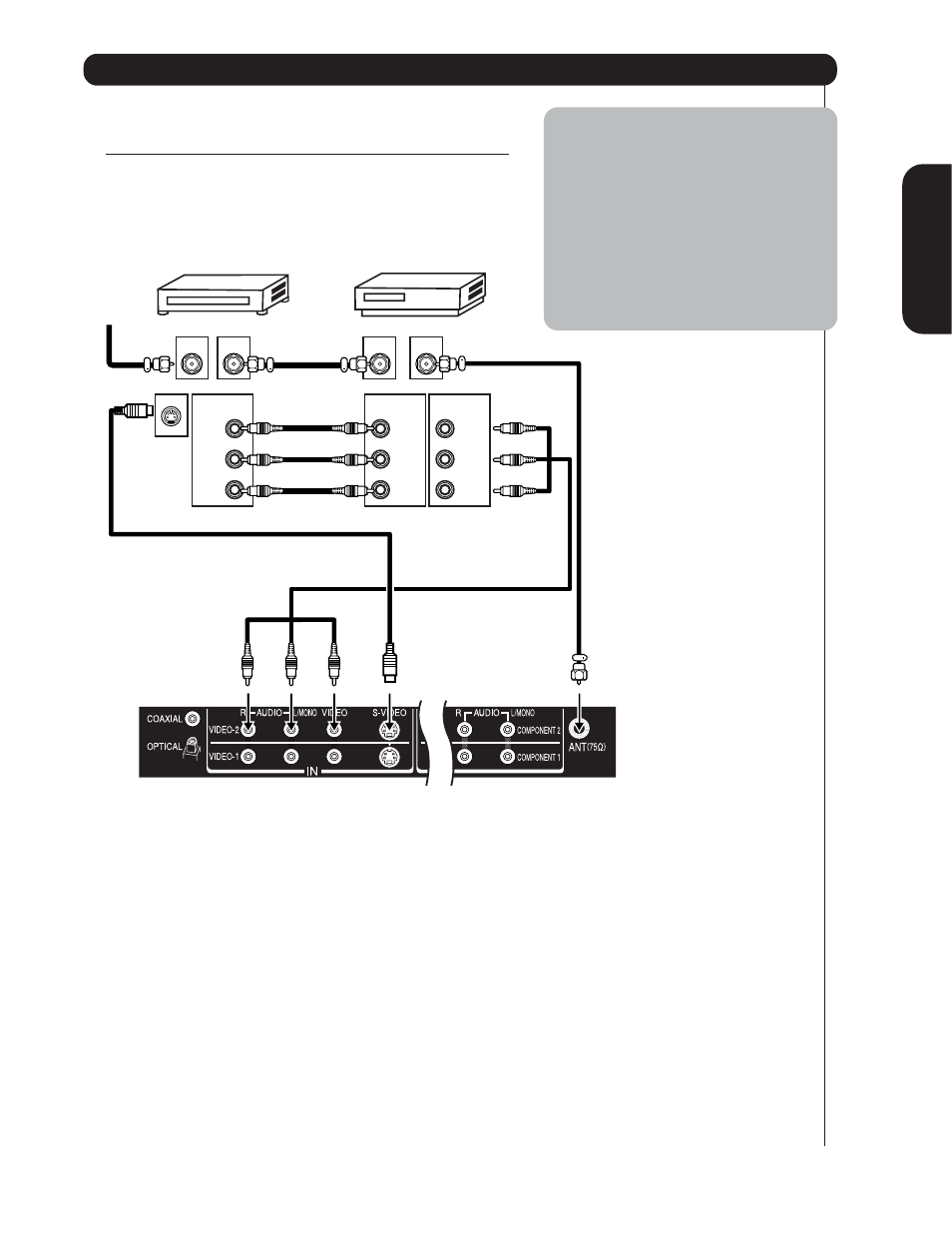

Connecting a DVD player/satellite receiver
and a VCR
This connection allows you to watch DVD/satellite, VCR, or TV
programs. You can record from the satellite receiver and TV, as
well as record one TV channel while watching another channel.
TV back panel
From satellite
Rear Panel Connections
Note:
You can use a standard video cable
instead of the S-video cable, but the
picture quality will decrease. If you use an
S-video cable between the TV and DVD
player/satellite receiver, make the audio
connections but remove the standard
video cable. Do not connect both an S-
video and a standard video cable to
VIDEO-1 (or VIDEO-2) at the same time
or the picture performance will be unac-
ceptable.
