BAGGER CART ASSEMBL Y

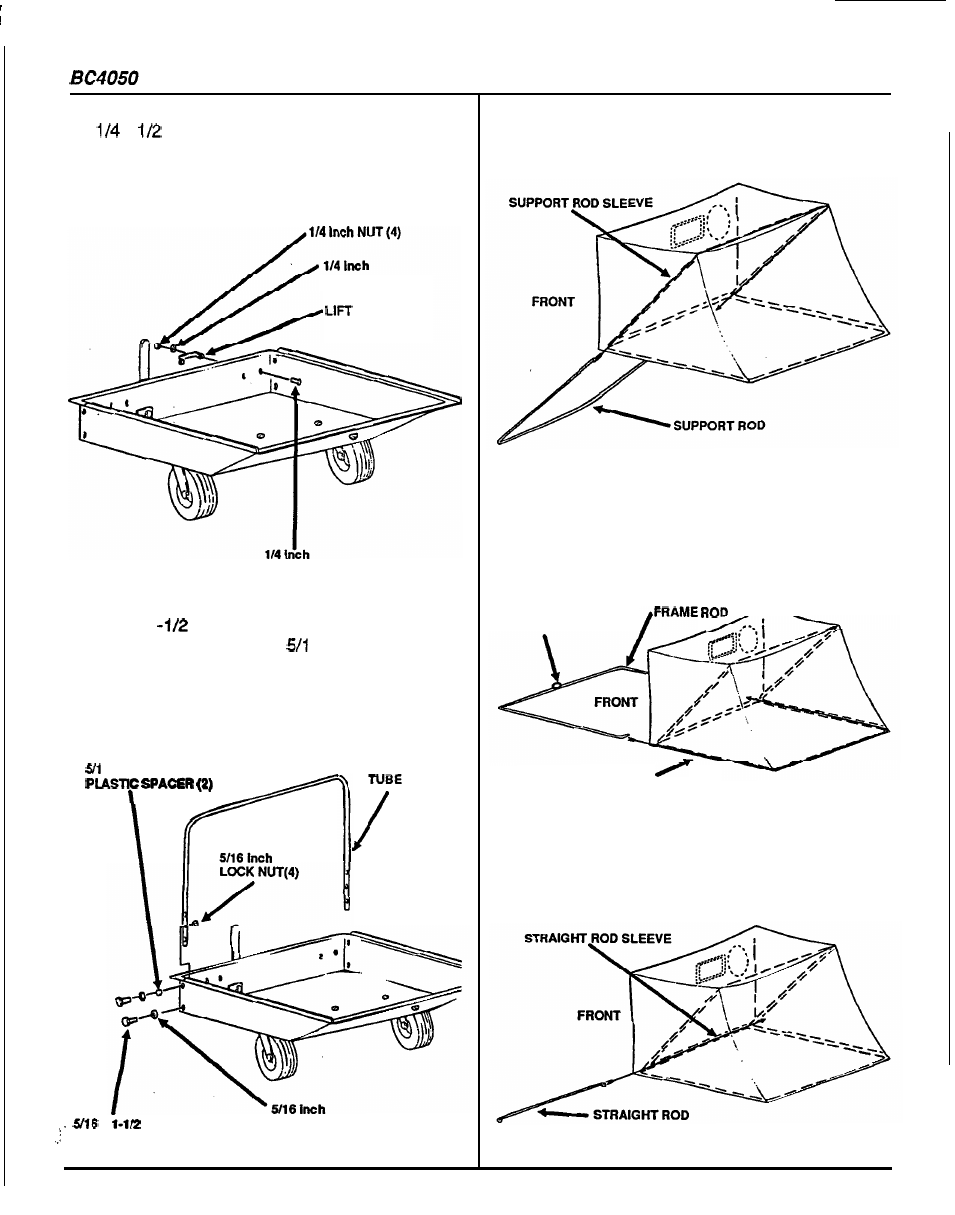

6. Install the lift handles, using four
x inch pan-head screws, four 1/4 inch
lock washers, and four 1/4 inch nuts. .
Tighten the nuts and screws securely.
LOCK WASHER (4)
HANDLE
PAN-HEAD SCREW
7. Install the support tube, using four
5/16 x 1 inch hex bolts, two 5/16 inch
plastic spacers, and four 6 inch lock nuts.
Place the plastic spacers only on the upper
bolts, as shown.
Tighten the nuts and bolts securely.
6 Inch SUPPORT
x inch
HEX BOLT (4)
FLAT WASHER (4)
8. Thread the three rods through the cover:
a.) Thread the support rod through the support
rod sleeve as shown.
b.) Thread the frame rod through the frame rod
sleeve as shown. Be sure to position the
frame rod so the washer is on the upper
side.
Washer on upper
side of rod
-
FRAME ROD SLEEVE
c.) Thread the straight rod through the straight
rod sleeve as shown.
