31-2000693 Rev. 3
Installation Instructions

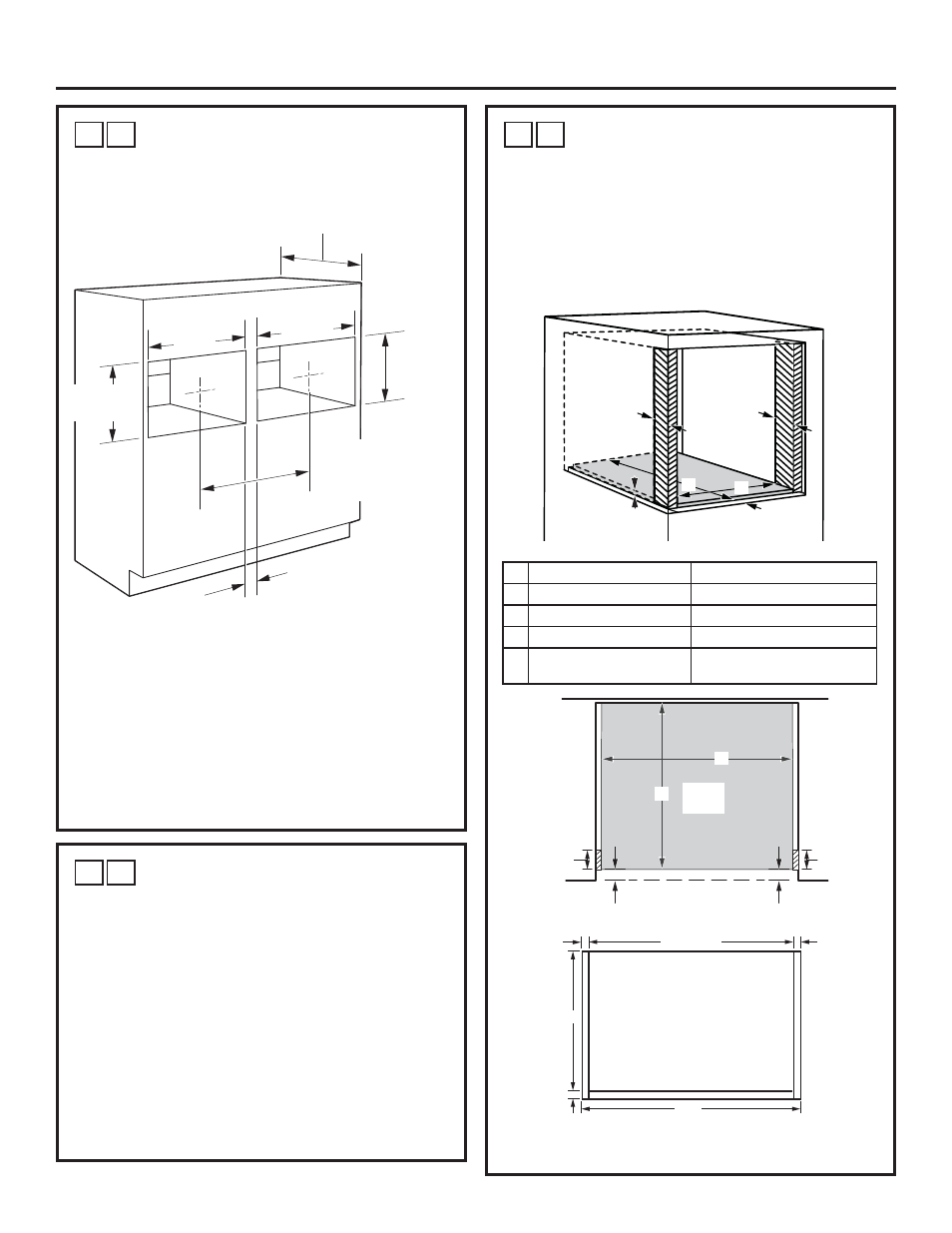

2 G CUTOUT FOR STEAM OVEN
BESIDE ANOTHER BUILT-IN STEAM
OVEN/BUILT-IN SPEEDCOOK OVEN:
Ŷ If you are mounting a Built-In Steam Oven beside a
Built-In SpeedCook Oven or another Built-In Steam
Oven, use the dimensions shown. The middle rail
separating the two openings may need to be larger
than the 4-1/2
Ǝ minimum shown.
When installed beside a Built-In SpeedCook Oven
or another Built-In Steam Oven:
Steam ovens are
suitable for installation under only certain specified
appliance models. See the label attached to the
outside of the steam oven for suitable models.
2 H FLUSHMOUNT
INSTALLATION PREPARATION
(Cont.)
Install onto the cabinet floor between the side
cleats, push it all the way back against cabinet
wall and make sure its front face aligns with the
front faces of the side cleats (E gap from the front
cabinet face).
A Side cleats depth 2-1/2” min.
B Bottom cleat height 5/8”
C Bottom cleat depth Cabinet depth minus E
D Bottom cleat width 25-1/4”
E All three cleats inset
from cabinet front ZMB9032: 1 7/16”
ZMB9031: 1 3/8”
2 H FLUSHMOUNT
INSTALLATION PREPARATION
PREPARE THE INTERIOR
Cut and install side cleats:
Ŷ Cut side wood cleats to height of cabinet opening
and approx. 2-1/2” in depth. Install, on each side,
1-1/2” from the front face of the cabinet.
Cut and install bottom cleat:
Ŷ Cut bottom wood cleat to a height of 5/8” minimum,
a depth of the cabinet minus 1-1/2” and a width
of the cabinet opening (30”) minus two side cleat
thicknesses (minimum 1/2” each) - 25 1/4” minimum
(29” if using 1/2” side cleats).
E
C
B
D
A A
TOP
VIEW
Front Face of Cabinet
E E
A A
C
D
25-1/4” min
Front View
1/2” min
5/8” min
1/2” min
30”
18-3/4”
25-1/4 Ǝ
17-1/2 ƎPLQ
ƎIRU
Steam Oven
23-1/2 Ǝ
17-1/2 ƎPLQ
ƎIRU
Steam Oven
4-1/2” Min.
(5-1/2” Recommended)
25-1/4 Ǝ
30-1/2” Min between
Centerlines of cutouts
of steam oven next to
steam oven/speedcook
oven
