6
31-2000693 Rev. 3
Installation Instructions

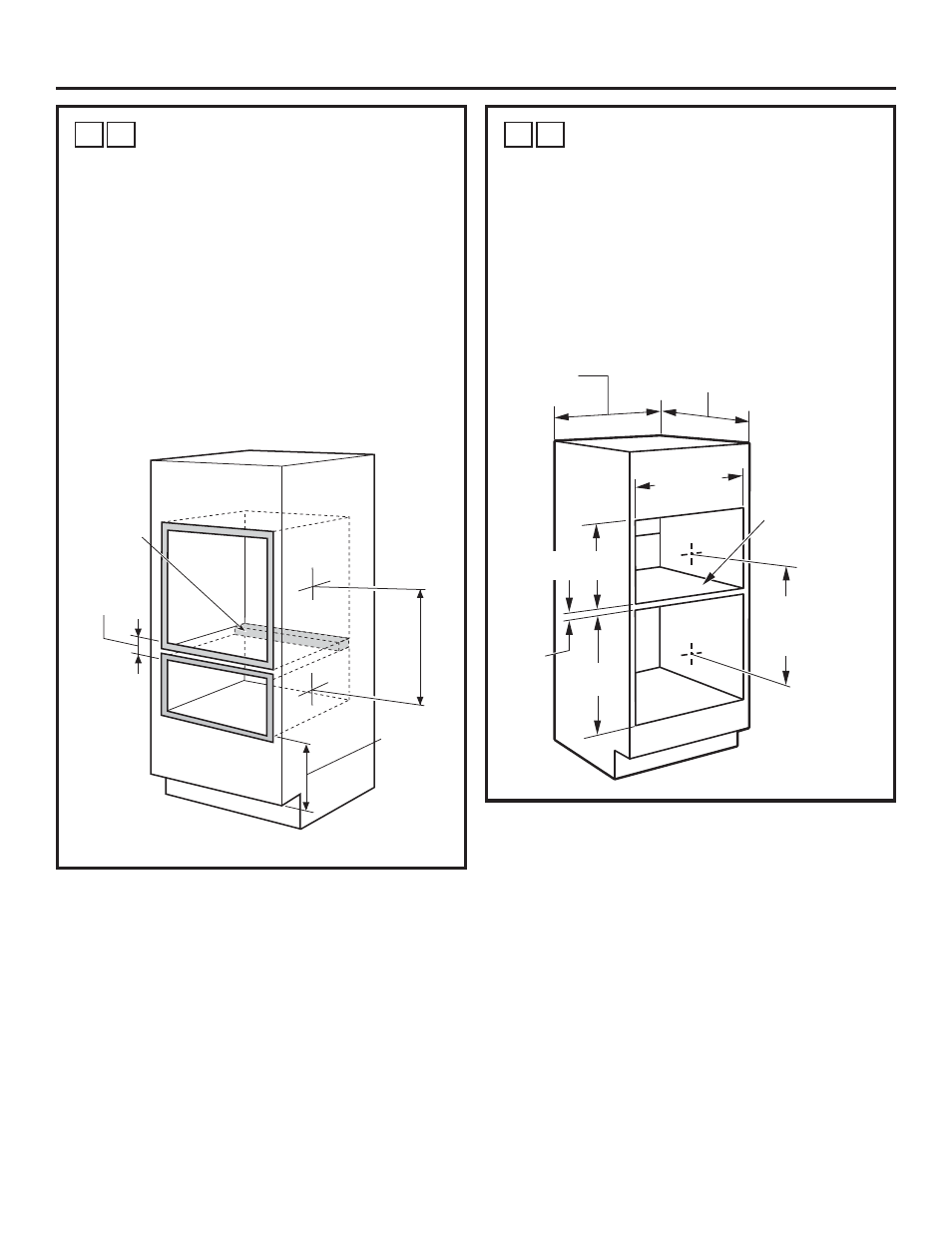

2 C CUTOUT FOR STEAM OVEN
OVER A WARMING DRAWER
NOTE: Install the steam oven only with specific
models listed on the label located on the outside of
the oven.
NOTE: Additional clearances between cutouts may be
required. Check to be sure the steam oven supports
above the Warming Drawer location do not obstruct
the required interior depth and height.
When installing a Warming Drawer below a steam
oven, a separate 120V, 60 HZ, properly grounded
receptacle must be installed. Refer to installation
instructions packed with the Warming Drawer for
specific installation requirements.
2 D CUTOUT FOR STEAM OVEN
OVER A WALL OVEN
Ŷ,I\RXDUHUHSODFLQJDQHOHFWULFGRXEOHRYHQZLWKWKH
combined installation of a built-in steam oven and a
single oven, use the dimensions shown. The middle
rail separating the two openings may need to be
larger than the 1-3/4” minimum shown.
When installed over a wall oven: Steam ovens are
suitable for installation above only certain specified
wall oven models. See the label attached to the
outside of the steam oven for suitable models.
Anti-Tip Block
Against Rear
Wall Per
Warming
Drawer
Requirements
Per Warming
Drawer
Requirements
1-3/4”
(4.4 cm) Min.
30”
23-1/2”
25-1/4”
17-3/4”
(17-1/2 min)
1-3/4”
(4.4 cm)
Min.
Construct Solid
Bottom Min.
3/8” Plywood
Supported by
2x4 or 2x2
Runners aall
Four Sides
Per Oven
Requirement
24 3/8” min between
centerline of cutouts
of steam oven over
wall oven
