59
4. Select [SUB1 INPUT] using the
▼
/
▲
buttons, and press the
ENTER button.

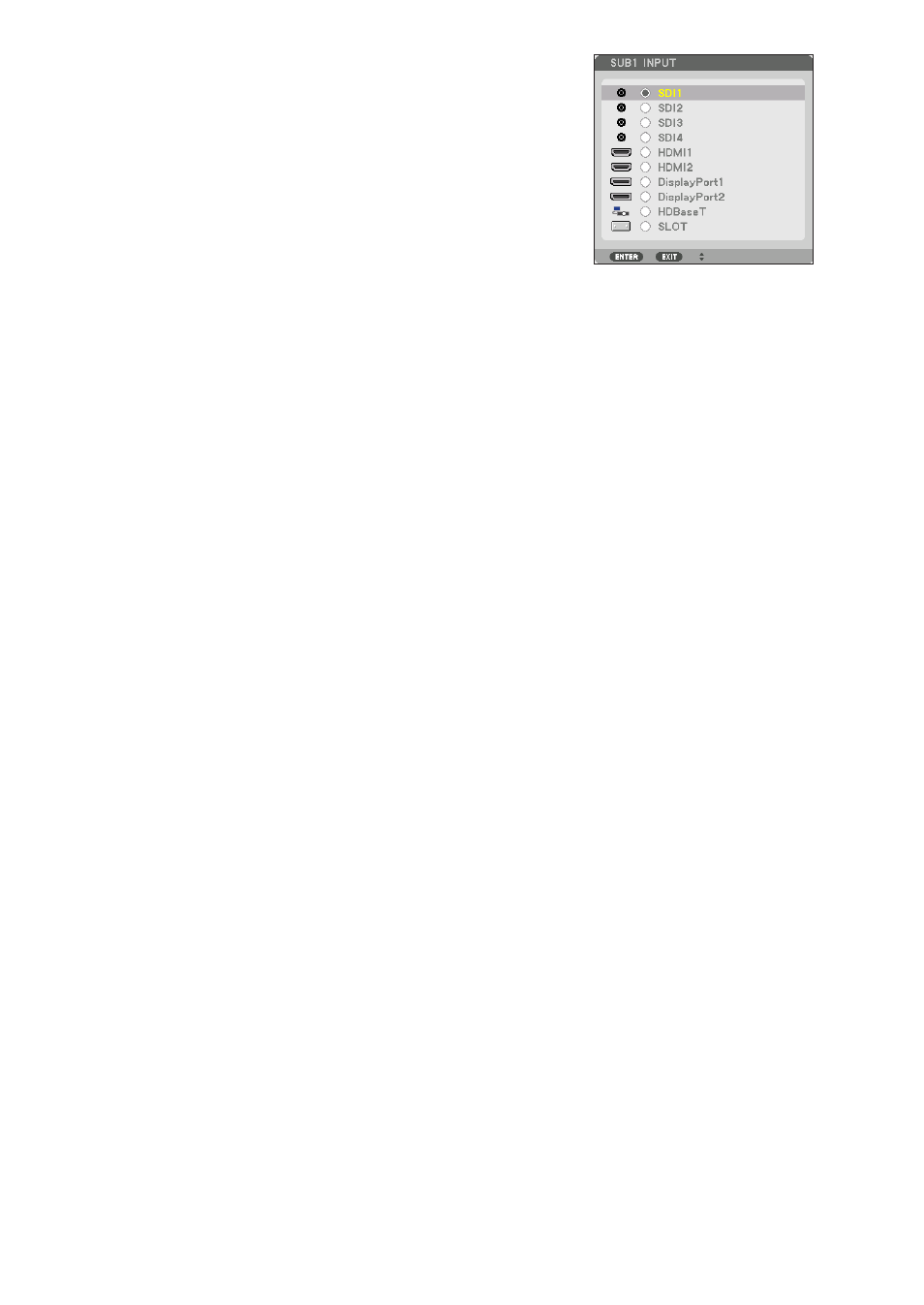

This displays the [SUB1 IMPUT] screen.
5. Select an input signal for SUB 1 using the
▼
/
▲
buttons and
press the ENTER button.
The display returns to the PICTURE BY PICTURE screen.
6. Perform the same steps as 4 and 5 to select input signals for
SUB2 and SUB3.
7. Press the MENU button.
The on-screen menu will disappear.
• To return to a single screen, select [OFF] from the MODE select screen in Step 3.
TIP:
• To project two screens, select [DUAL] in the step 3, and select the input signal for SUB1 in the steps 4 and 5.
• In the case of projecting two screens, you can set the orientation of screen to the portrait position or adjust the display position.
(
→
page
,
Restrictions
• The following operations are enabled only for the main display.
• Visual adjustments
• TEST PATTERN
• The following operations are enabled for MAIN, SUB1, SUB2, and SUB3. These operations cannot be applied
individually.
• Momentary deletion of video (AV Mute)
• Video pause (Freeze)
• In the following cases, PICTURE BY PICTURE cannot be used.
• When displaying 3D images
• When [PICTURE SETTING]
→
[MODE] is set to [ZOOM] or [TILING]
• When MAIN is set to SDI1 and [SDI LINK] is set to other than [SINGLE]
• When MAIN is set to DisplayPort 1 and [DP LINK] is set to [DUAL]
• The following operations cannot be made when [PICTURE BY PICTURE] is used.
• Video magnification / demagnification using the partial D-ZOOM/ZOOM +/− buttons.
• DYNAMIC CONTRAST
• IMAGE OPTIONS (when MODE is set to [DUAL] and [PORTRAIT ANGLE] is set to [90°] or [270°])
• ASPECT RATIO, NOISE REDUCTION (when MODE is set to [QUAD])
