2. Projecting an Image (Basic Operation)

❺

Selecting a Source

Selecting the computer or video source

NOTE: Turn on the computer or video source equipment connected to the projector.

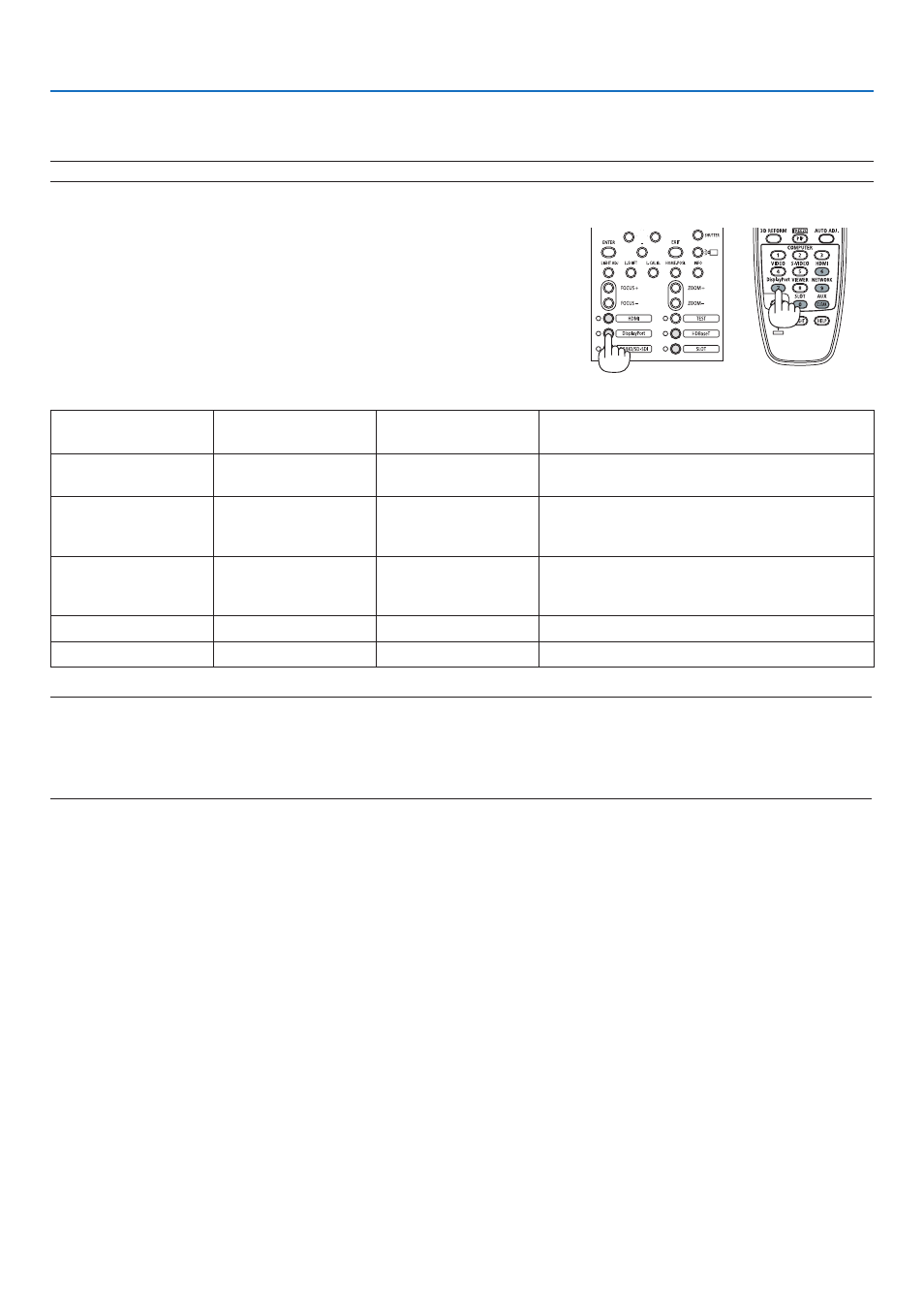

Using the Direct button

Press the Direct button on the projector cabinet or remote control.
Select the input according to the connection terminal.

Input connector

Button on the projector

cabinet

Button on the remote

control

Note

HDMI1/2 IN

HDMI

Switches between HDMI1 and HDMI2 each time
it is pressed.

DisplayPort 1/2 IN

DisplayPort

• Switches between DisplayPort1 and Display-

Port2 each time it is pressed.

• Select DisplayPort1 for dual link.

SDI 1/2/3/4 IN

3G/HD/SD-SDI

AUX

• Switches between SDI1, SDI2, SDI3 and SDI4

each time it is pressed.

• Select SDI1 for quad link or dual link.

HDBaseT

NETWORK

—

SLOT

—

NOTE:

• The indicator next to each button on the main unit operation area operates as follows.

When a signal is input: lights up in white.

* For SLOT, this is when optional boards (sold separately) are installed and the power is on.

When an input is selected: lights up in green.
