CLP-115

Keyboard Stand Assembly

ENGLISH

29

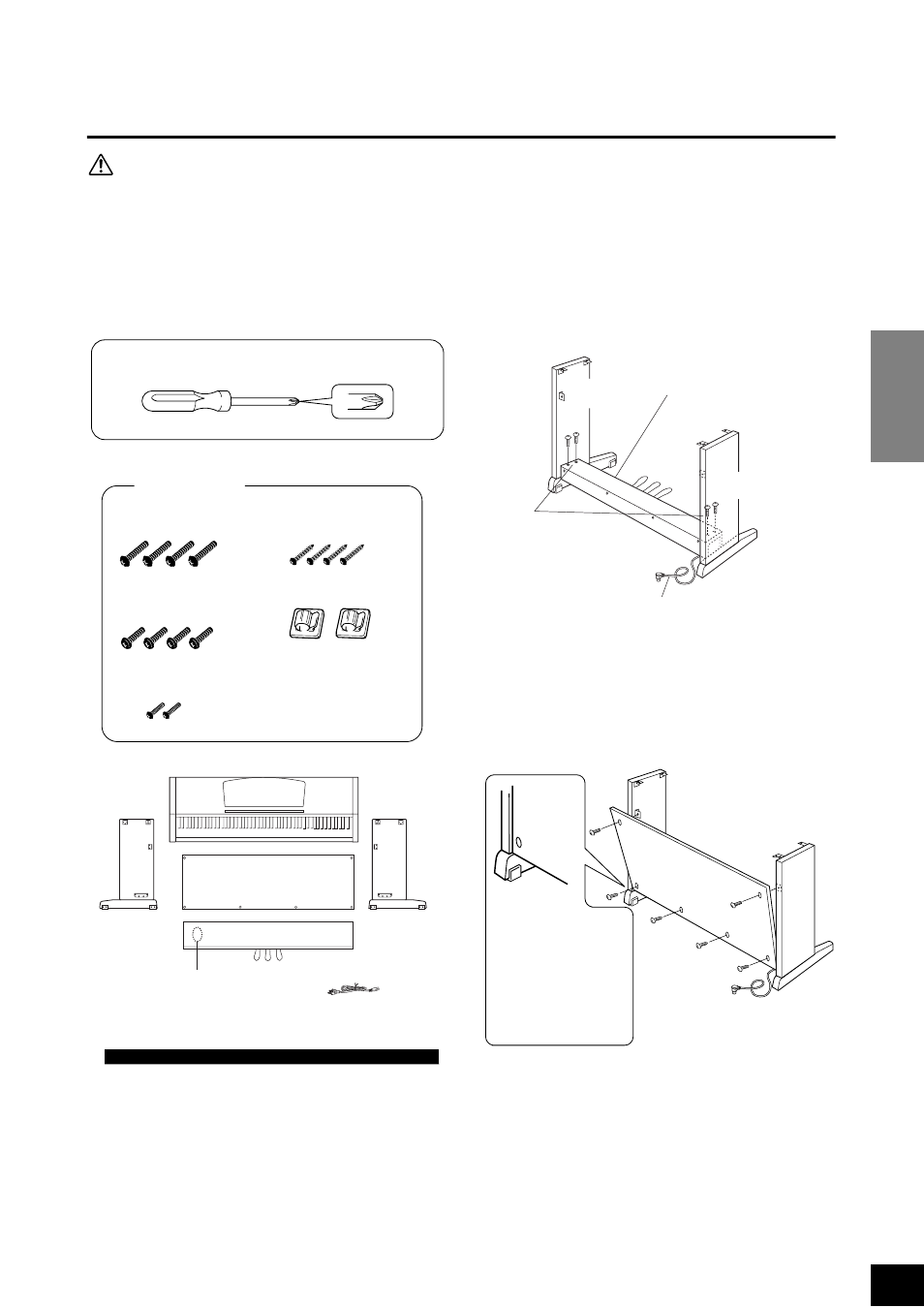

Keyboard Stand Assembly

CAUTION

• Be careful not to confuse parts, and be sure to install all parts in the correct direction. Please assemble in accor-

dance with the sequence given below.

• Assembly should be carried out by at least two persons.
• Be sure to use the correct screw size, as indicated below. Use of incorrect screws can cause damage.
• Be sure to tighten up all screws upon completing assembly of each unit.
• To disassemble, reverse the assembly sequence given below.

Remove the following parts from the package.

1.

Attach the side panels to the pedal box.

2.

Attach the rear panel.

TIP

A headphone hanger is included in the CLP-115 package.
You can attach a headphone hanger on the CLP-115 to hang
the headphones (page 12).

Have a Phillips-head (+) screwdriver ready

Assembly Parts

6

× 20 mm long screws Ч4

1

4

Ч 12 mm thin screws ×2

3

Cord holders

Ч 2

6

Ч 16 mm short screws Ч4

2

4

Ч 20 mm tapping screws ×4

4

Pedal box

Rear panel

Main unit

Side

panel

(left)

Side

panel

(right)

Bundled pedal
cord inside

AC power cord

L

Side panel

(right)

Side panel

(left)

(1) Untie and straighten out the bun-

dled cord attached to the bottom
of the pedal box.
Don’t discard the twist tie, you’ll
need it later in step 5.

(3) Use the four

6×20 mm long
screws 1 to
attach the
pedal box.

(2) Align the sides of the

pedal box with the left and
right side panels.

R

L

(1) Secure the top of the

rear panel to the side
panel brackets using
two 4×12 mm thin
screws 3.

(2) Secure the bottom of the

rear panel to the pedal box
using four 4×20 mm tapping
screws 4.

Place the bottom edges
of the rear panel on the
feet’s protruding edges,
with the panel slightly
angled as shown in the
illustration.
