Radial Winch
60.2 ST
Installation and Maintenance Manual
Carry out
Installationprocedure (page 5) as shown in the paragraph on winch installation and
then do the following:

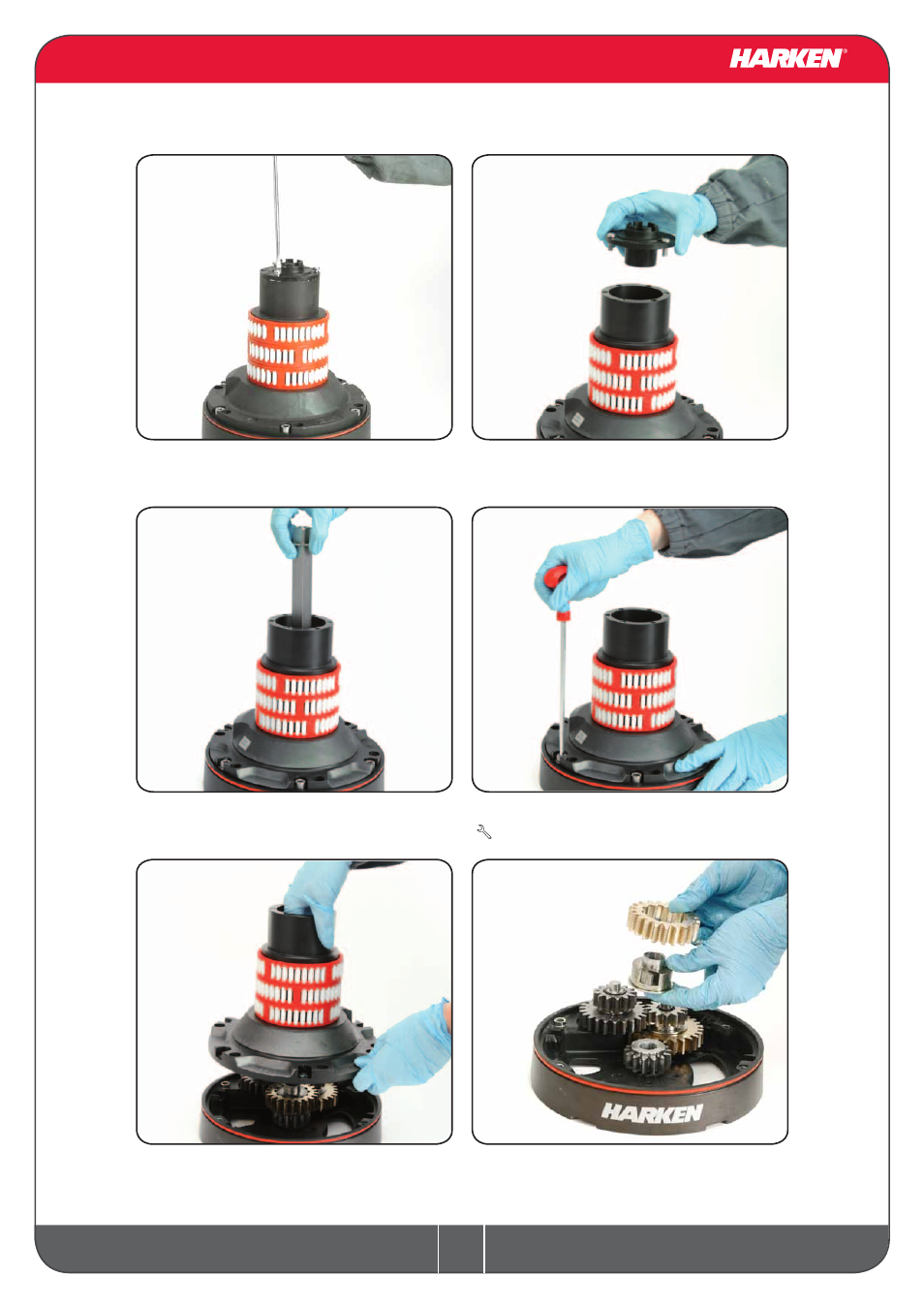

11. Remove the gear n°6, pawls n°3 and the
washer n°7
8. Slide out the central shaft n°19
9. Unscrew the 6 hex screws n°17
( 20Nm/177 in-lb)
10. Remove the drum support n°16
Important: washer n°7 may remain inside the
drum support!
6. Completely unscrew the three screws n° 28
7. Remove the stripper arm housing n°21
