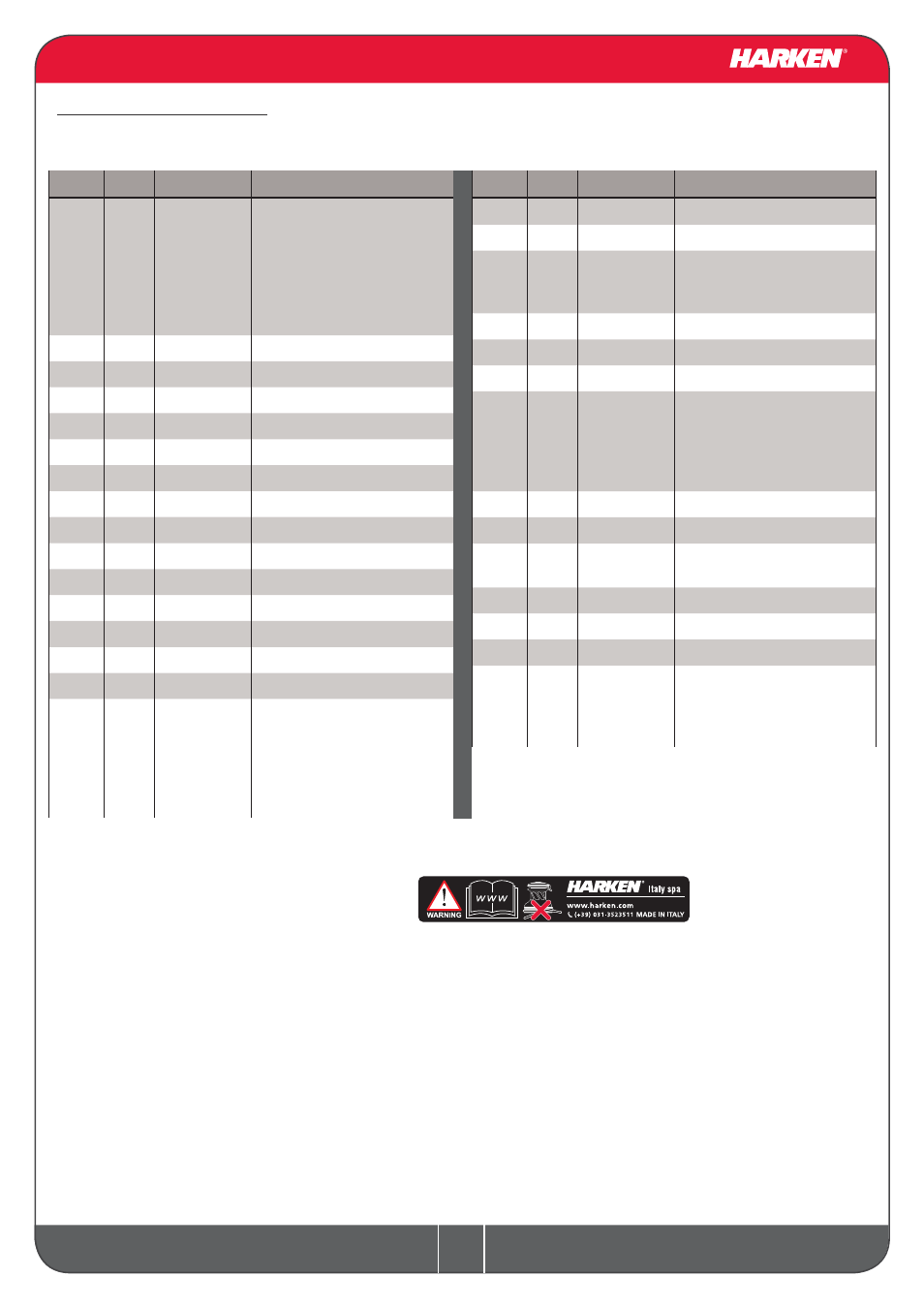

18 Radial Winch 60.2 ST Installation and Maintenance Manual
RadialWinch60.2STC
C=drum in chromed bronze
*Servicekitavailable;seewinchkitsectiononthewebsitewww.harken.com
**Winchproductsticker
Pos. Q.ty Code Description
1 1 A 941430 00 Assy Base W60
Base W60
Heli-coil M8x10
Centering bushing Ø12
Bushing Ø22xØ25x9.5*
Bushing Ø12xØ35x9*
Winch Product Sticker**
2 1 S 41440 00 04 Gear Z14 W60
3 1 S 41303 00 04 Pawls Carrier Ø8xN2
4 6 S 00008 00 03 Pawl Ø8
5 6 S 00038 00 01 Pawl Spring Ø8
6 1 S 41439 00 41 Rachet Gear Z21xN2
7 1 S 41312 00 02 Washer Ø22.5xØ45x1*
8 1 S278170002 Washer 12.5x48x1.5*
9 1 S 28101 00 04 Pin for gear
10 1 S 41442 00 41 Rachet Gear Z26xN4
11 1 S 41441 00 04 Pawls Carrier Gear Z13 N4
12 2 A72821800 Roller Bearing 14/20/18
13 1 S 41603 00 04 Gear Pin Ø12xØ18x52,5
14 1 S 41448 00 04 Idler and Pinion Z23/Z13 W60
15 2 A 741623 00 Roll bearing 24x18x18
16 1 A 941431 00 Assy Housing W60.2
Housing W60
Bushing Ø12xØ35x9
Heli-coil M6x9
Support Bushing W60
Bushing Ø22xØ25x8.5*
Pos. Q.ty Code Description
17 6 M0606303 Screw M8x25 UNI 5931
18 3 A 741450 00 Roller Bearing Ø95xØ107x26*
19 1 A 941438 00 Assy Shaft W60
Central shaft W60 ST
Washer Ø17.2xØ32x1.5
20 1 S 41876 00 63 Winch Serial Number Sticker
21 1 S 41443 00 A0 Stripper Arm Housing W60
22 1 S 28170 00 97 Red line
23 1 A 941435 00 Assy Jaws W60
Lower Jaw W60
Upper Jaw W60
Peeler W60
Spring
24 1 A 741434 00 Drum C Assembly W60
25 47 M 06102 80 Ball 5/16"*
26 4 M0601803 Screw UNI EN ISO 1207:1996 - M6x35
- A4*
27 1 S 41446 00 19 Stripper arm W60
28 3 M0601903 Screw M6x16 UNI1207*
29 1 S 41622 00 B1 Cover 2 Speed W60
30 1 A94136400 Assy Socket W60
Socket Handle W60
Washer Ø7.7xØ25x5.8
Screw M8x20 UNI 6109*
