5 Radial Winch 60.2 ST Installation and Maintenance Manual
To install the winch you must remove the drum
and use Socket Head (SH) bolts.
Tools needed:
One medium flat-bladed screwdriver
To identify the various parts, refer to the
exploded view at the end of this Manual.
Torque to apply when assembling

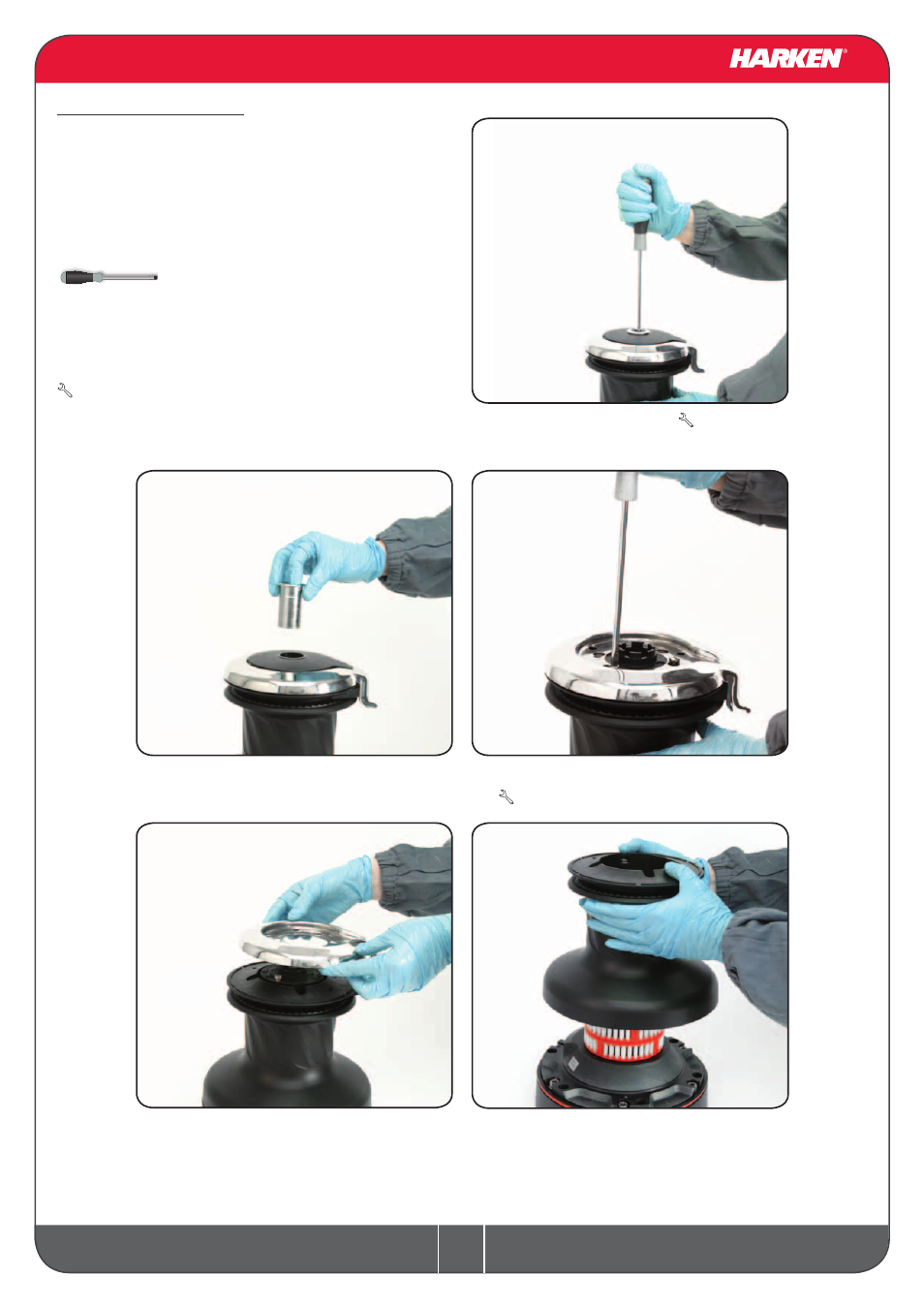

InstallationProcedure
1. Unscrew the central screw ( 2Nm/18 in-lb)
2. Slide off the assy socket n°30 and the cover
29
3. Unscrew the three screws n°28
( 4Nm/35 in-lb)
4. Remove the self-tailing arm n°27 by rotating
and lifting it.
5. Lift off the drum n°24
Install the winch on the deck in the position you have chosen, keeping in mind
the limits described on page 4 and using socket head (SH) bolts.
